Lattice Chandelier

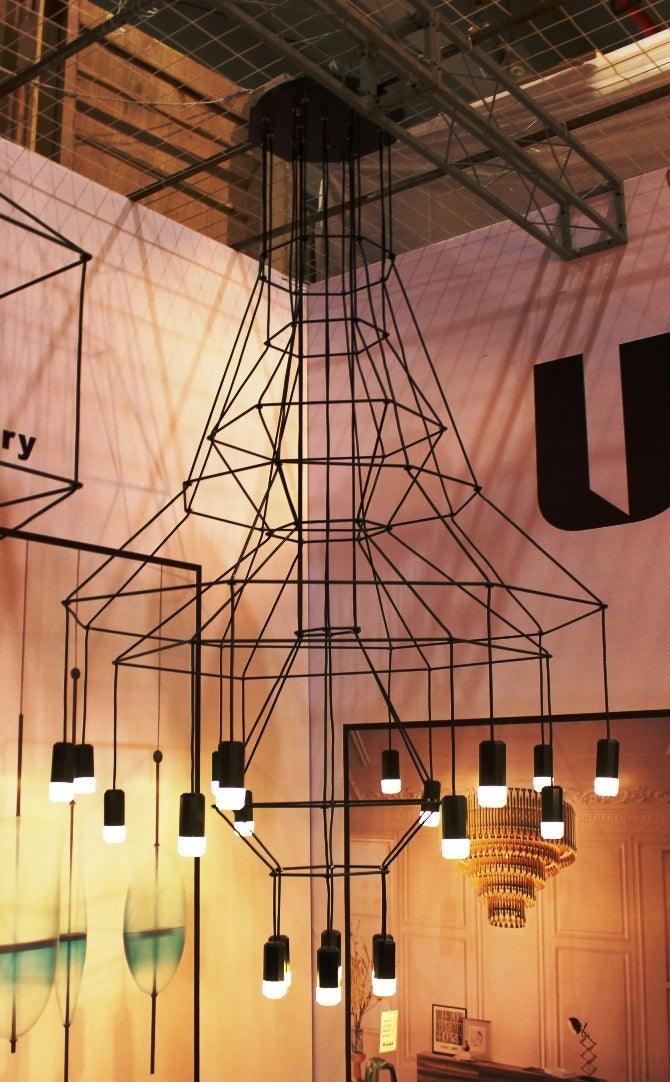

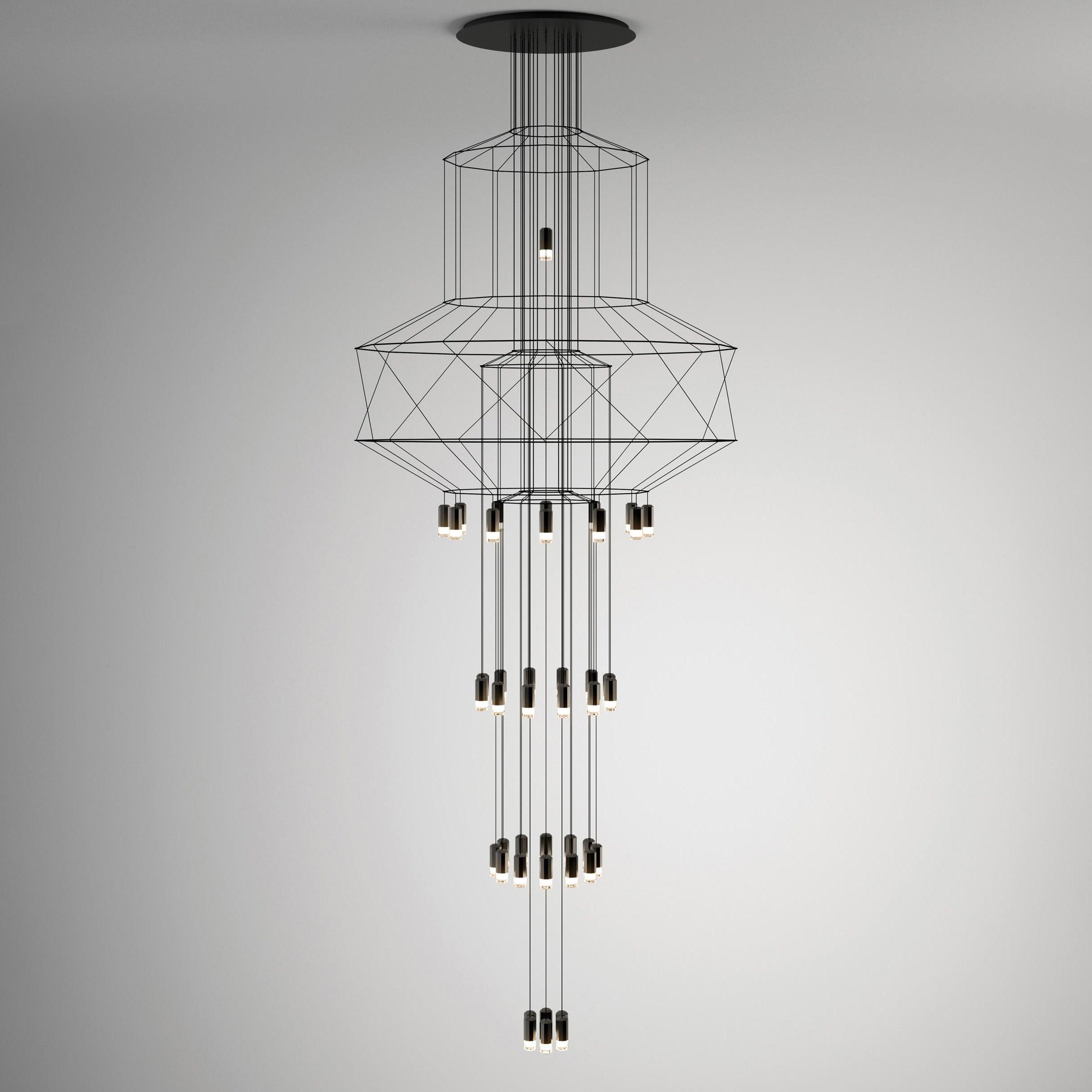

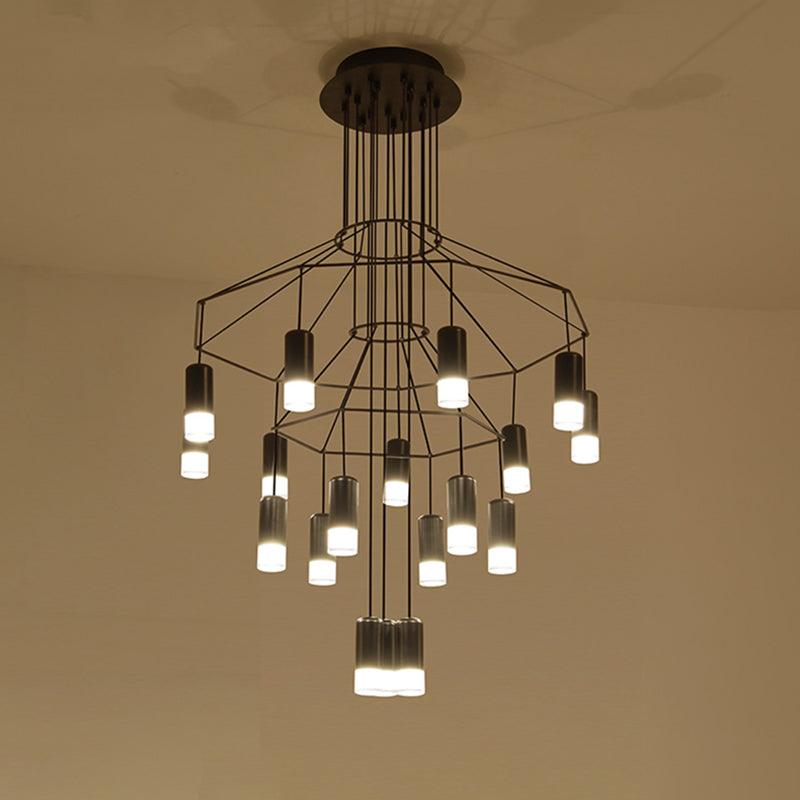

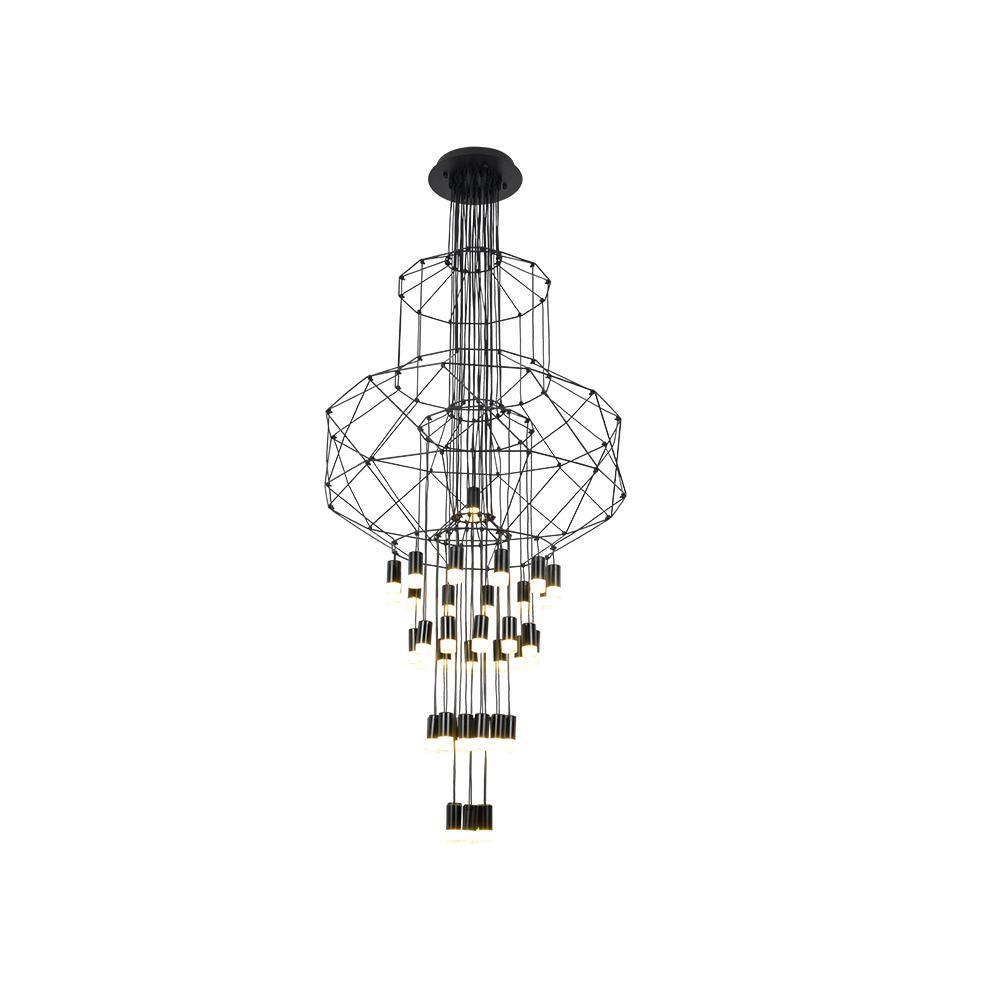

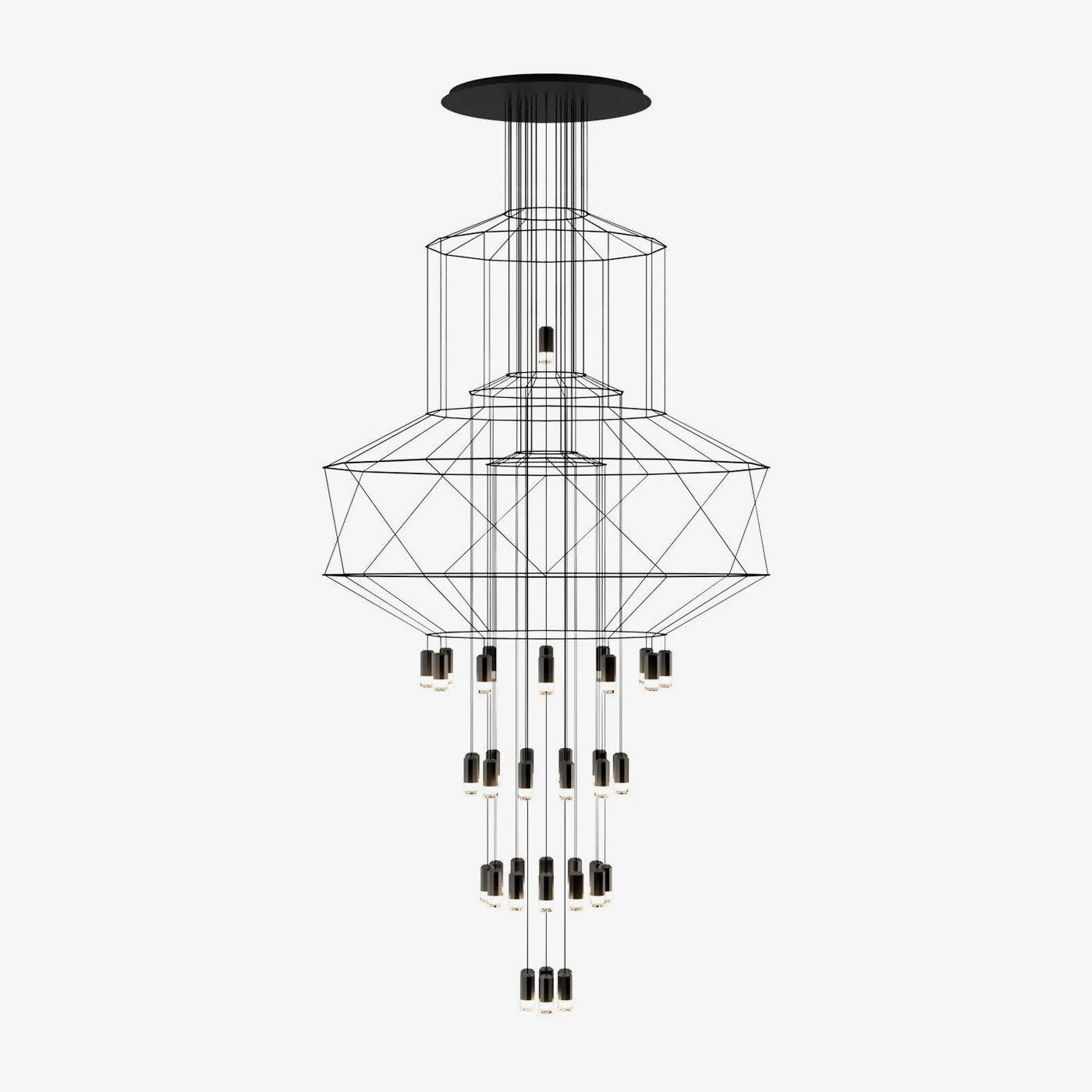

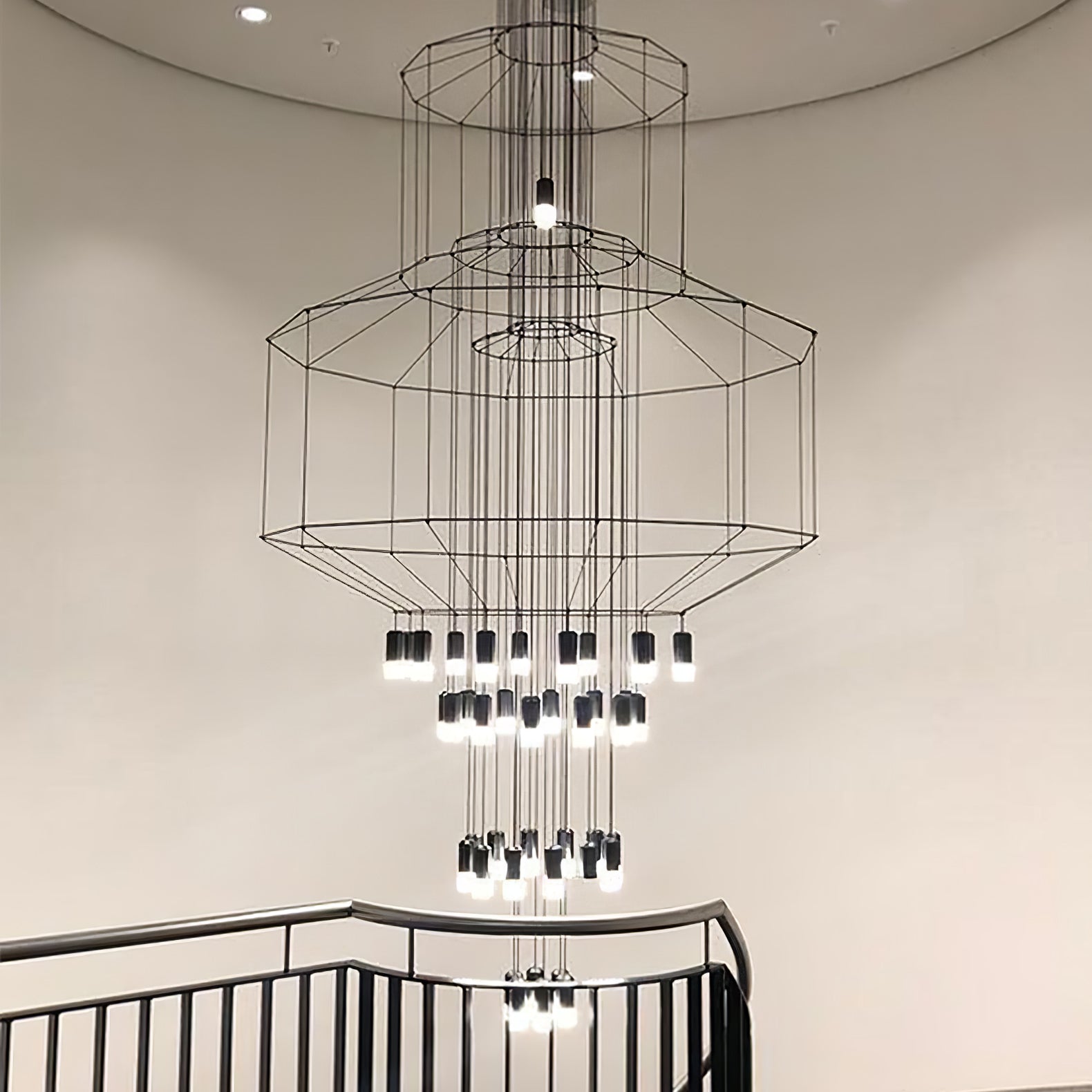

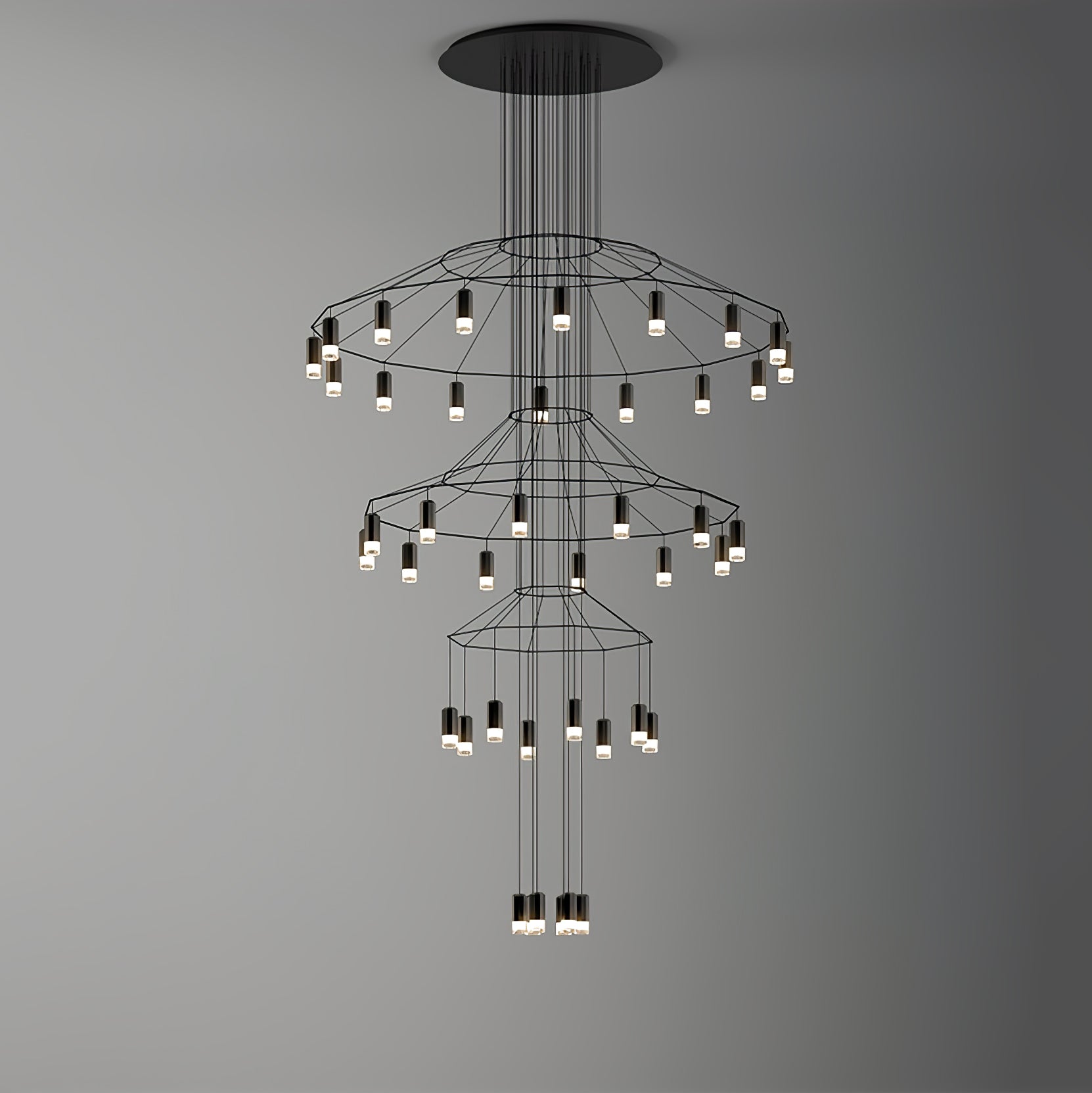

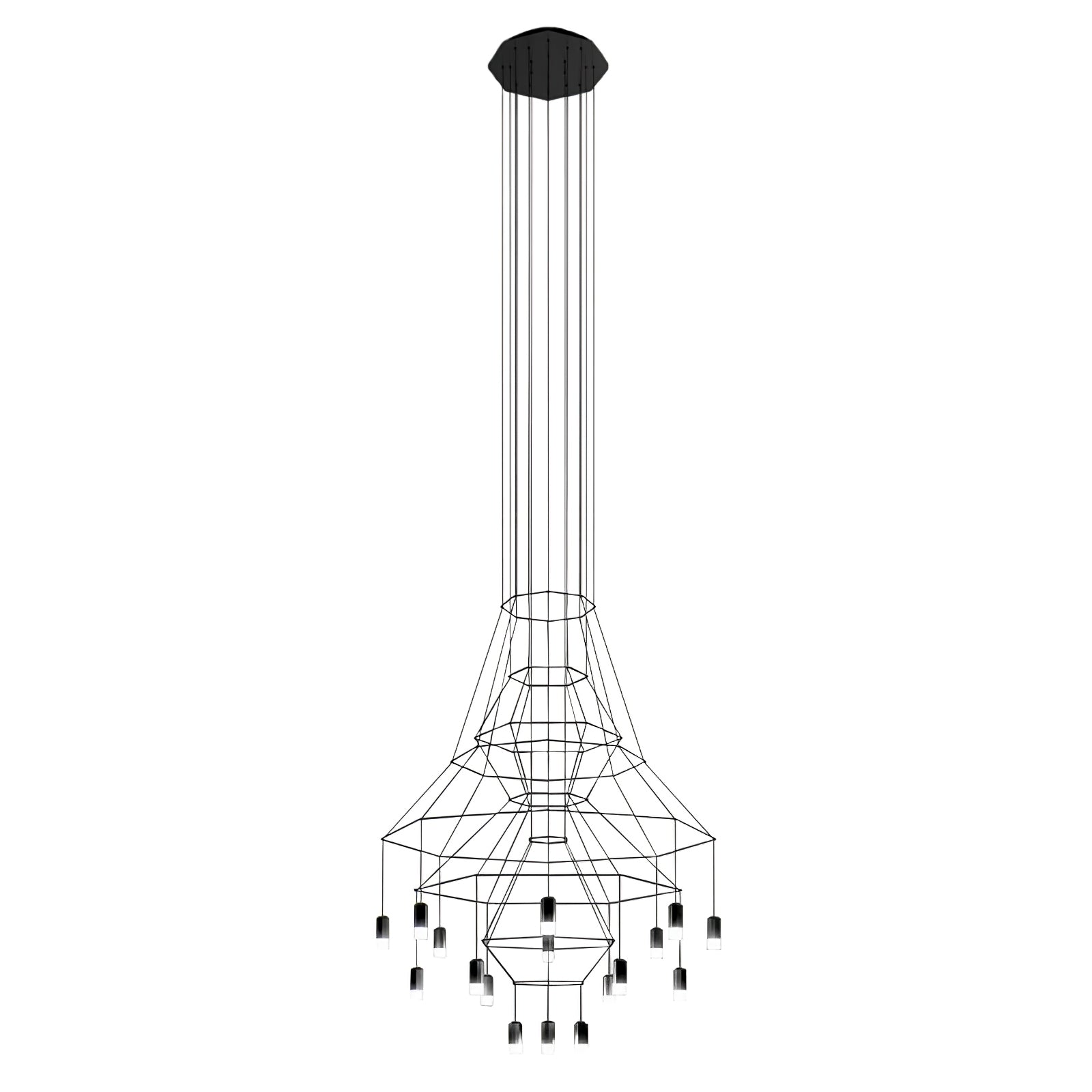

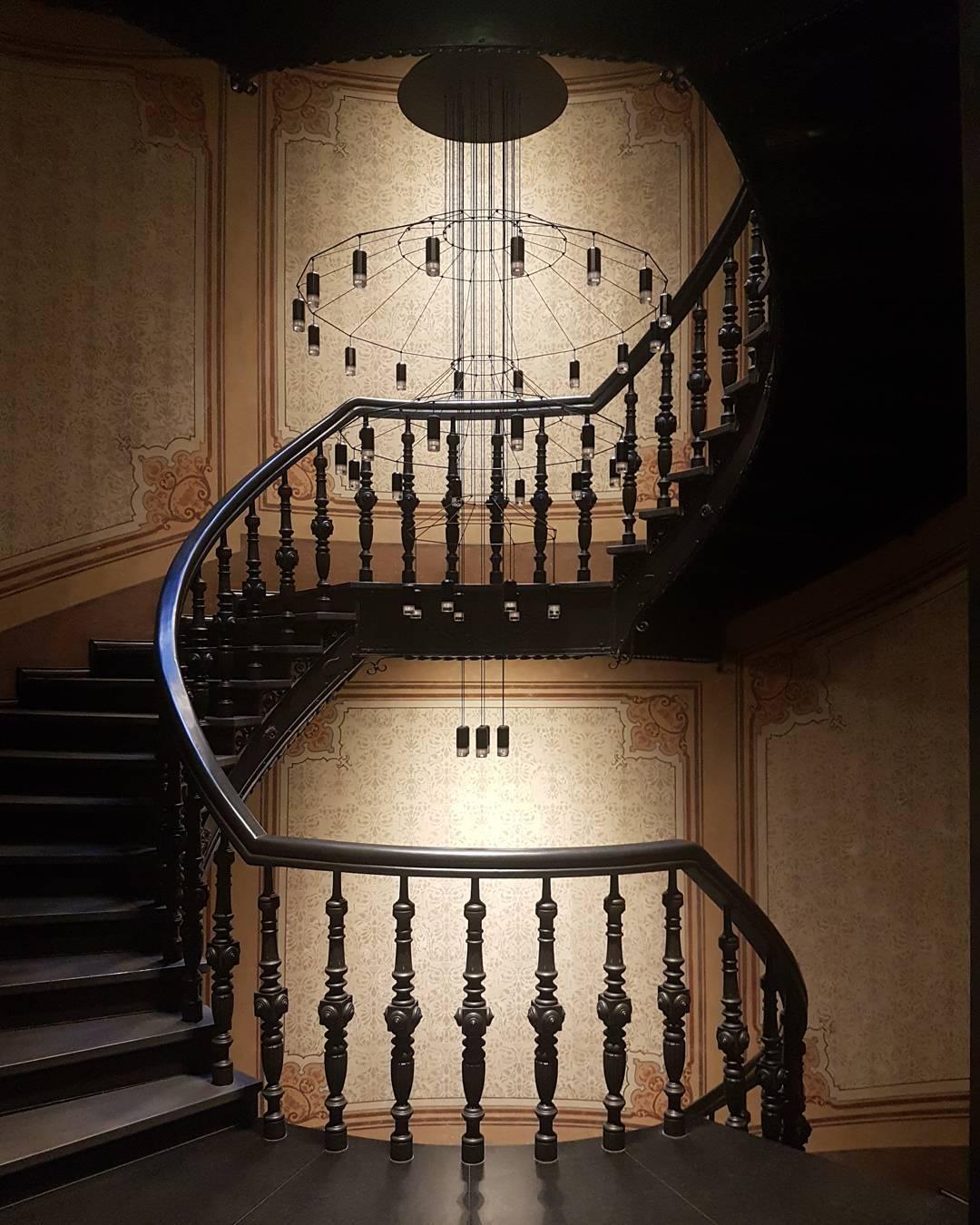

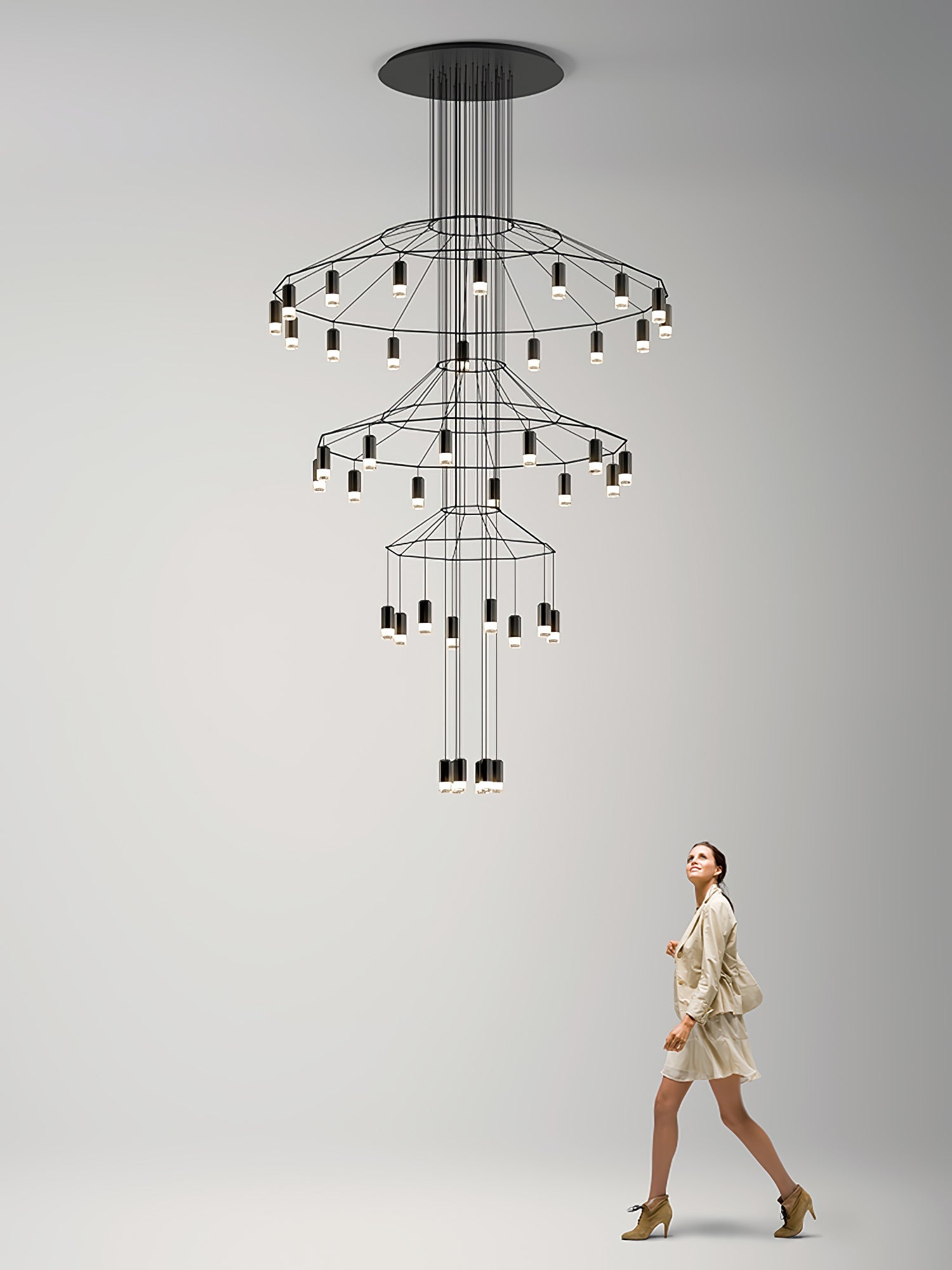

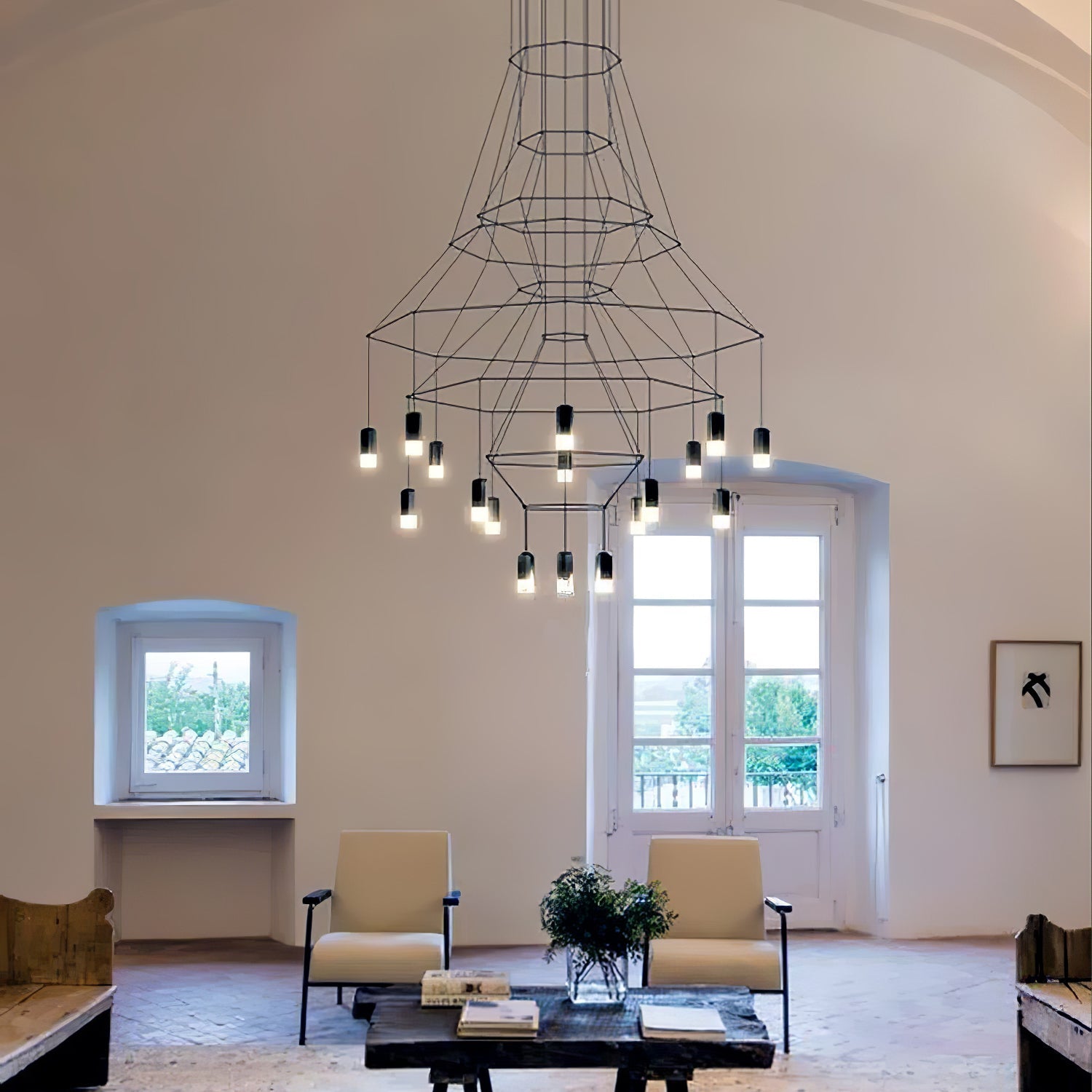

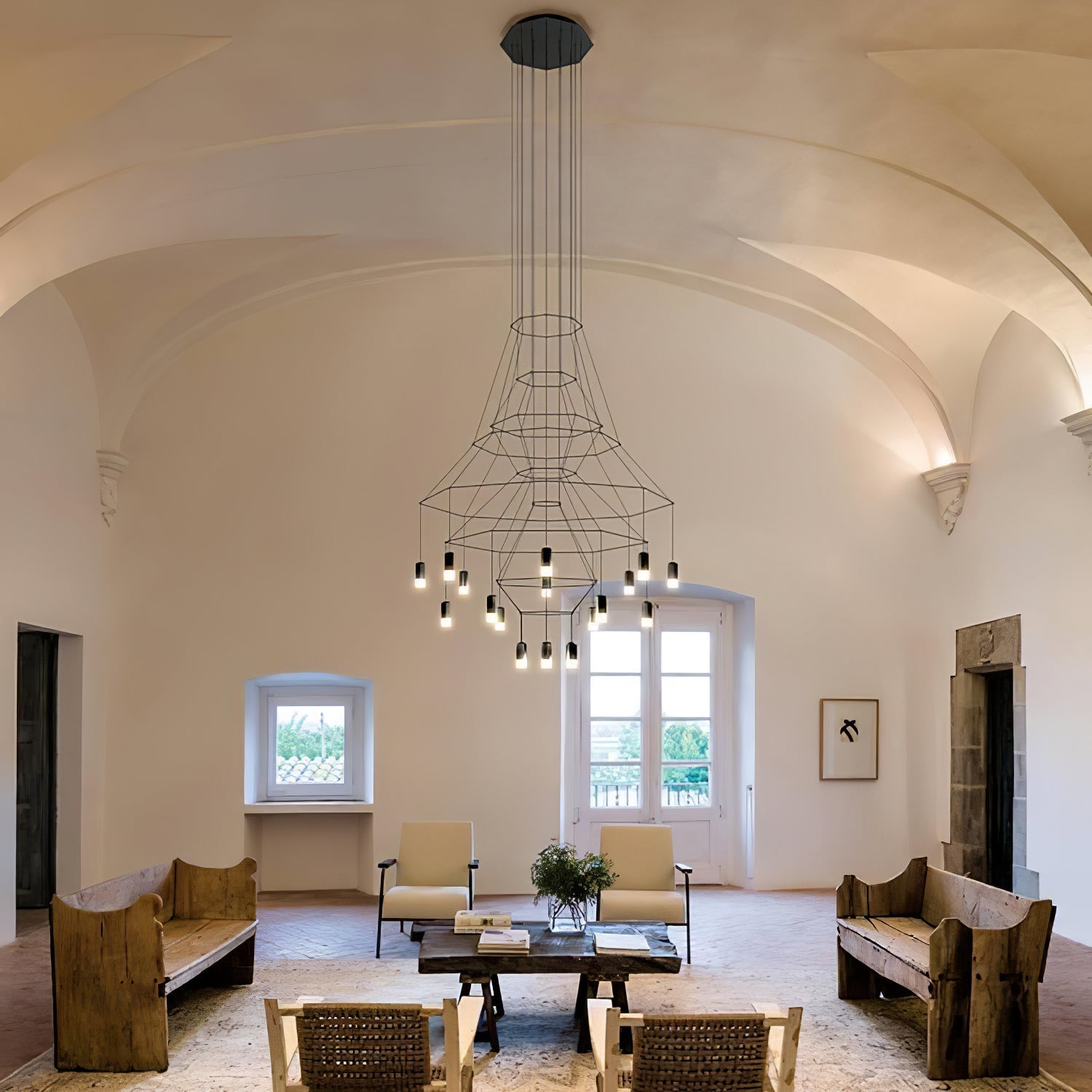

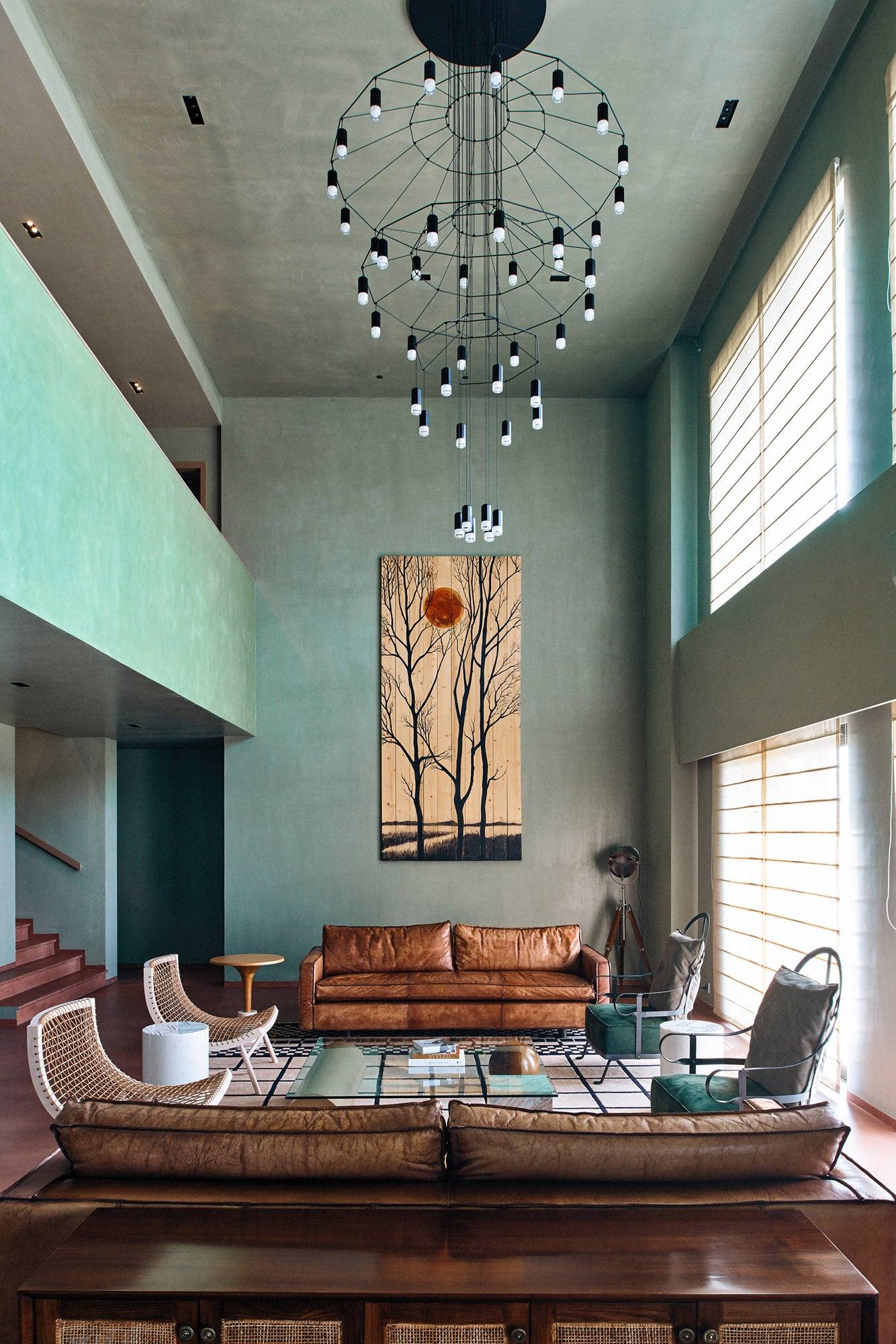

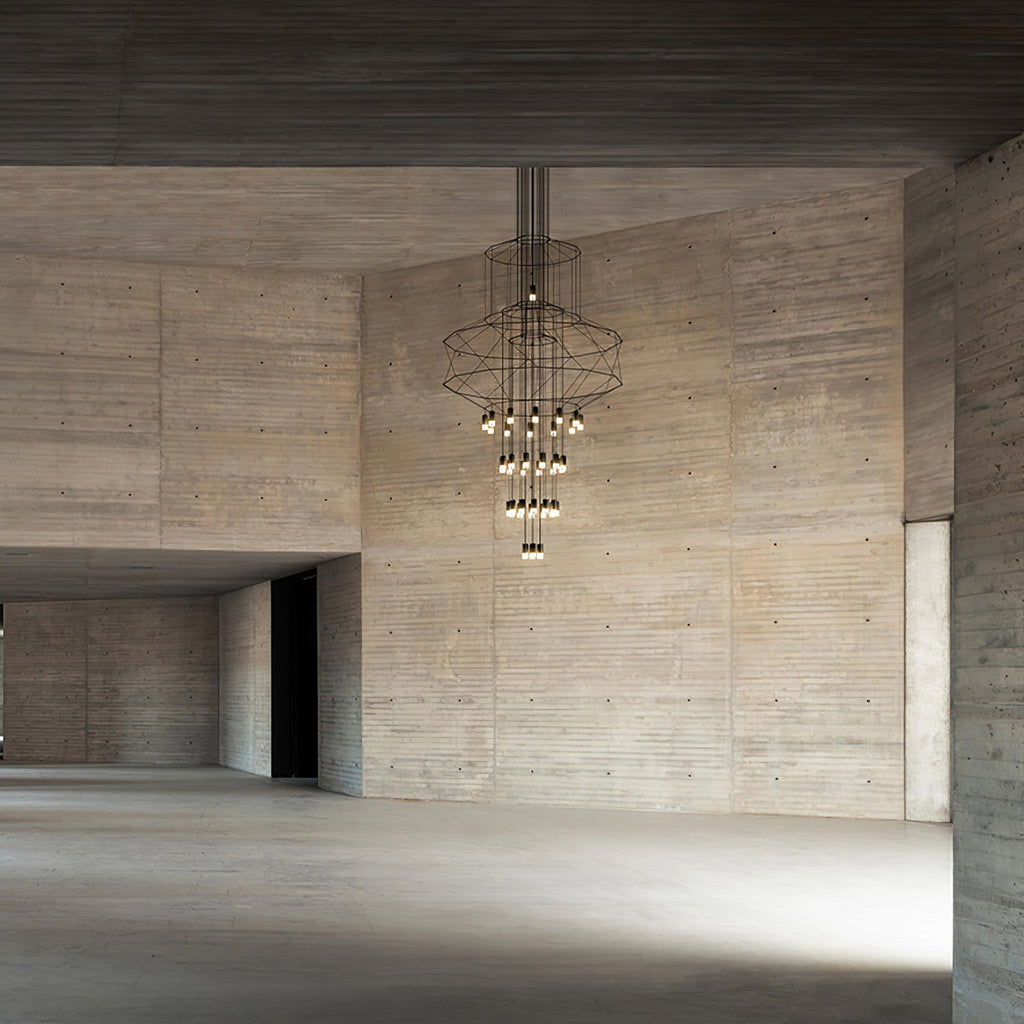

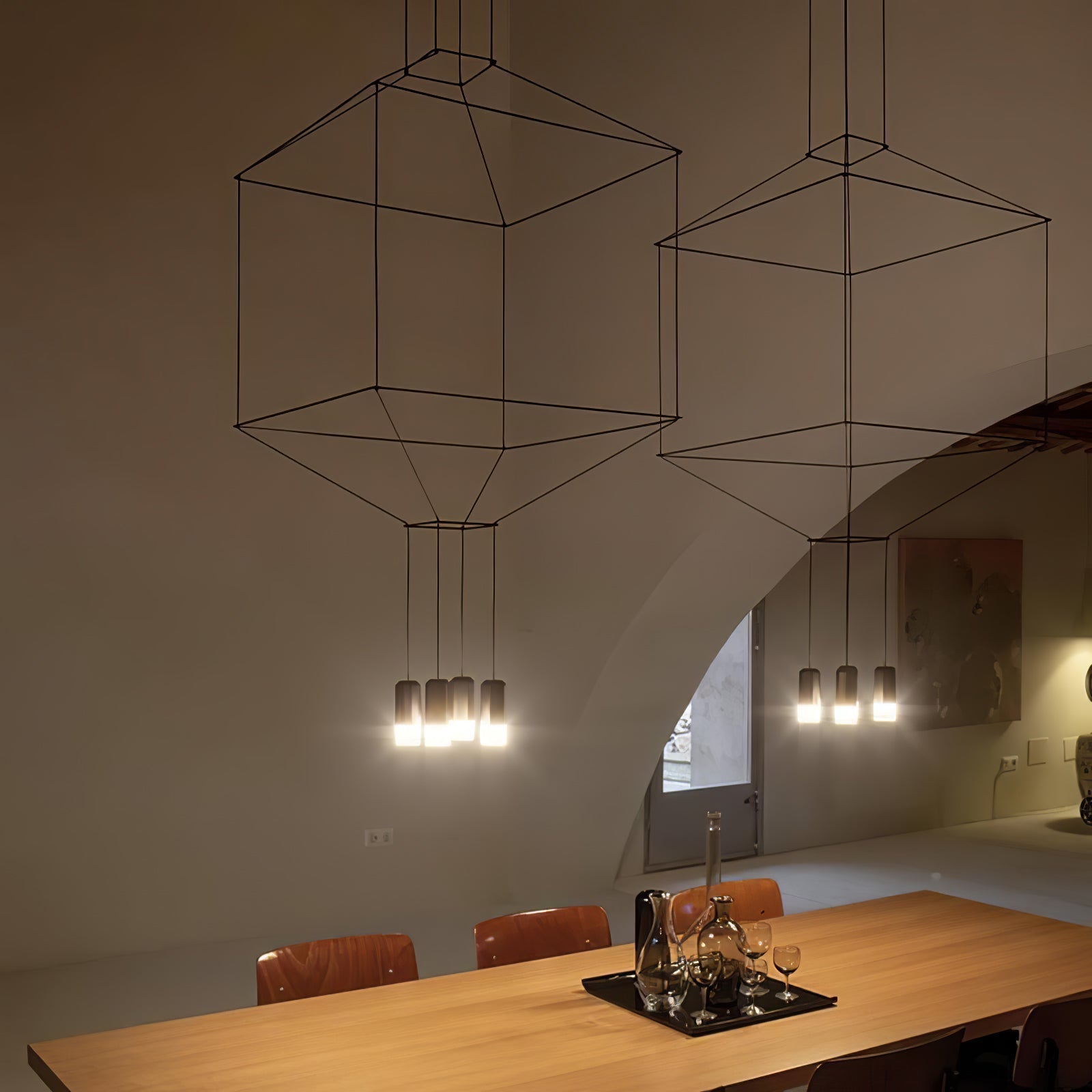

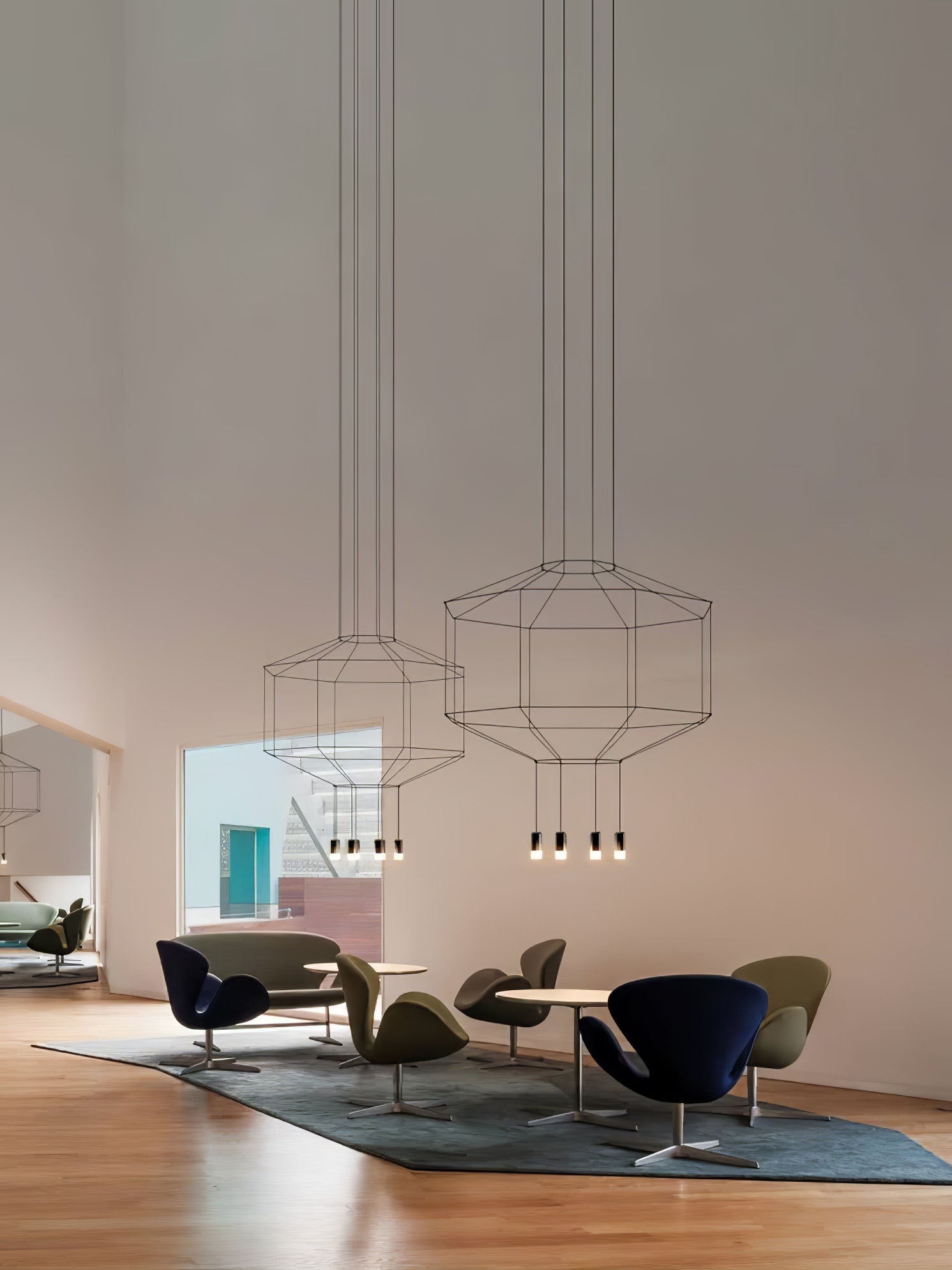

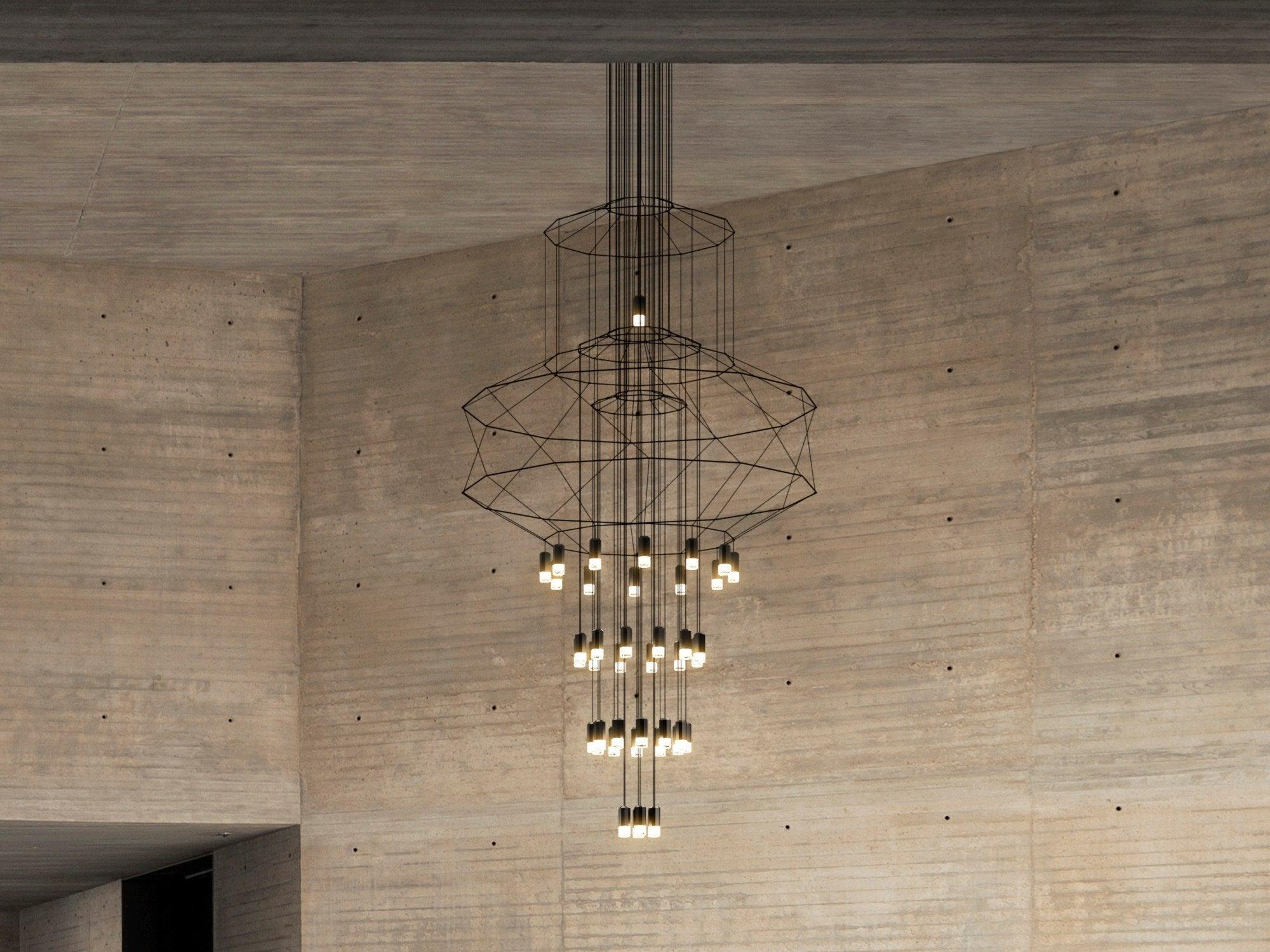

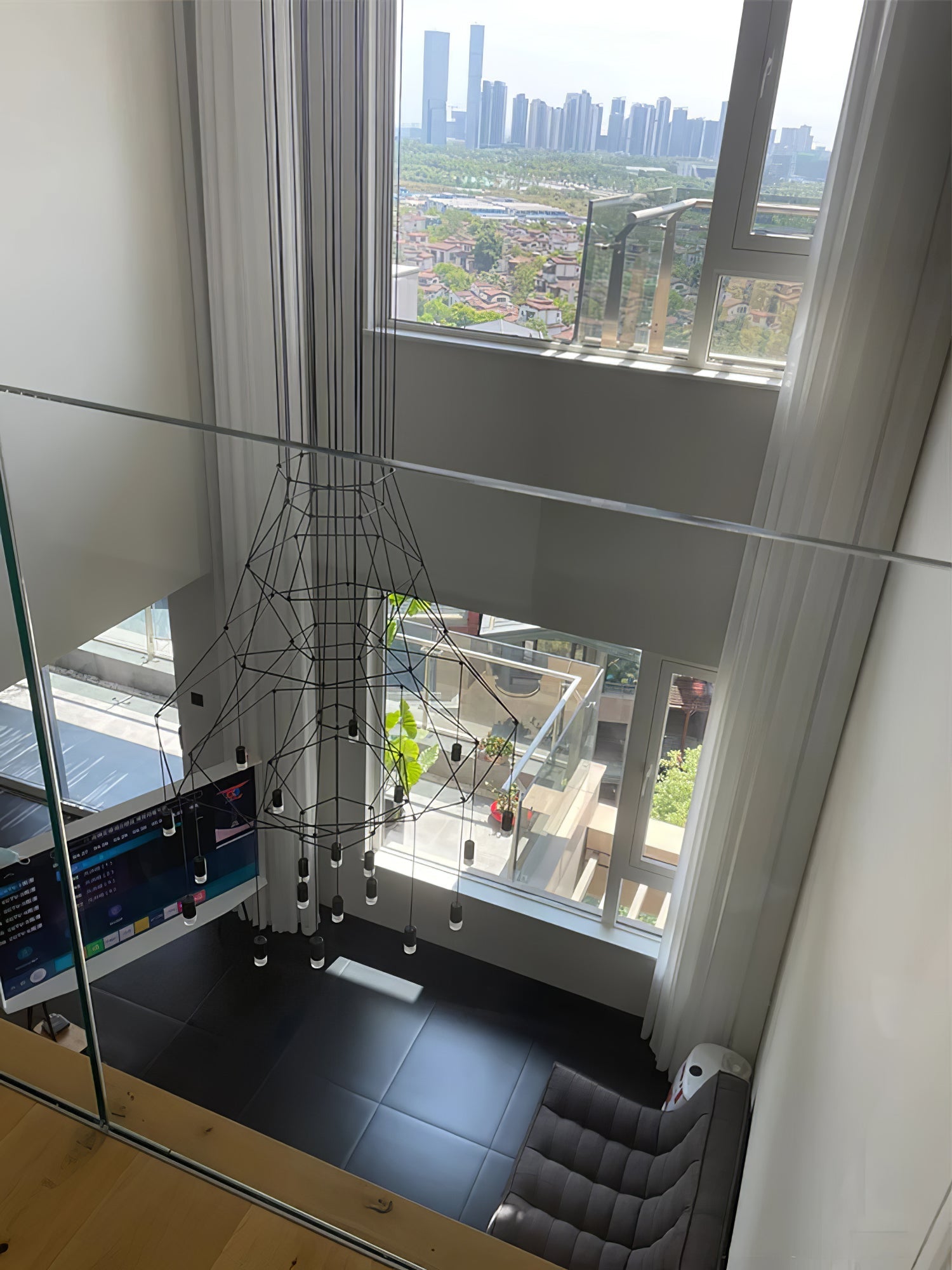

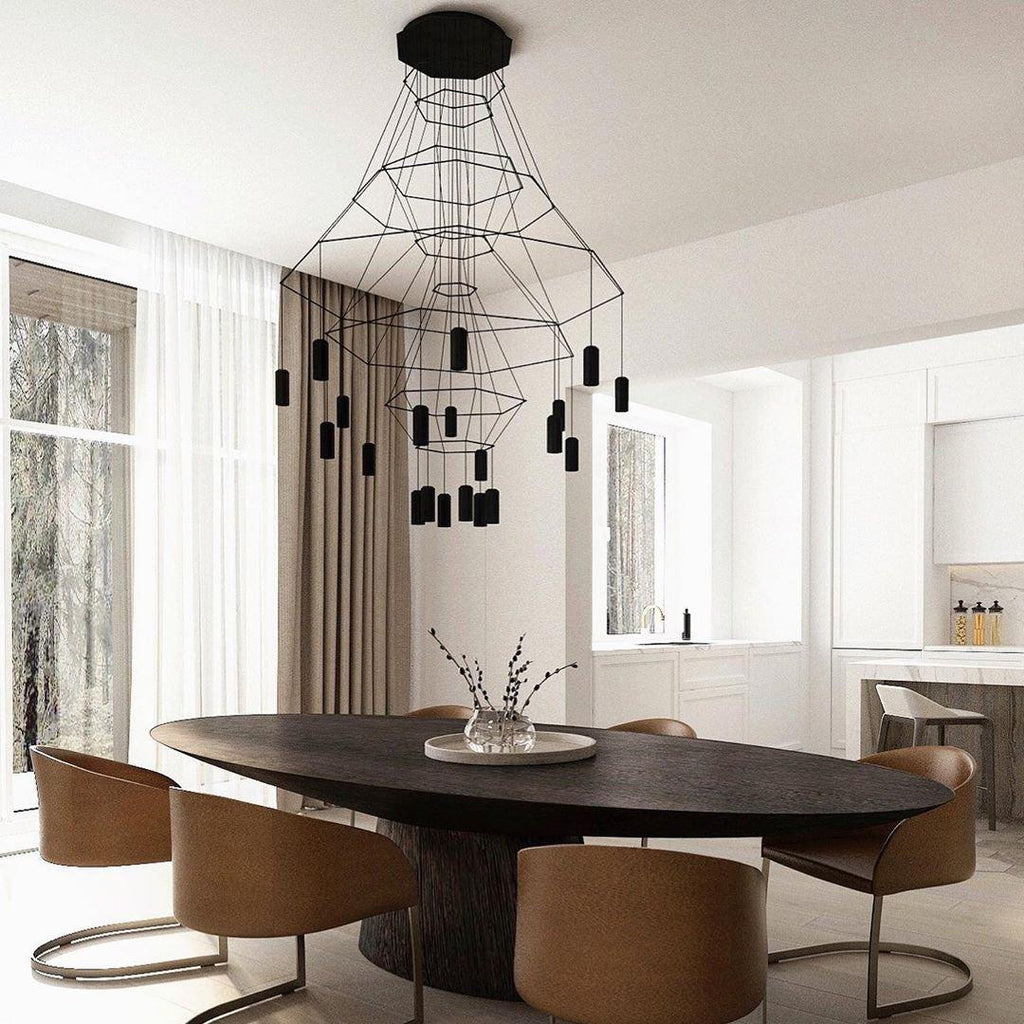

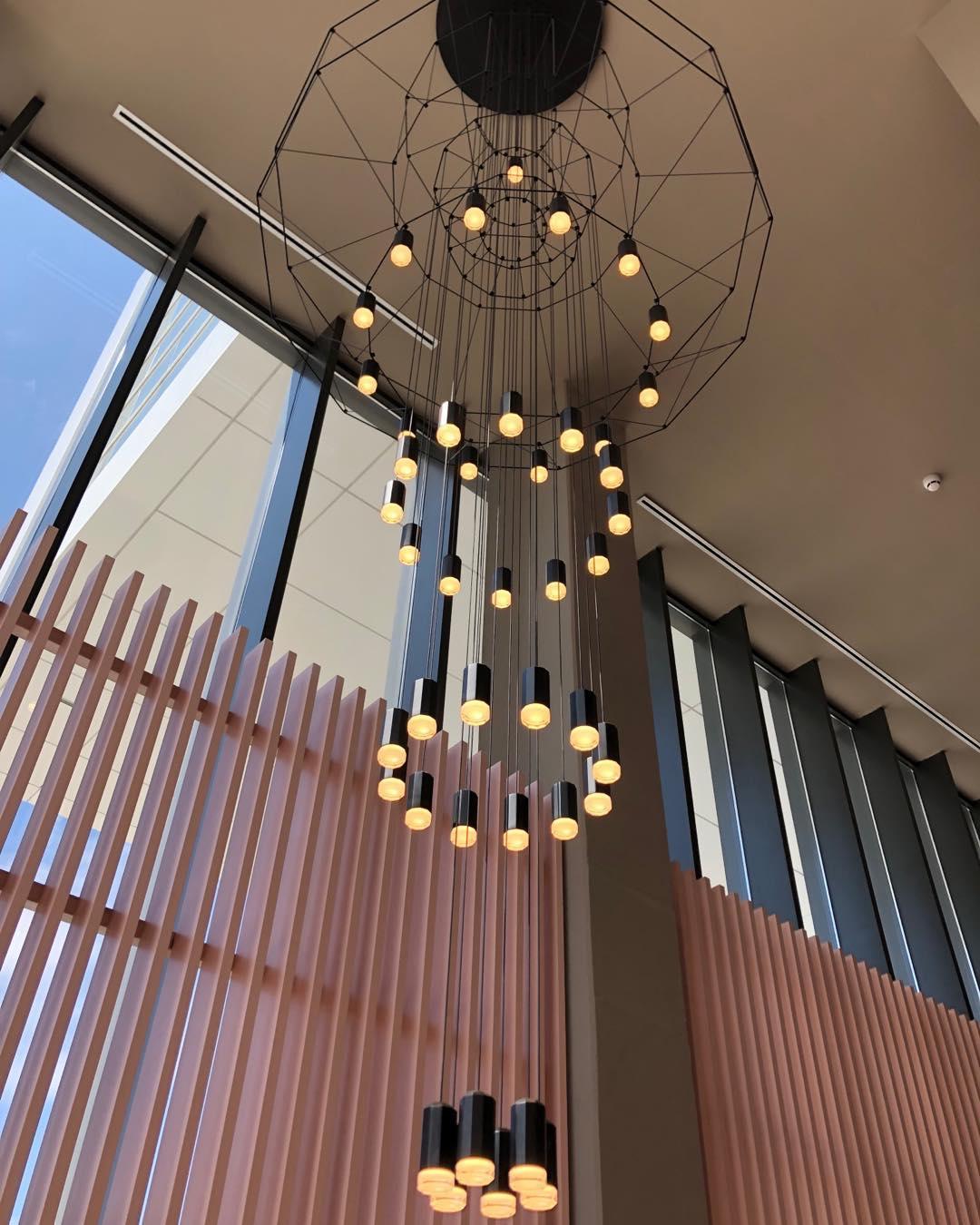

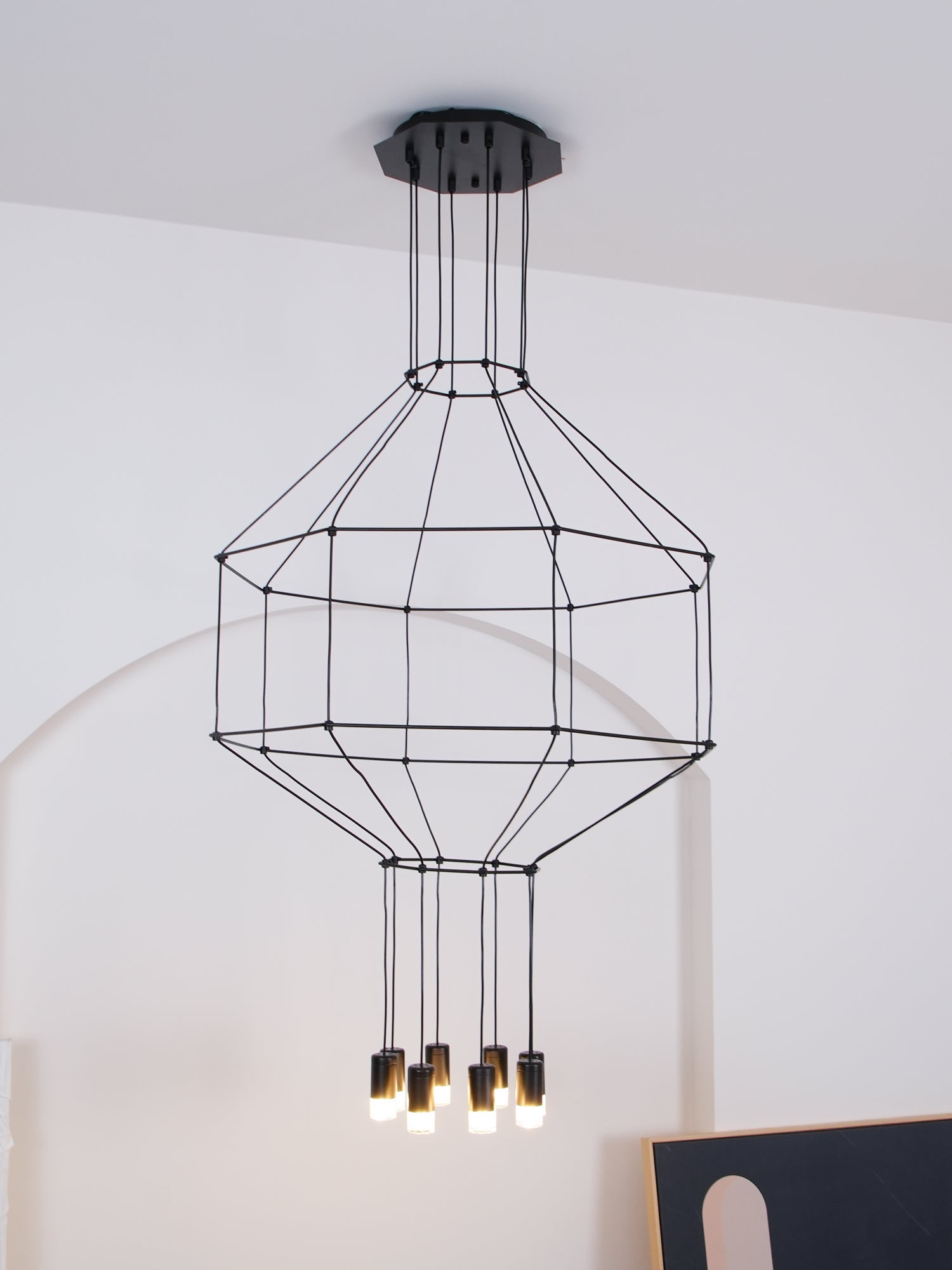

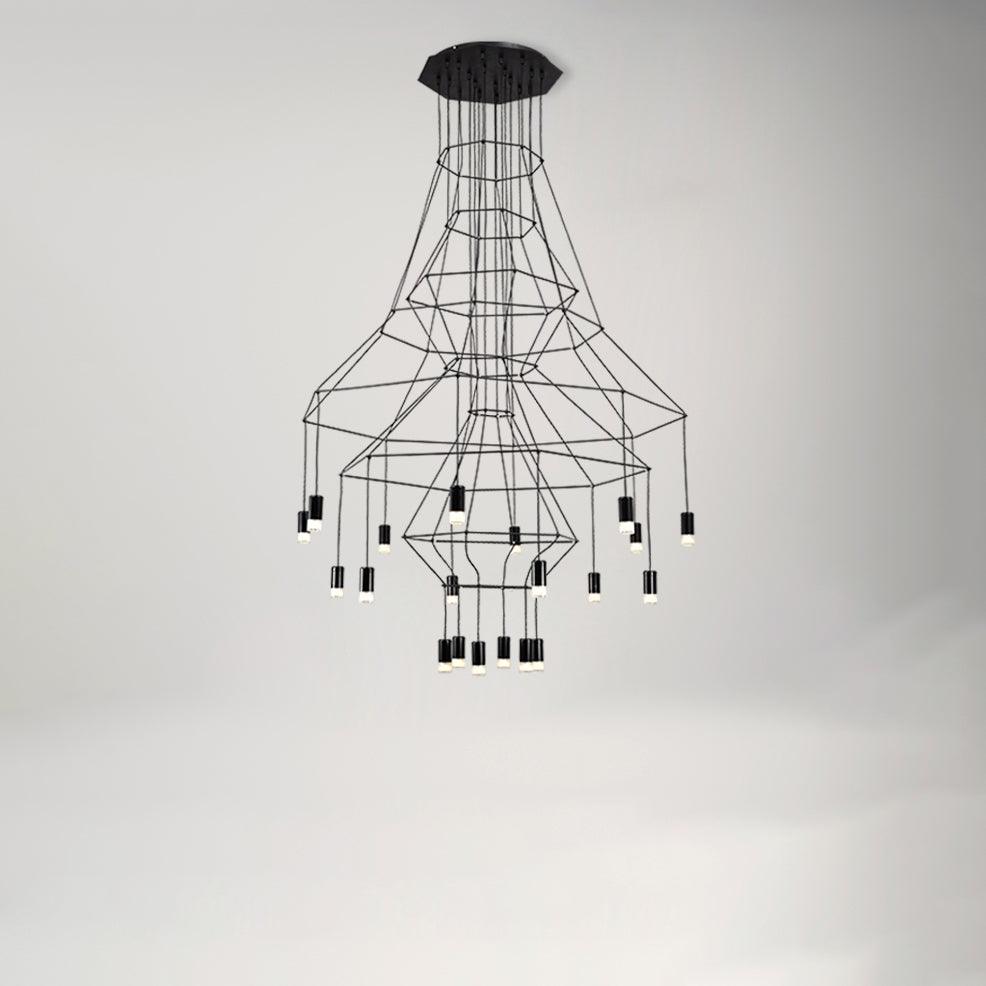

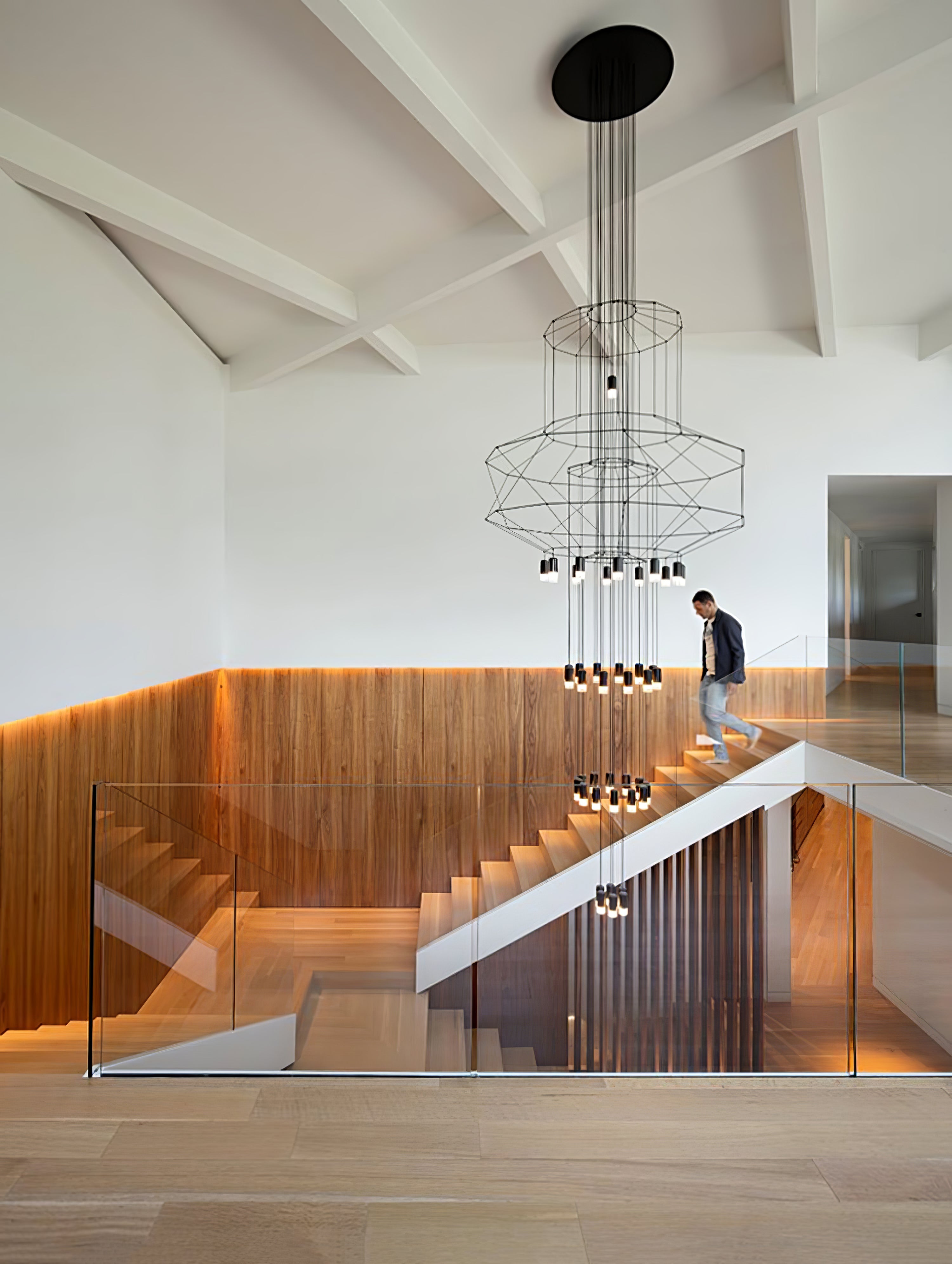

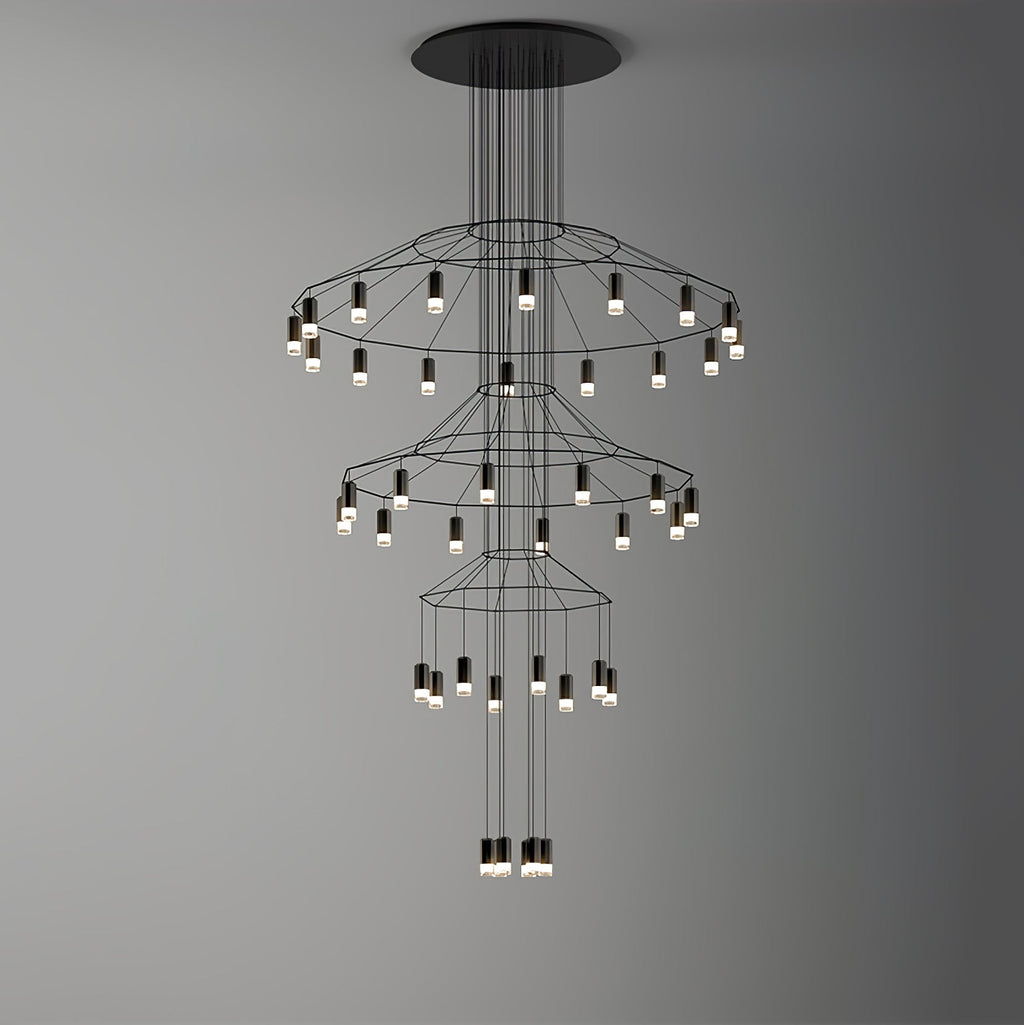

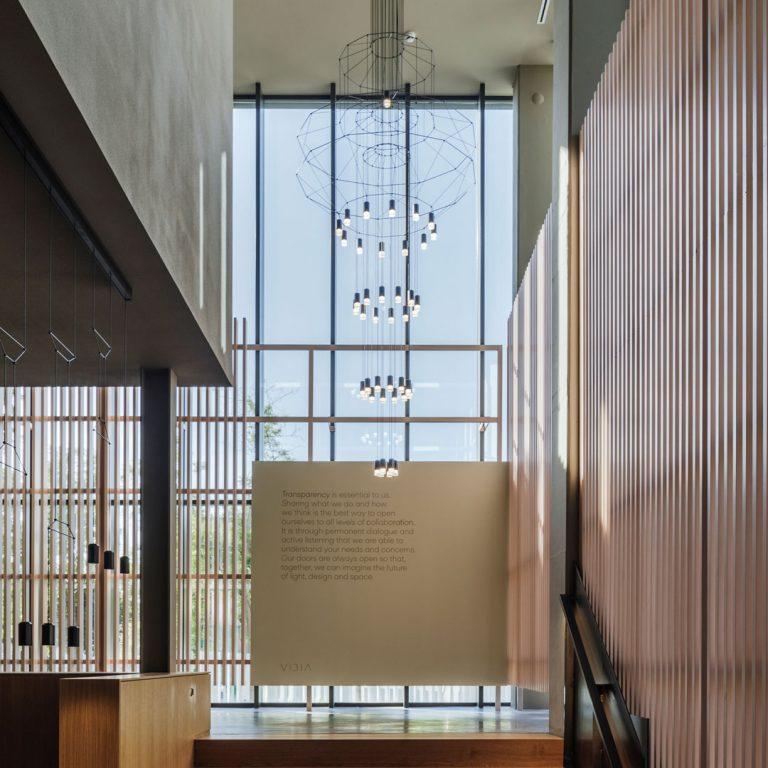

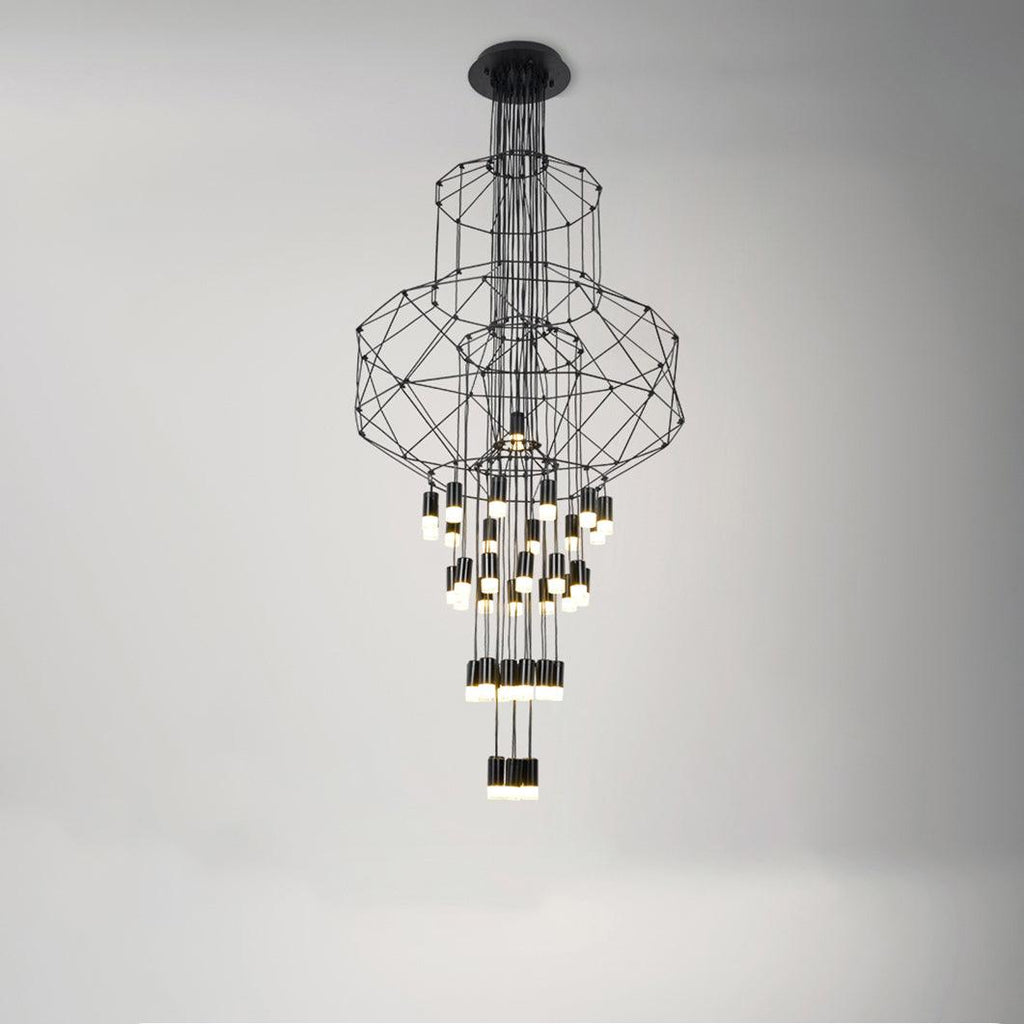

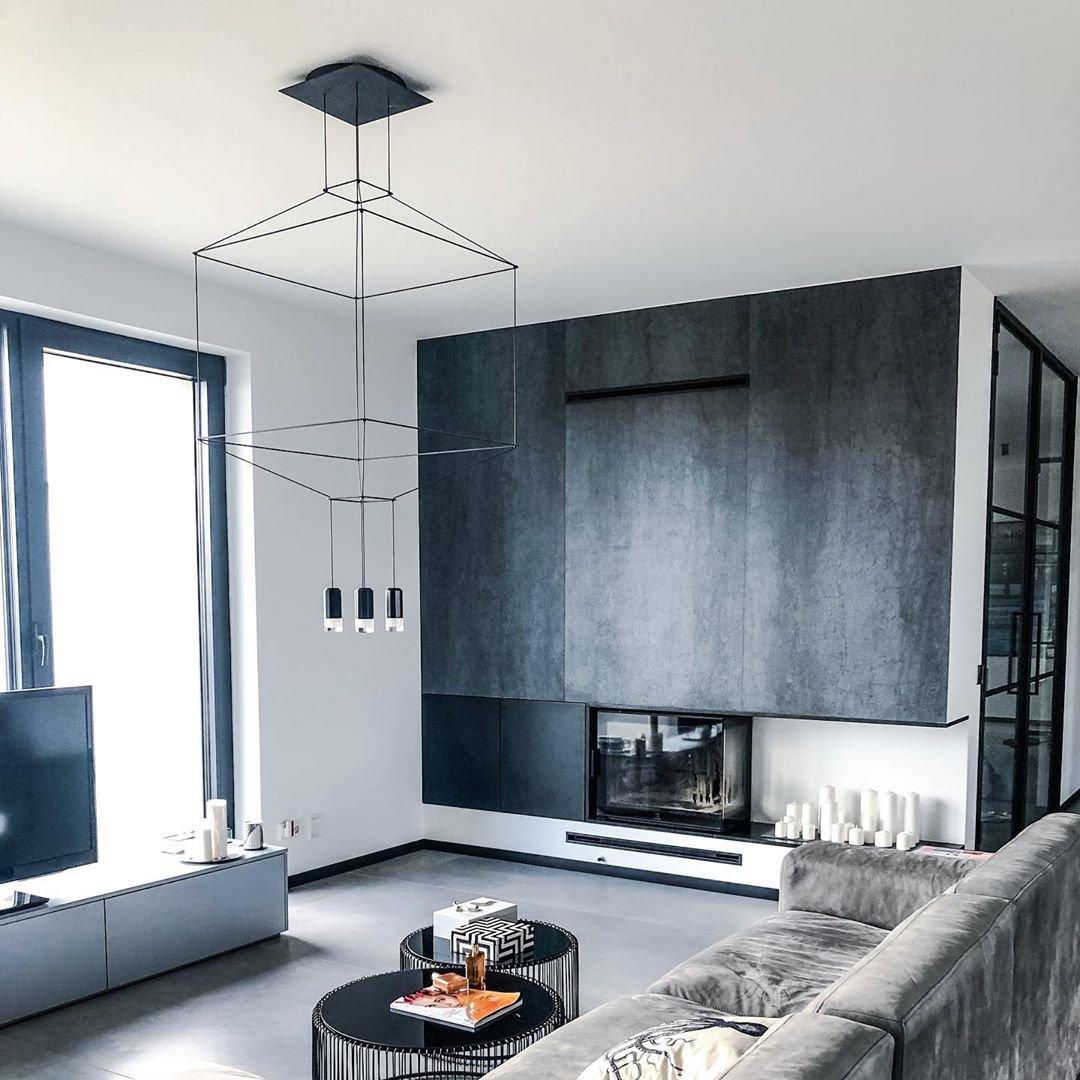

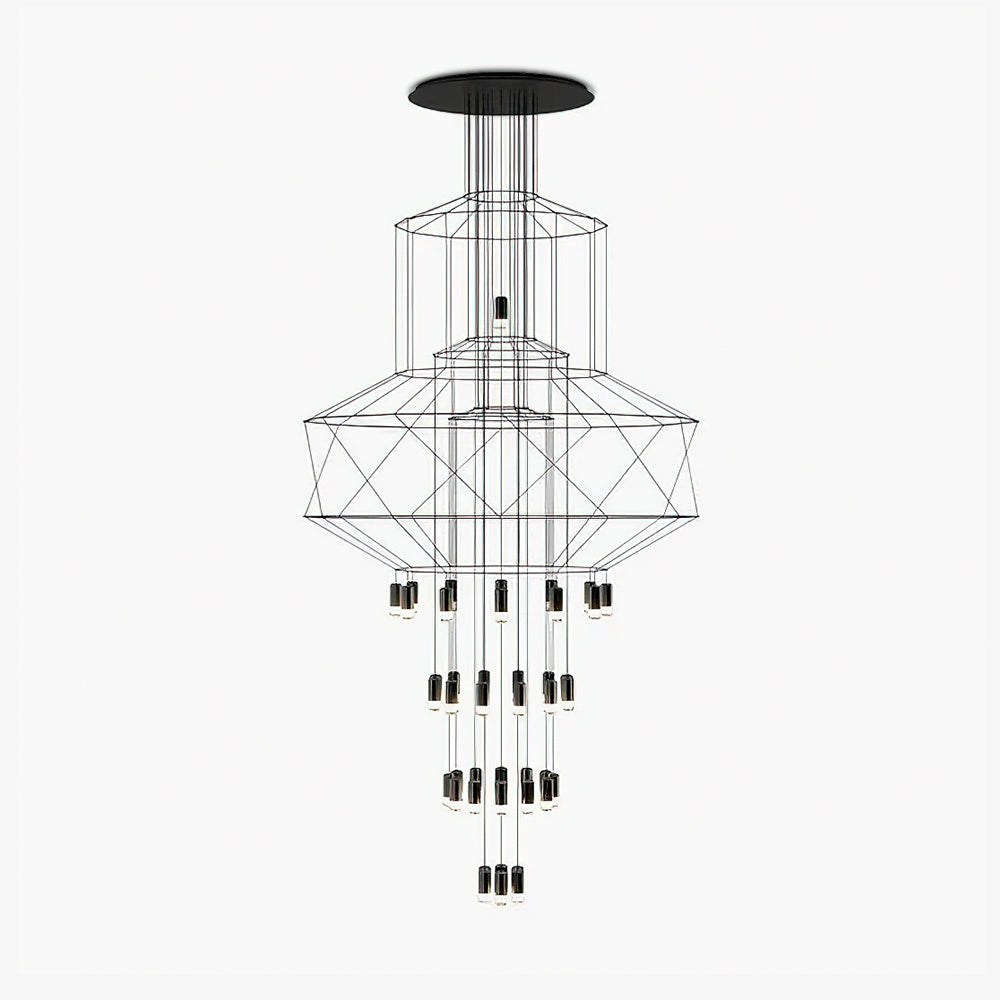

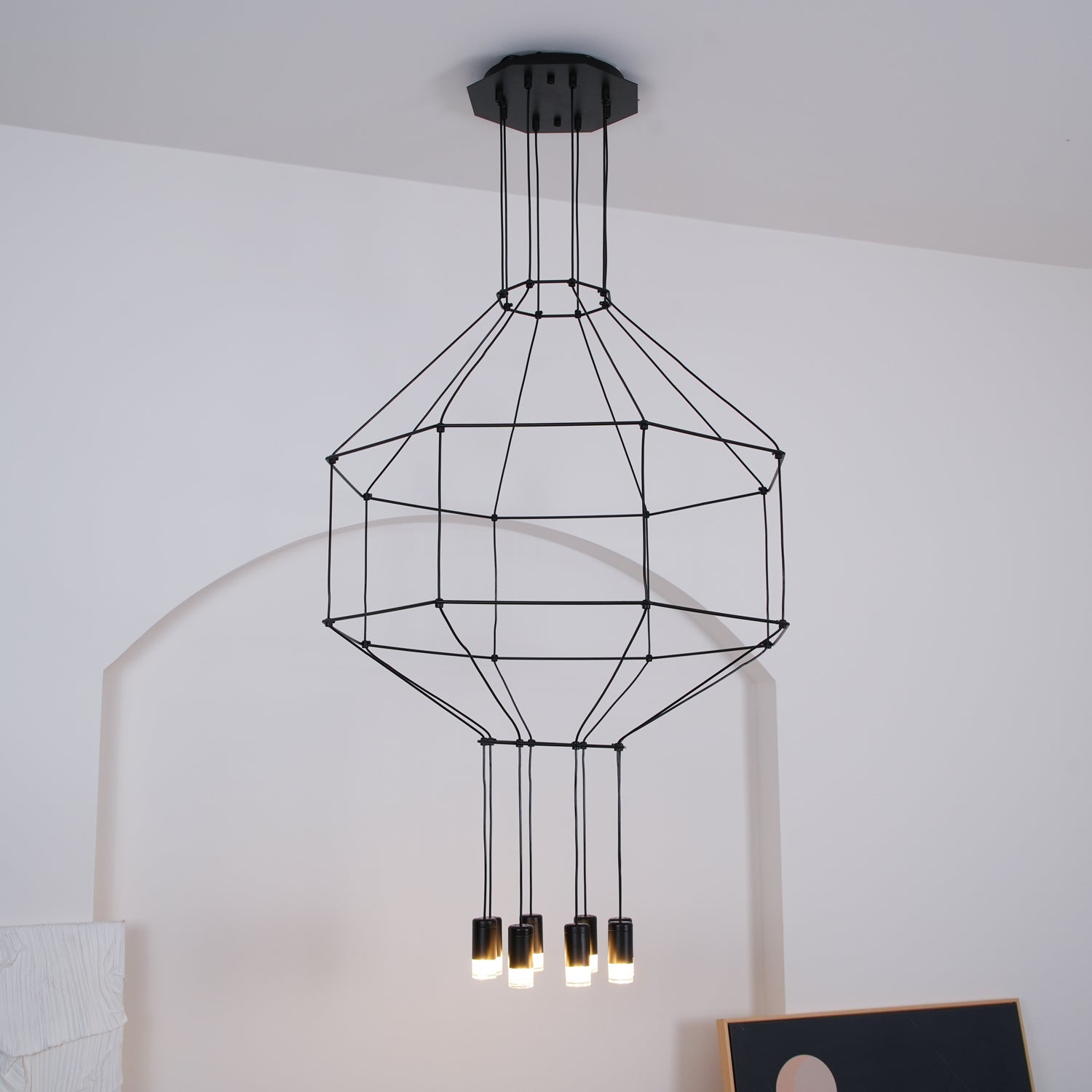

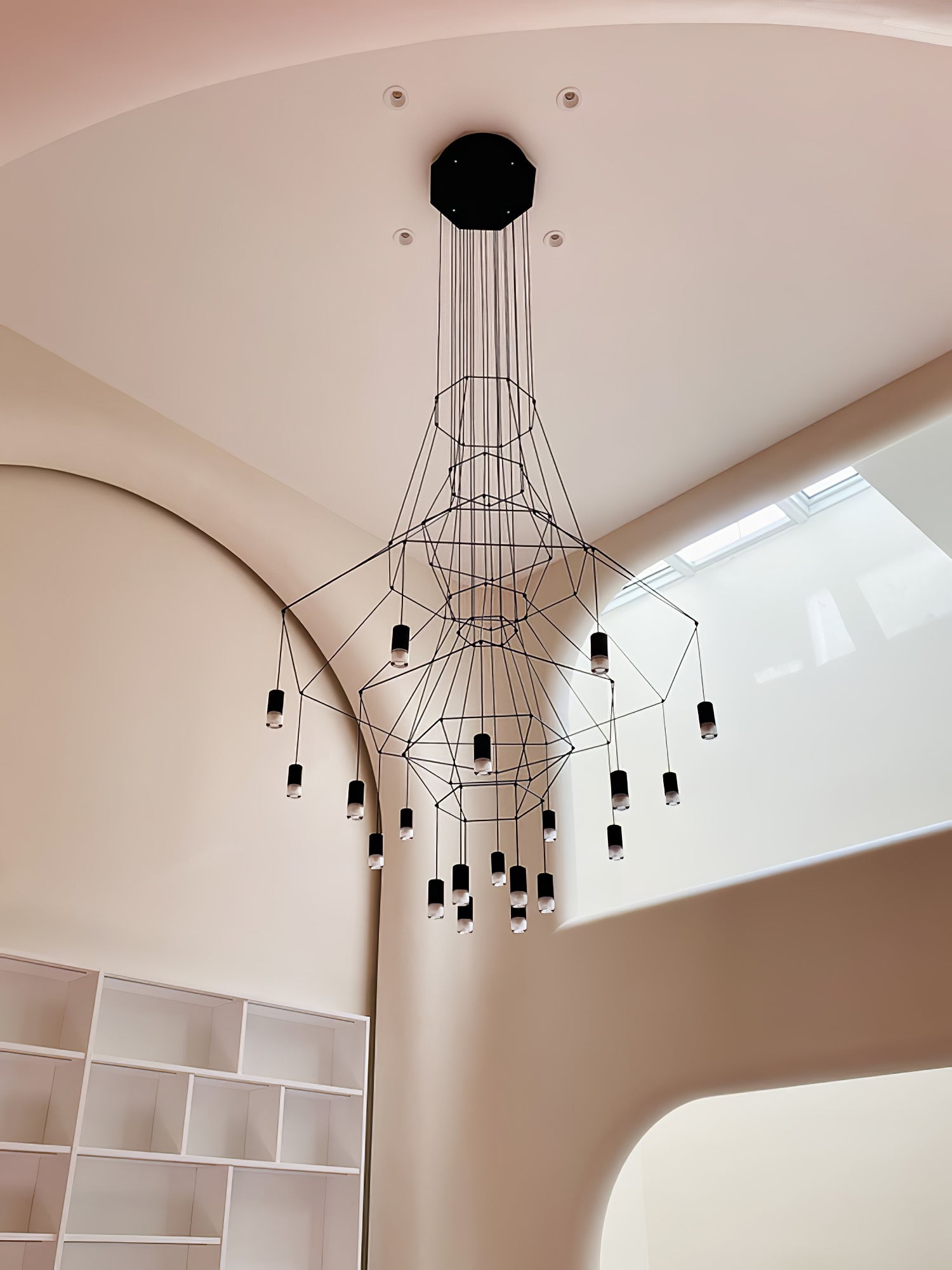

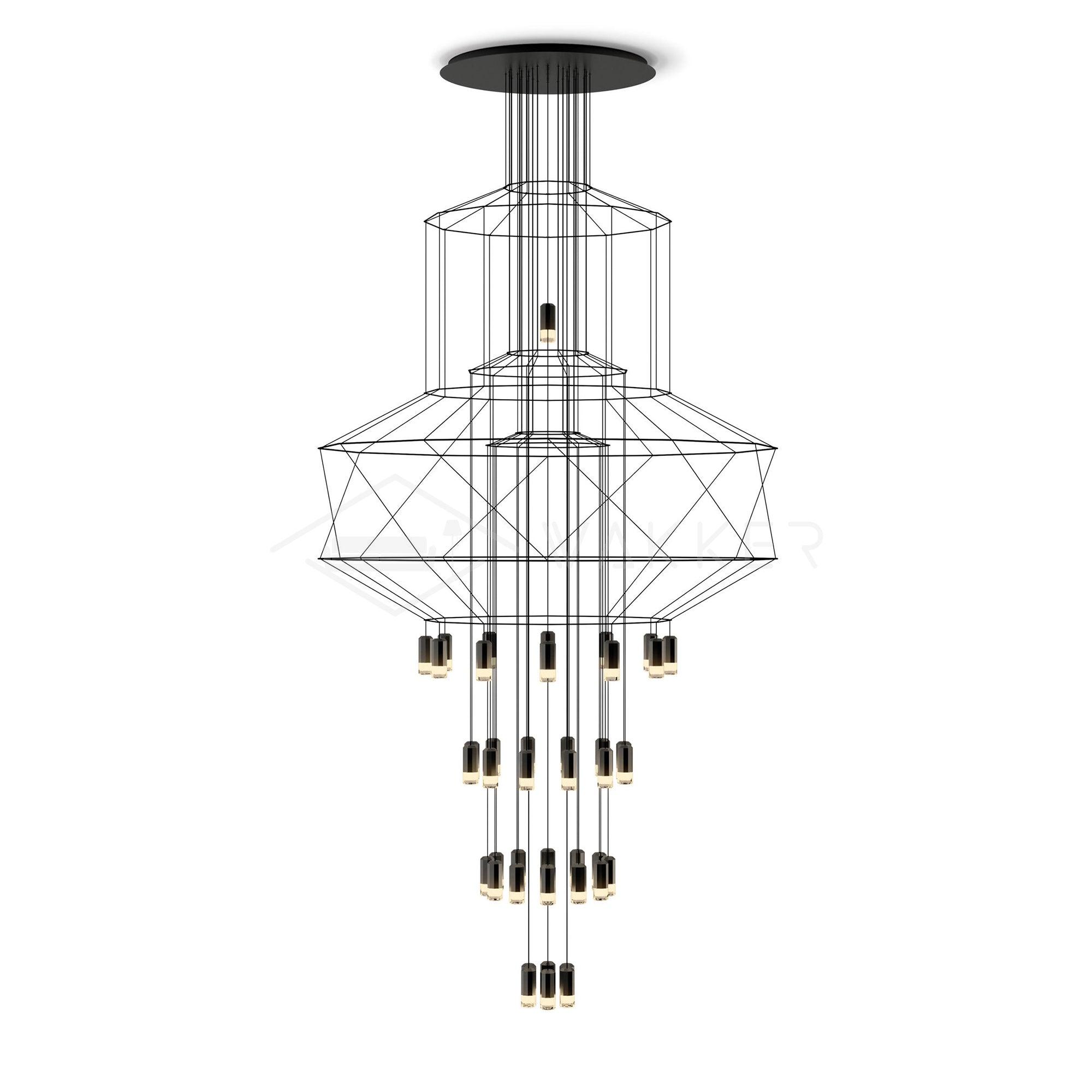

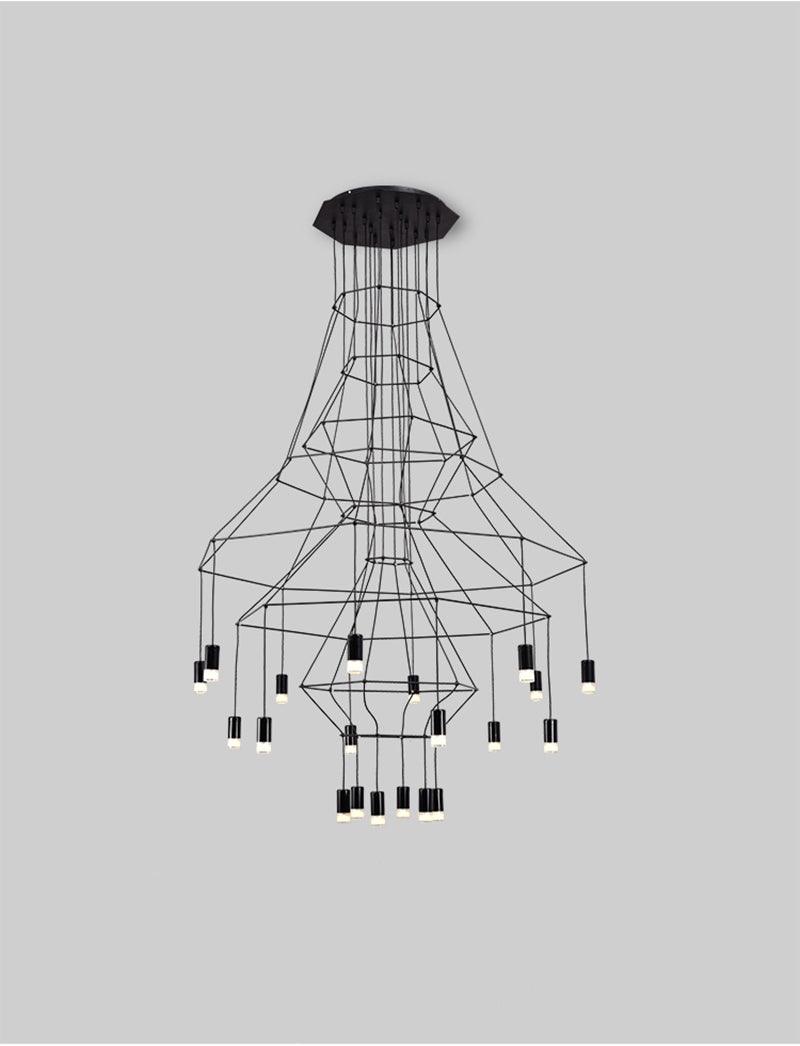

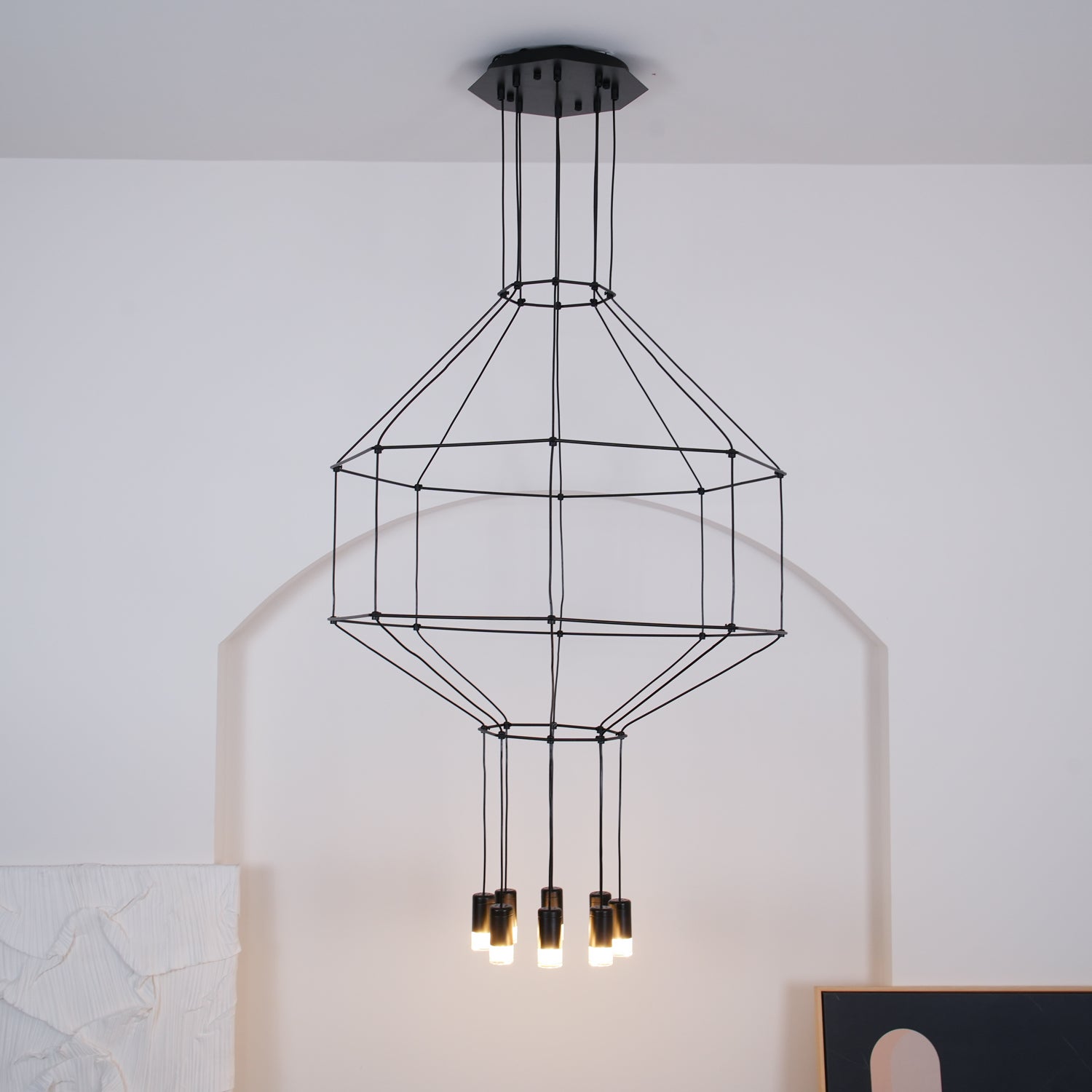

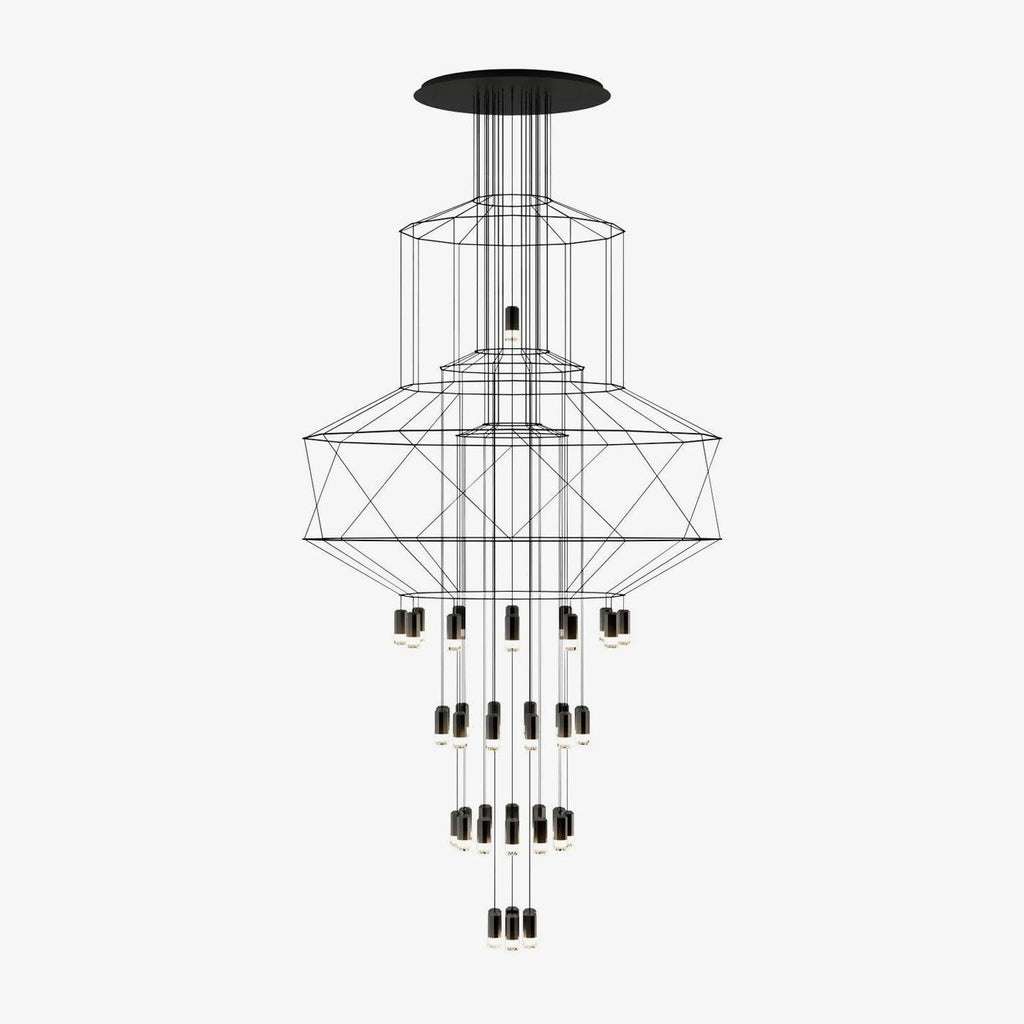

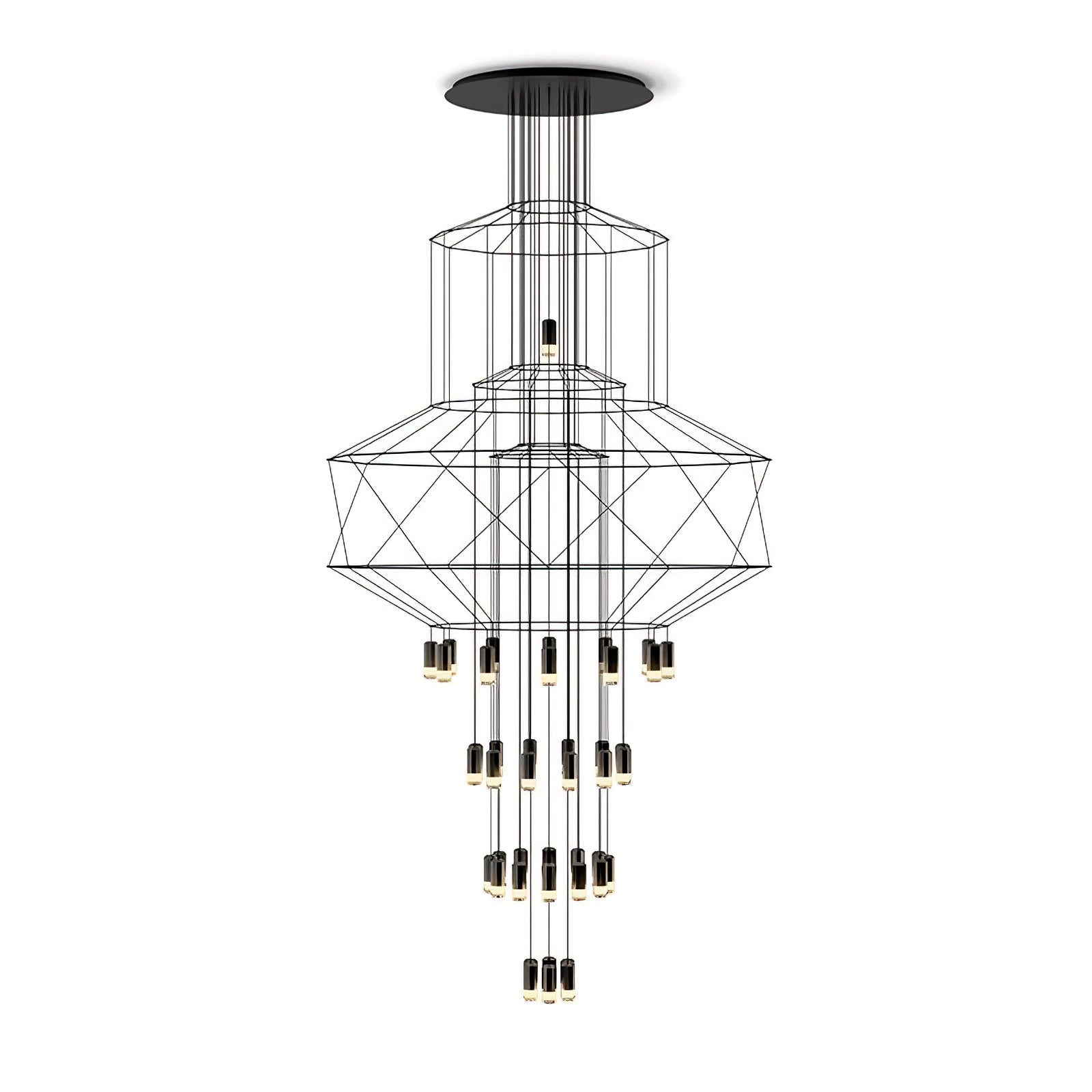

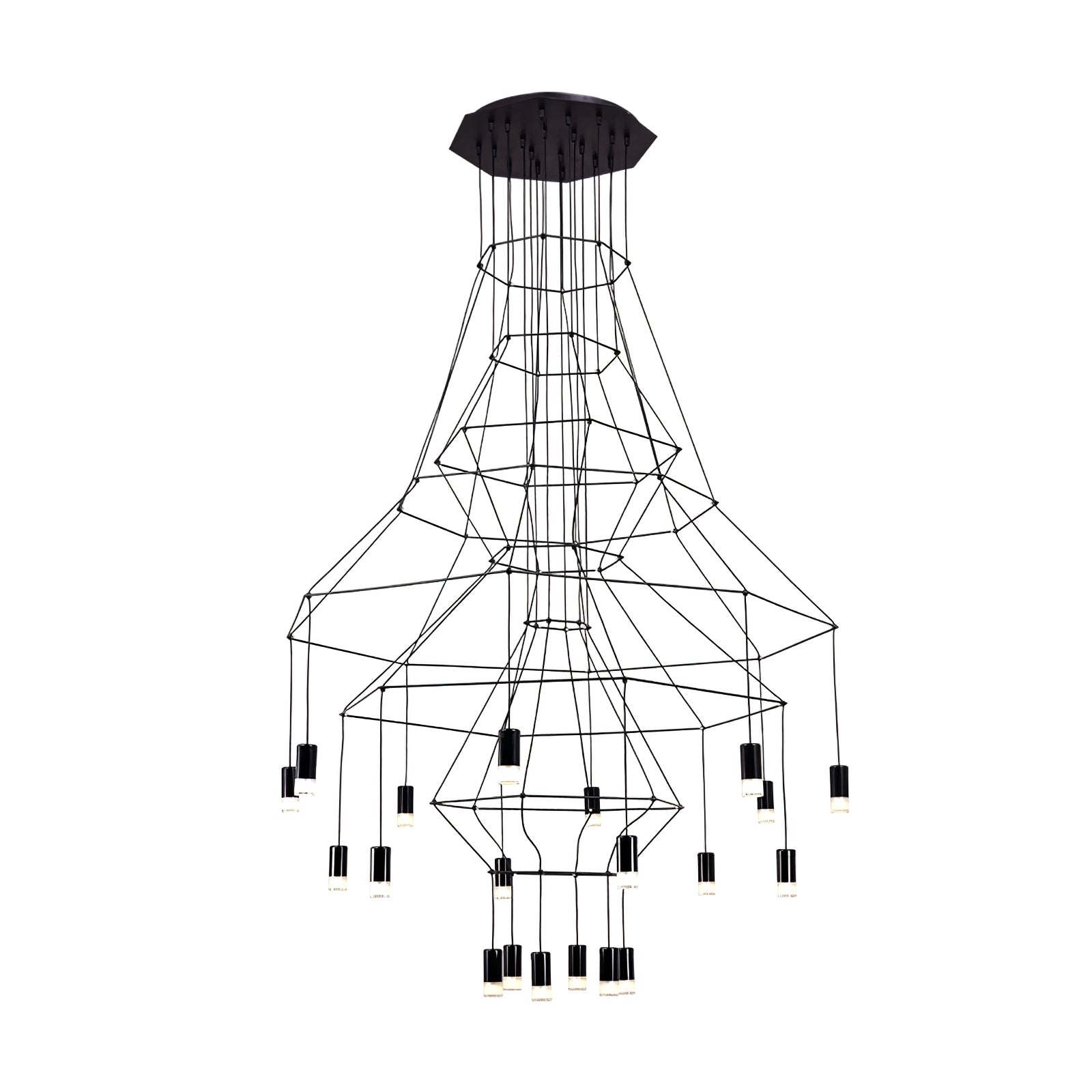

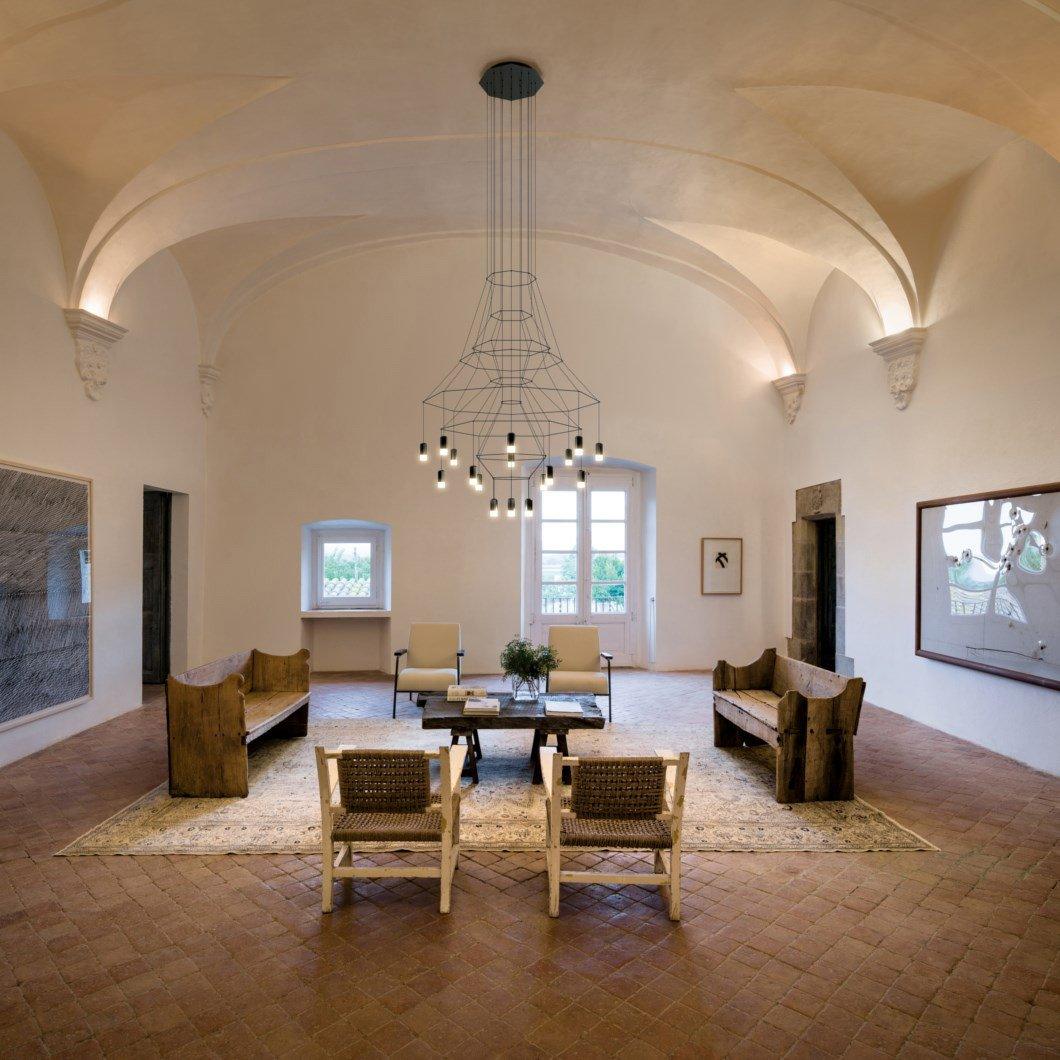

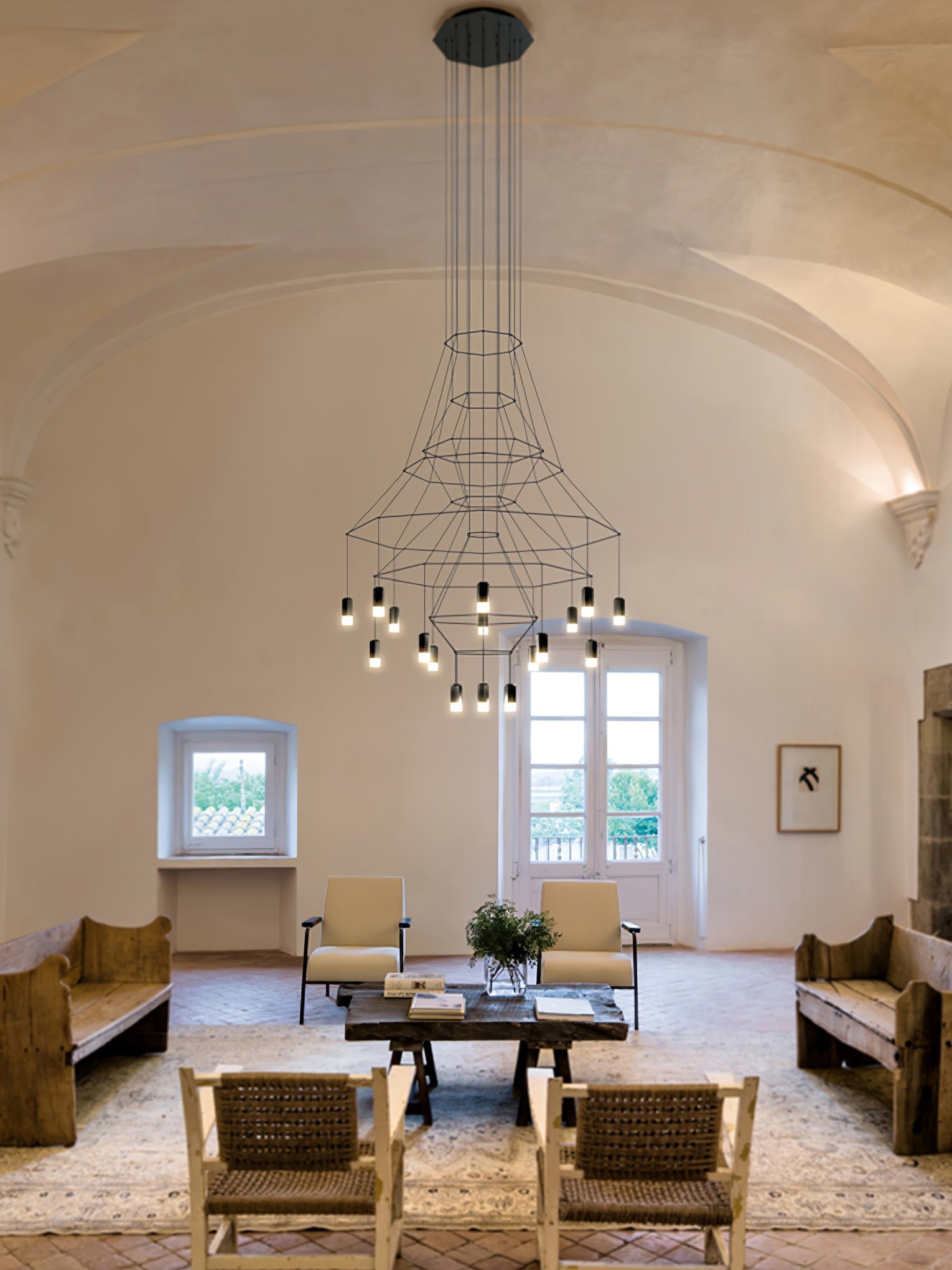

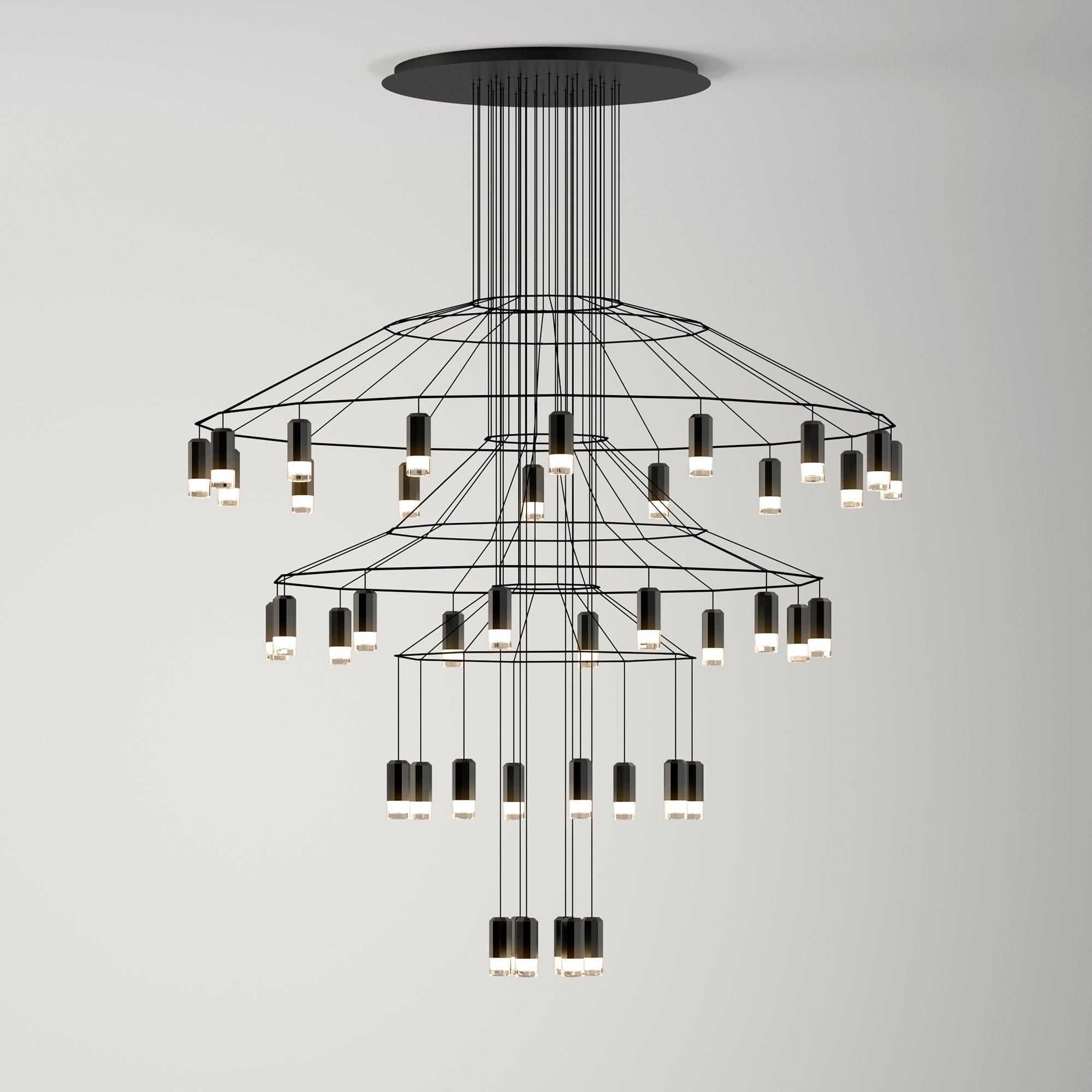

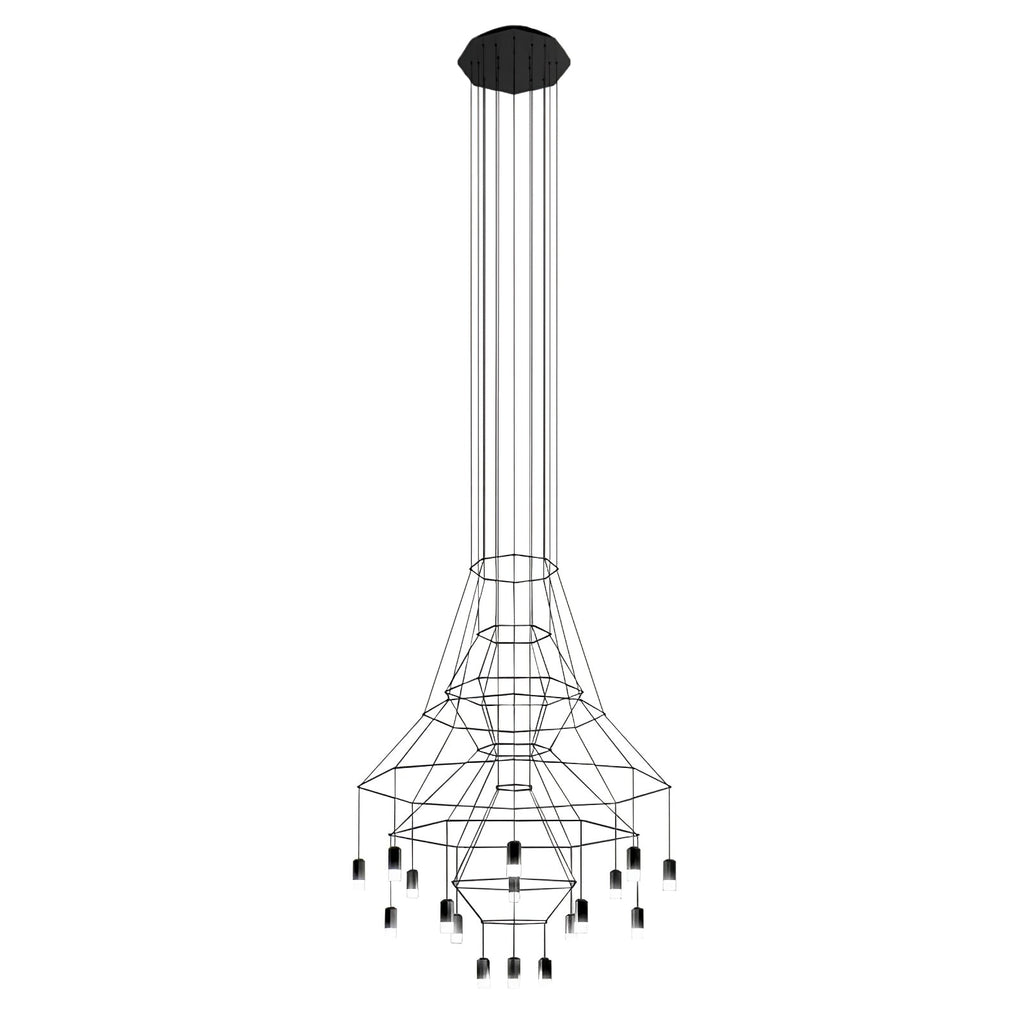

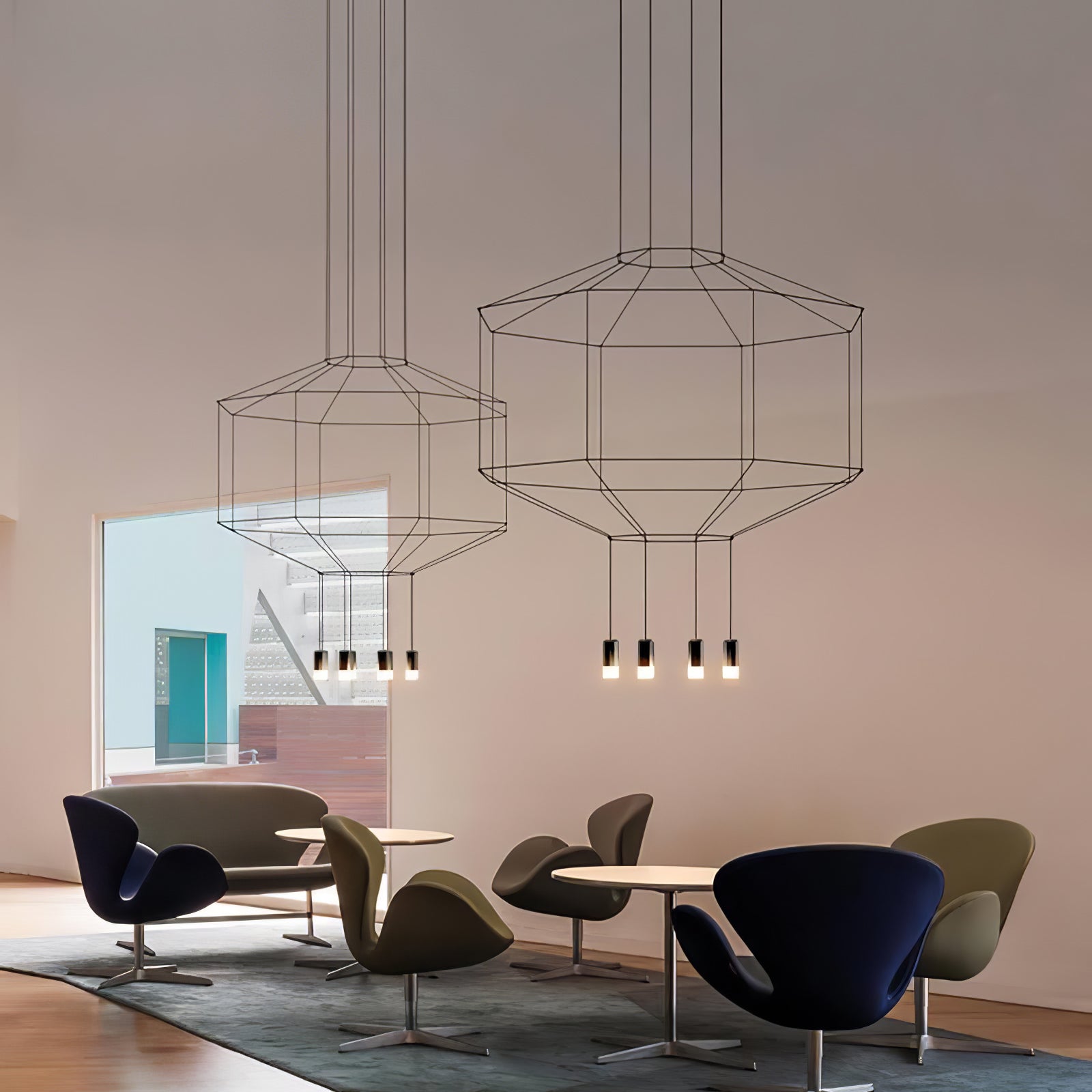

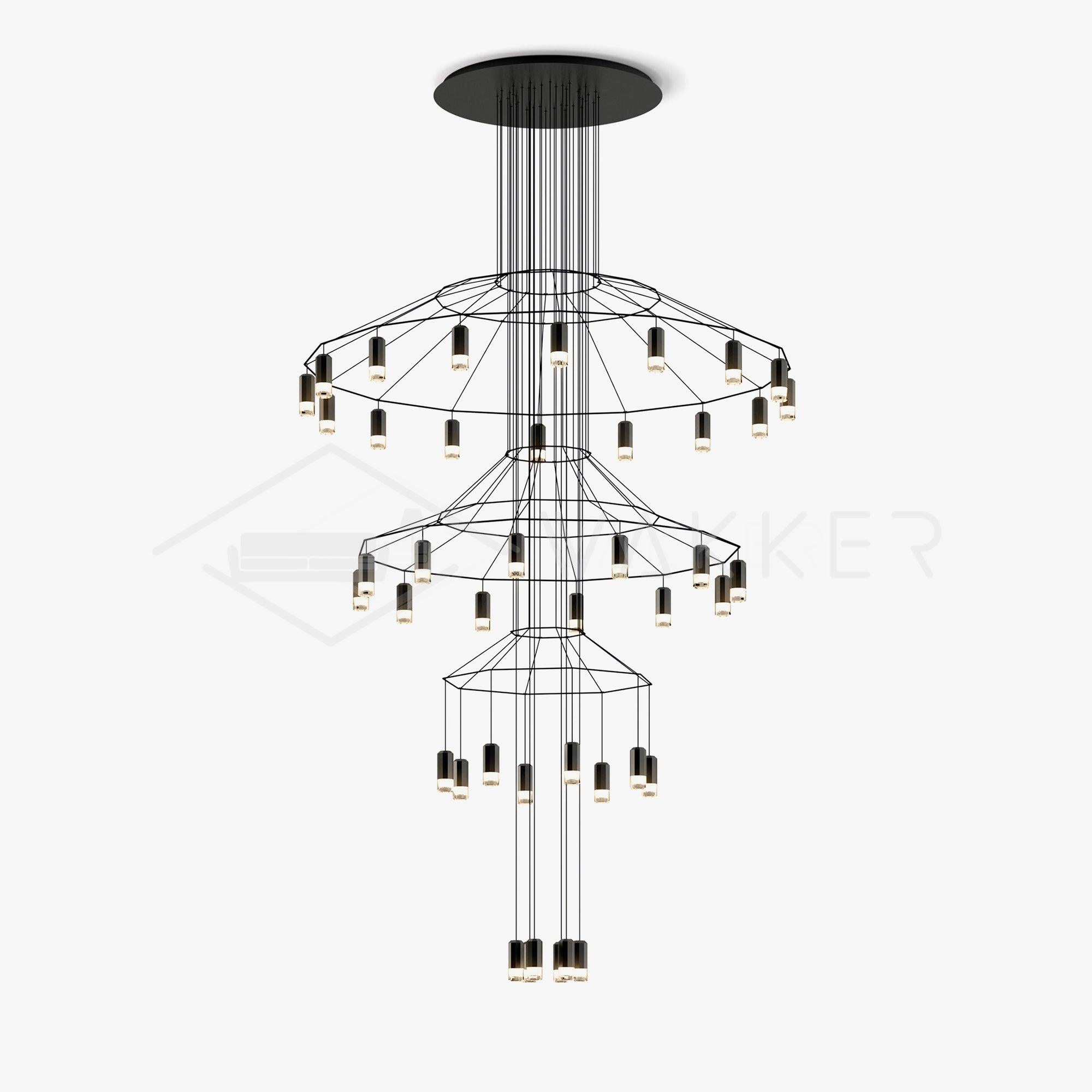

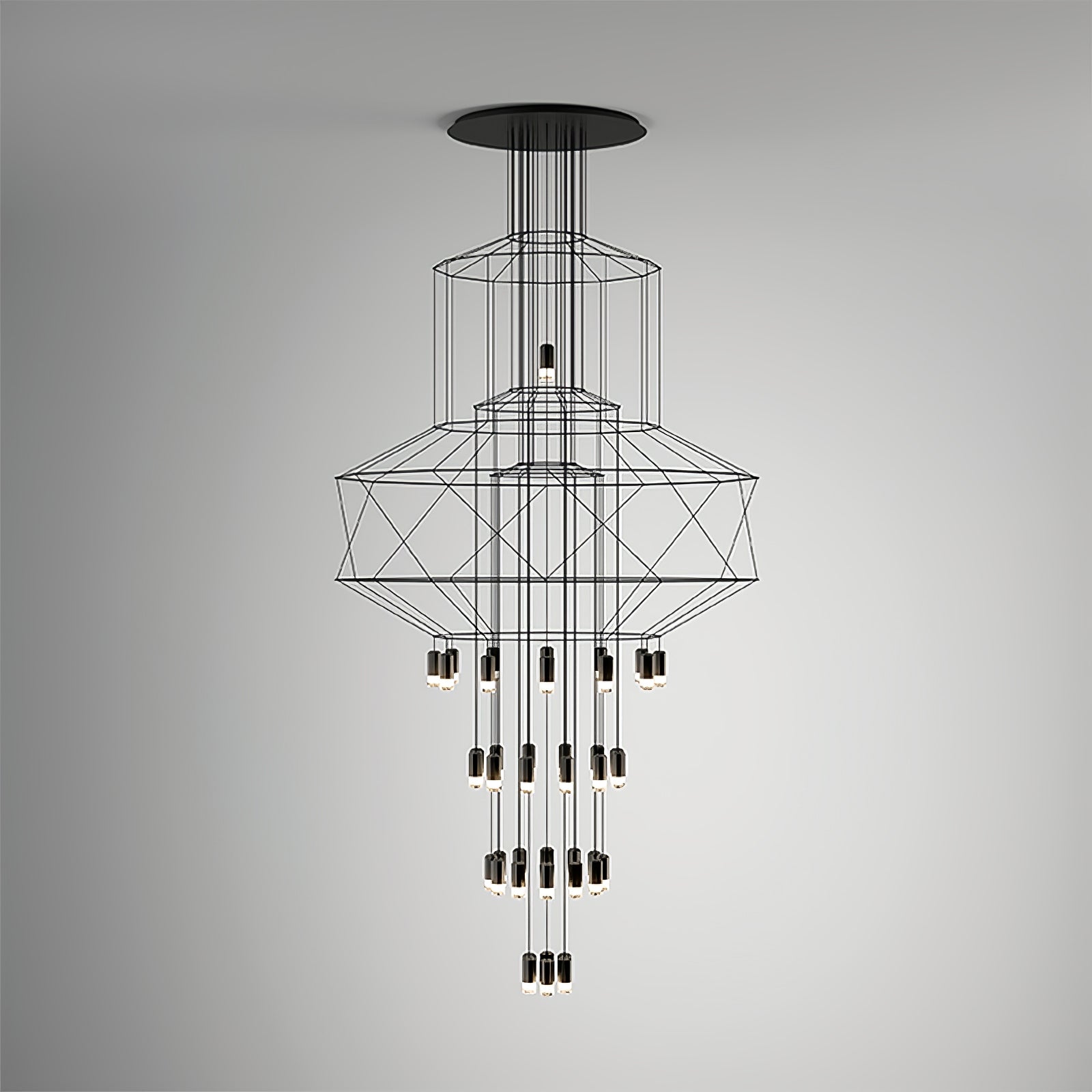

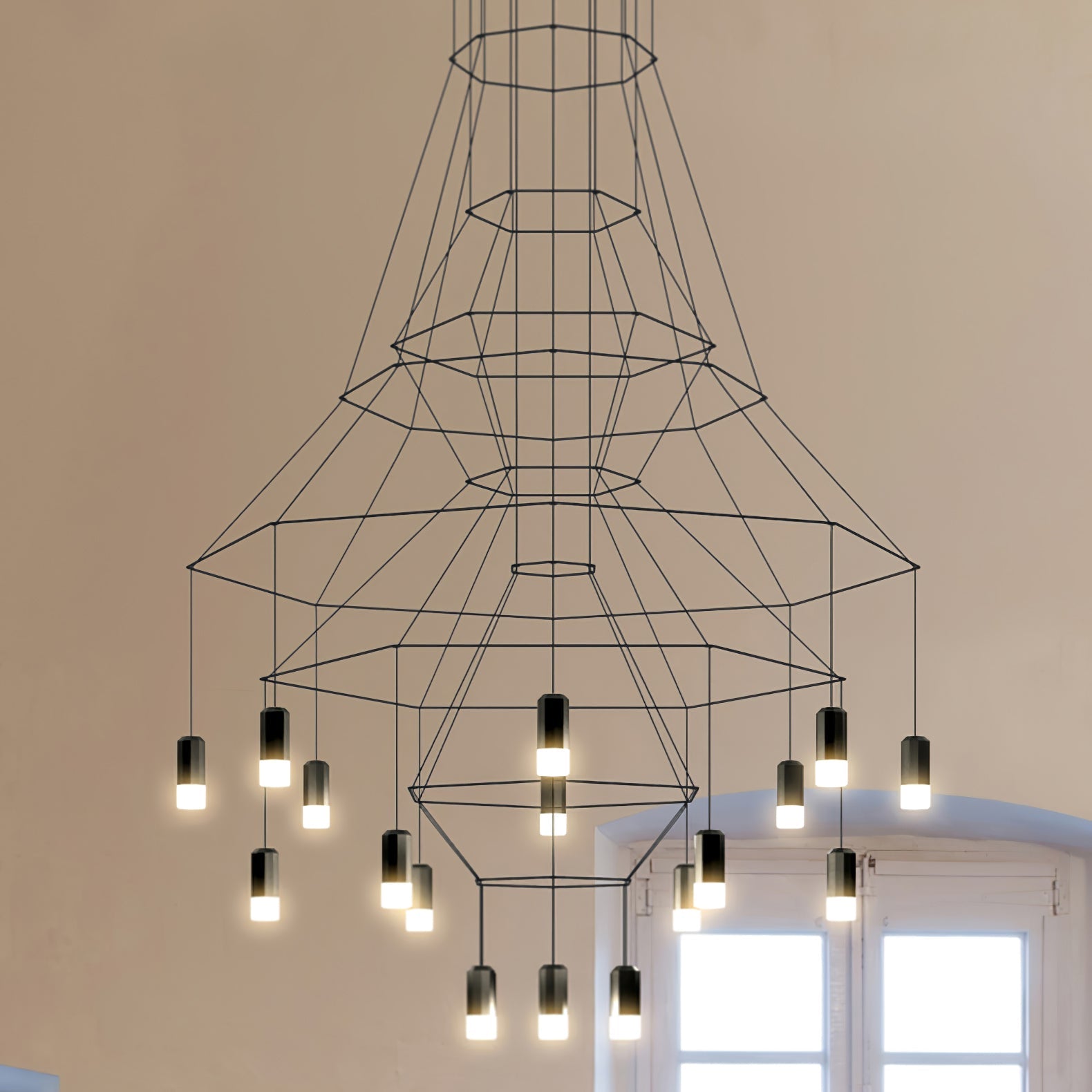

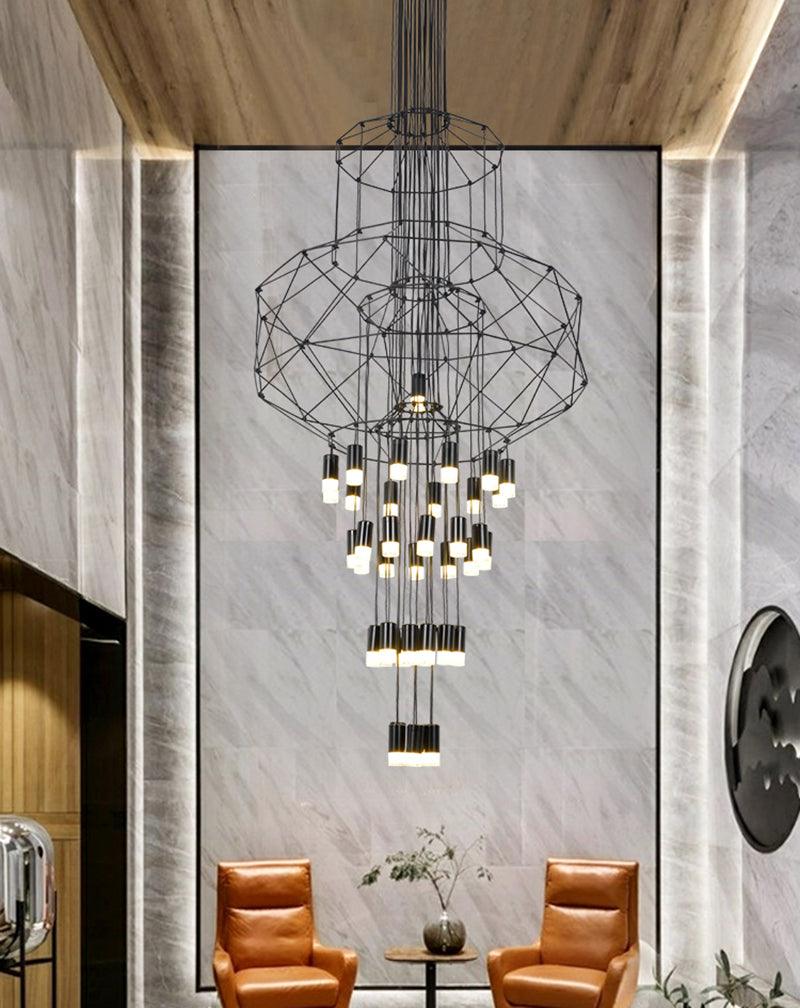

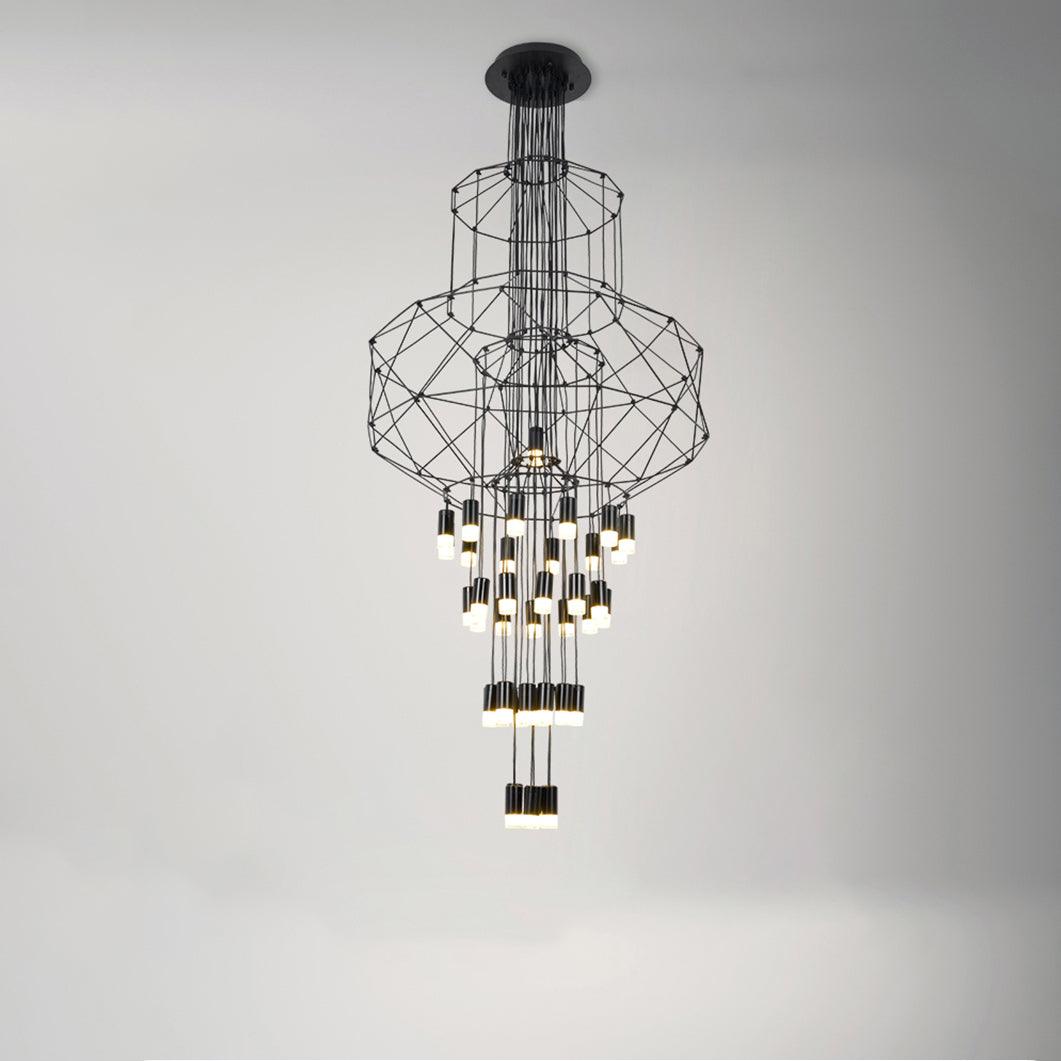

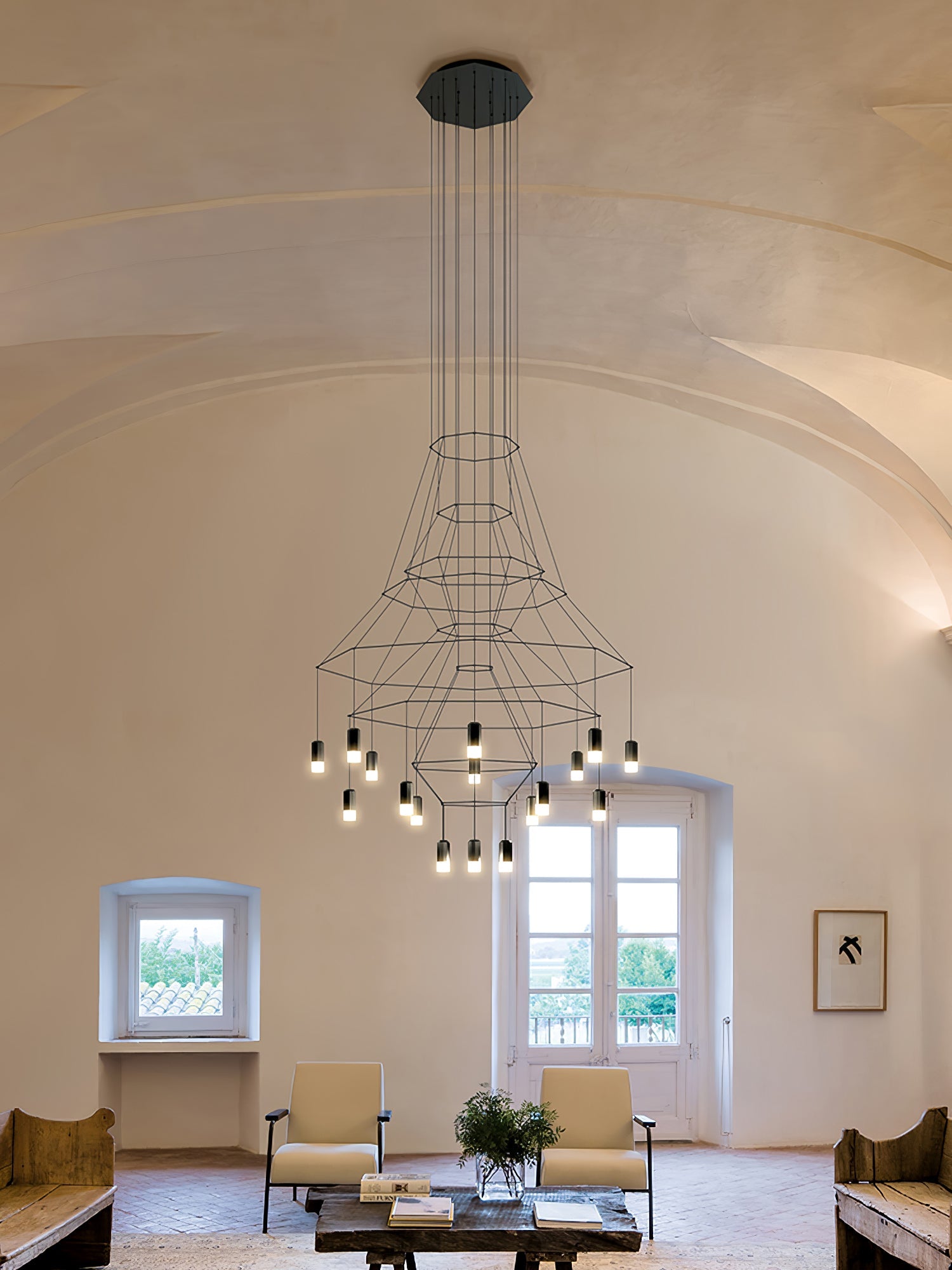

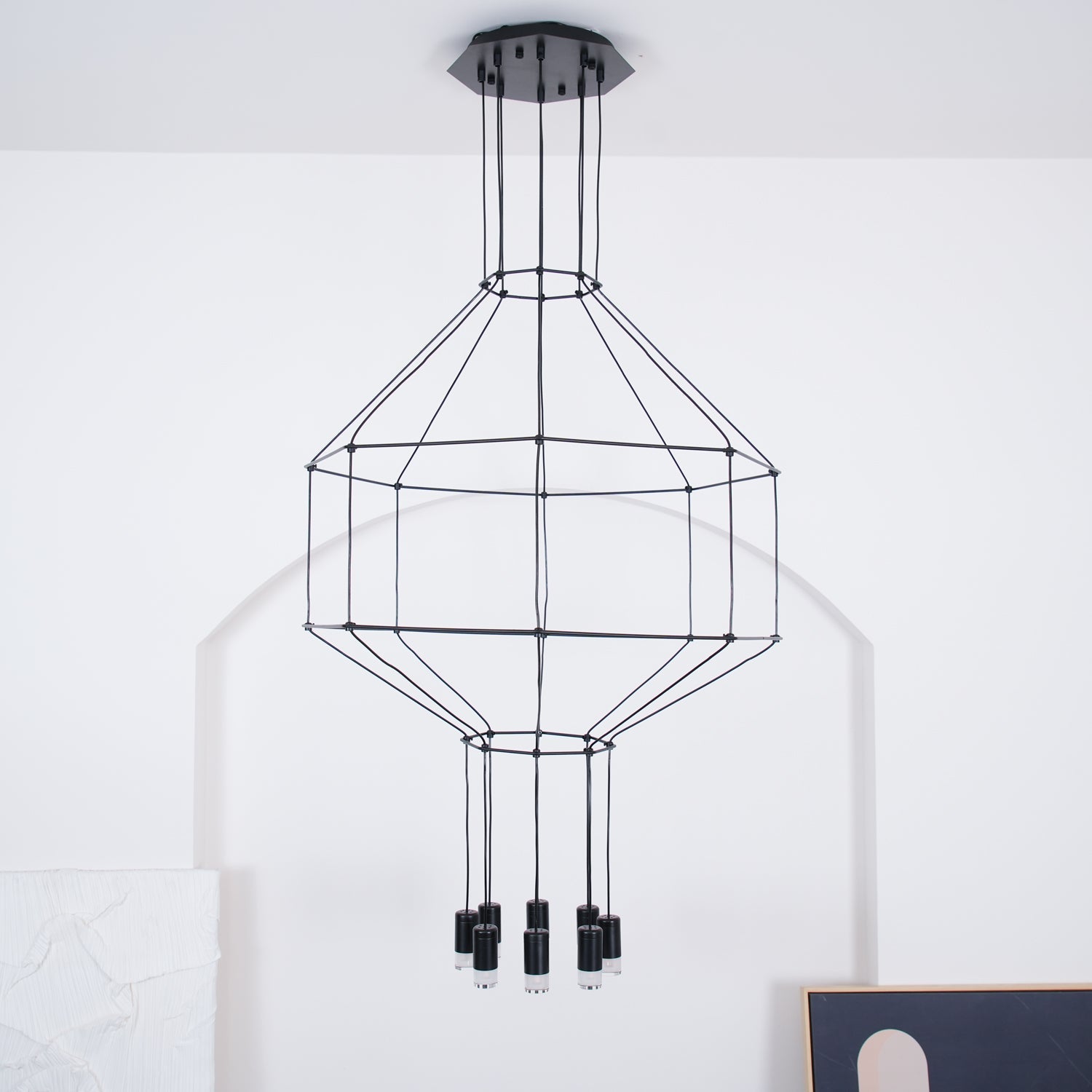

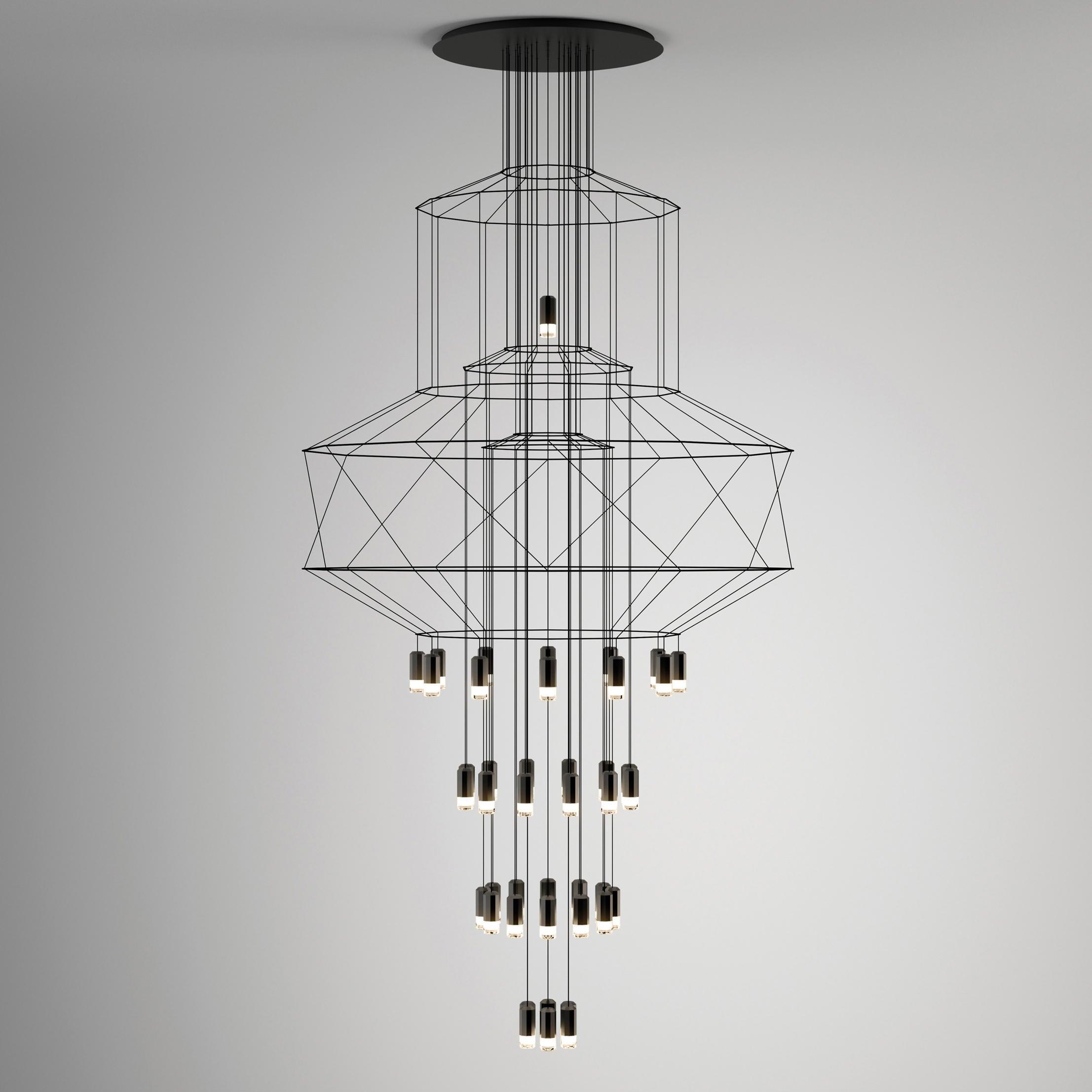

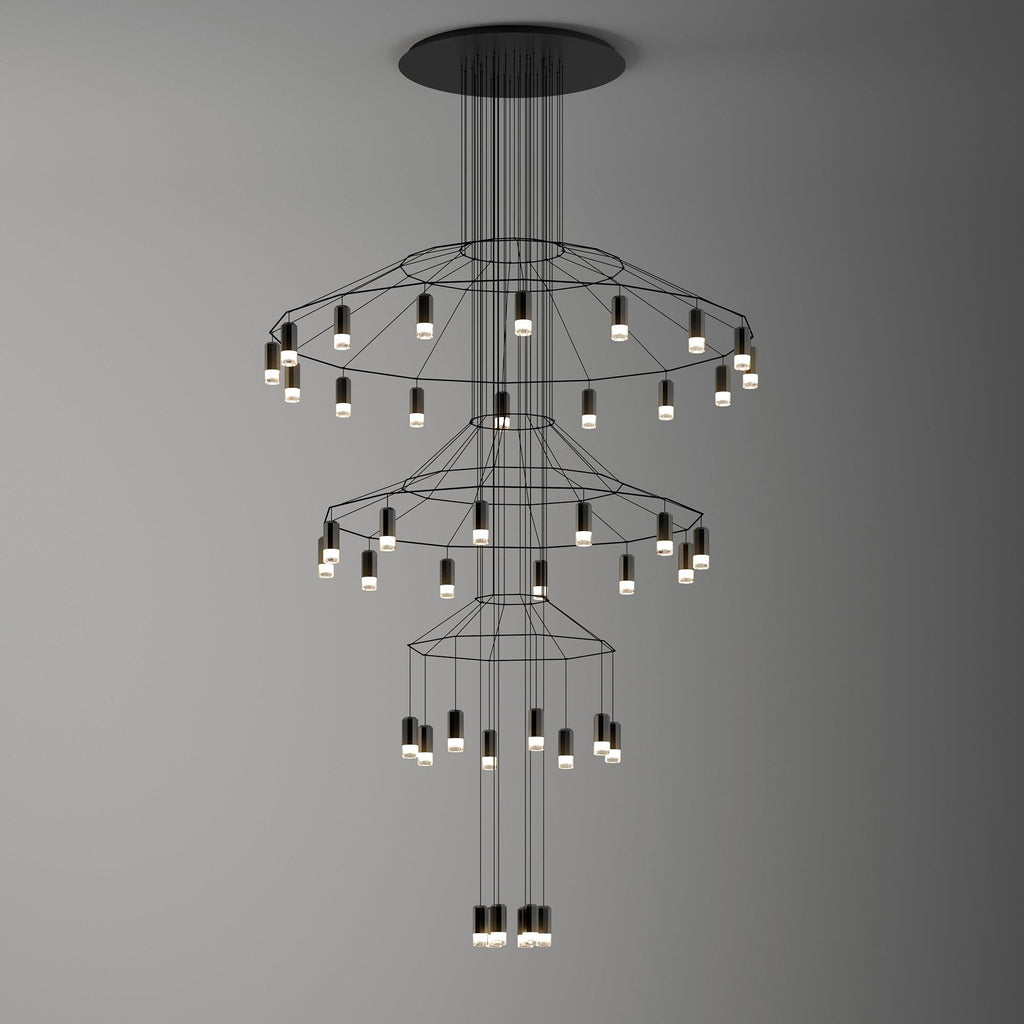

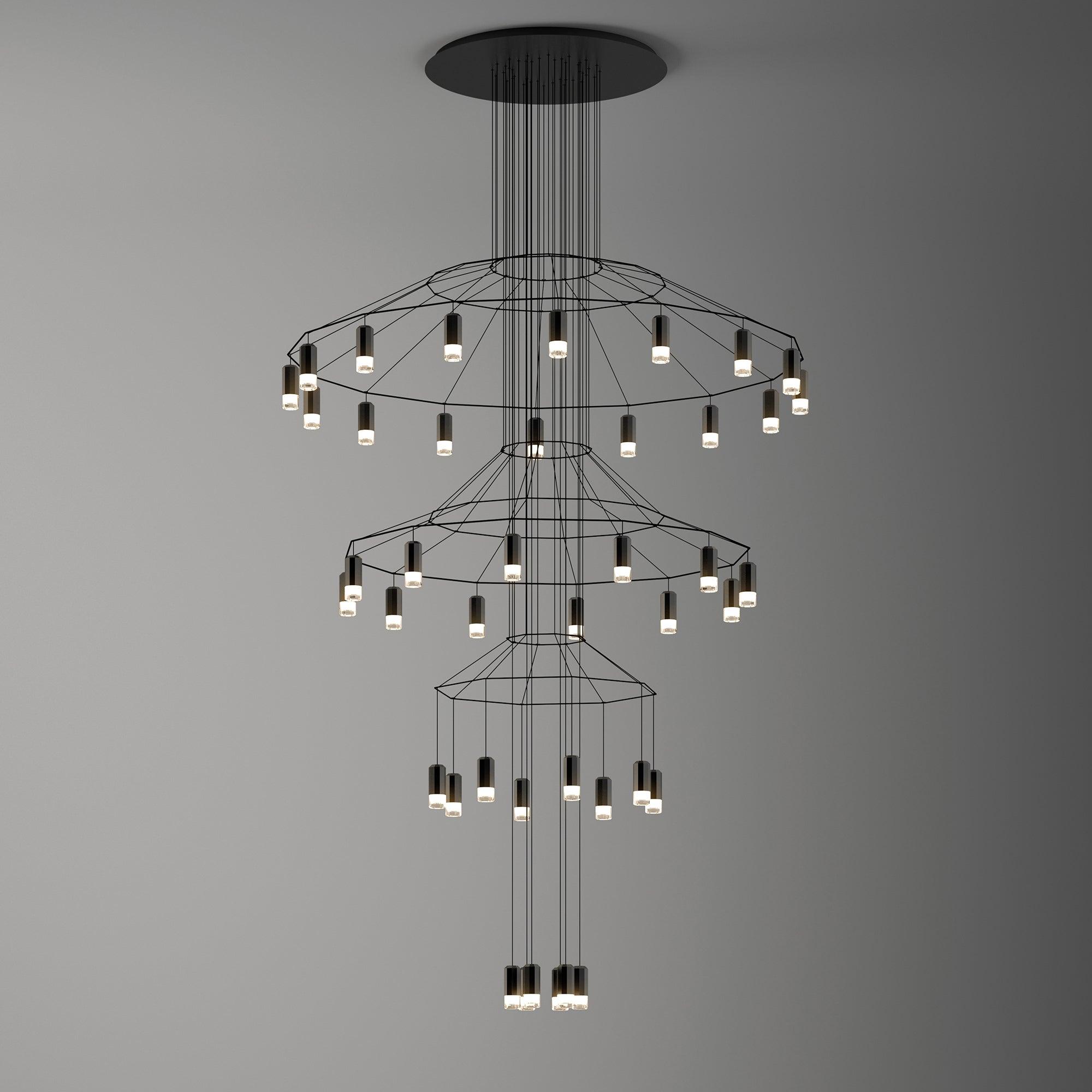

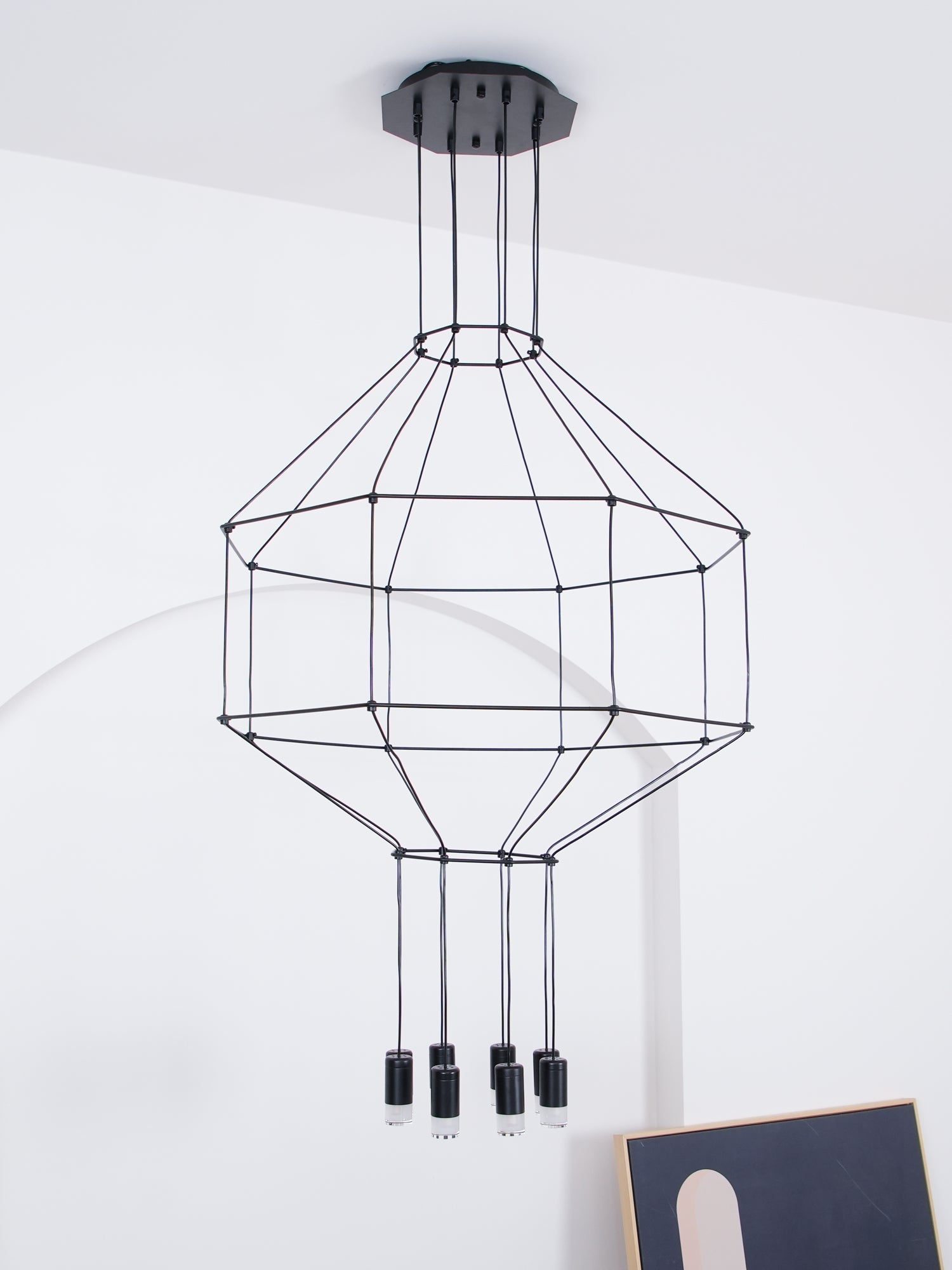

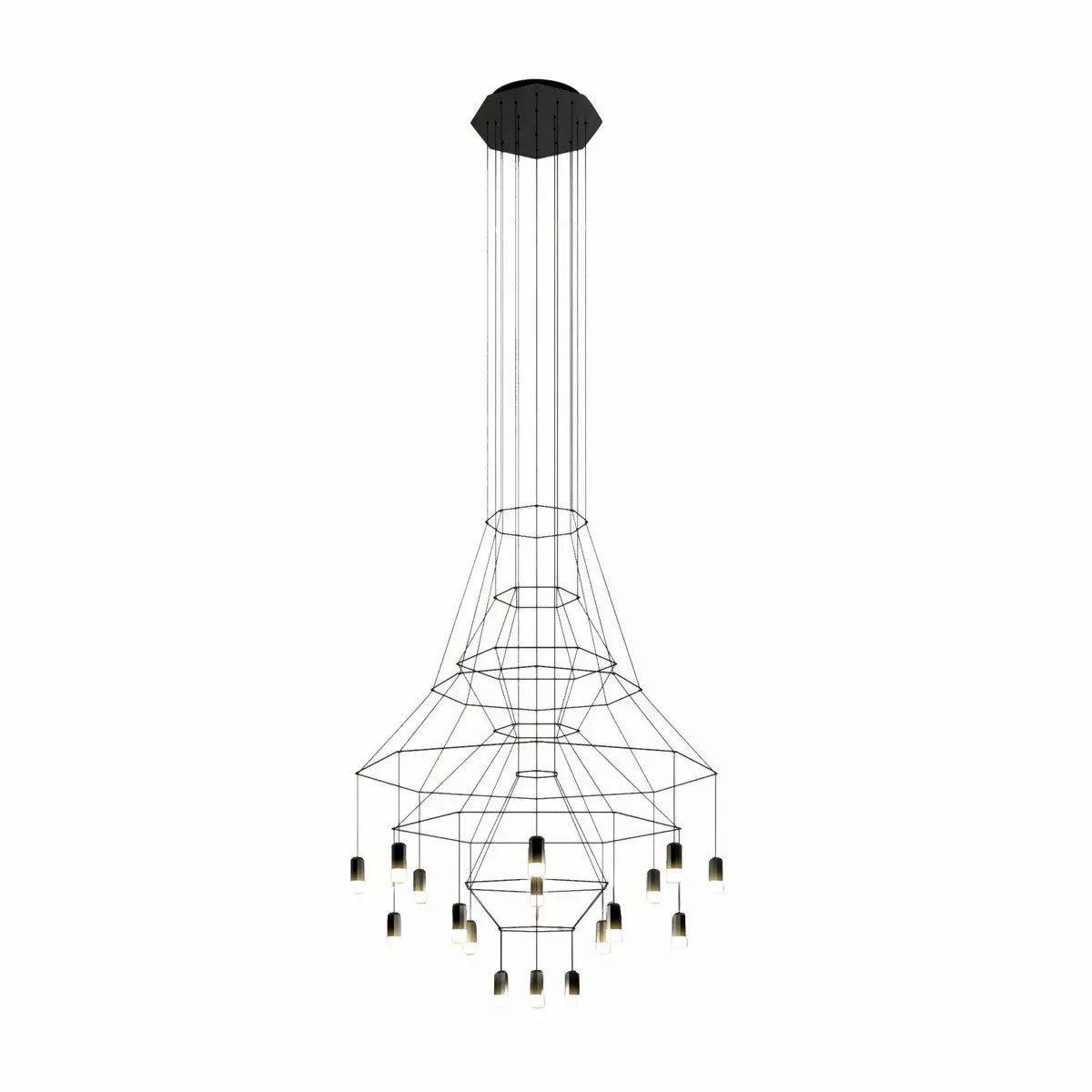

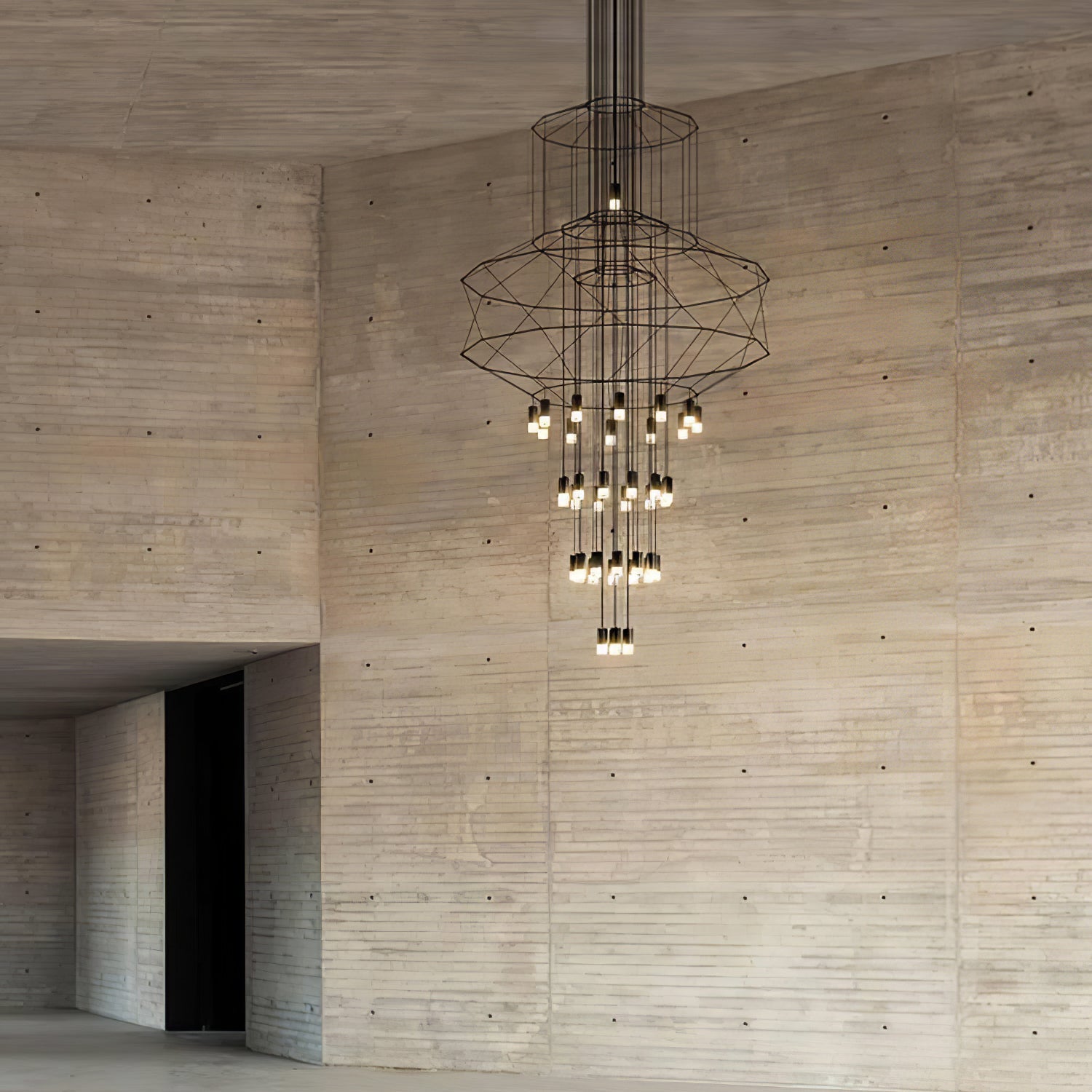

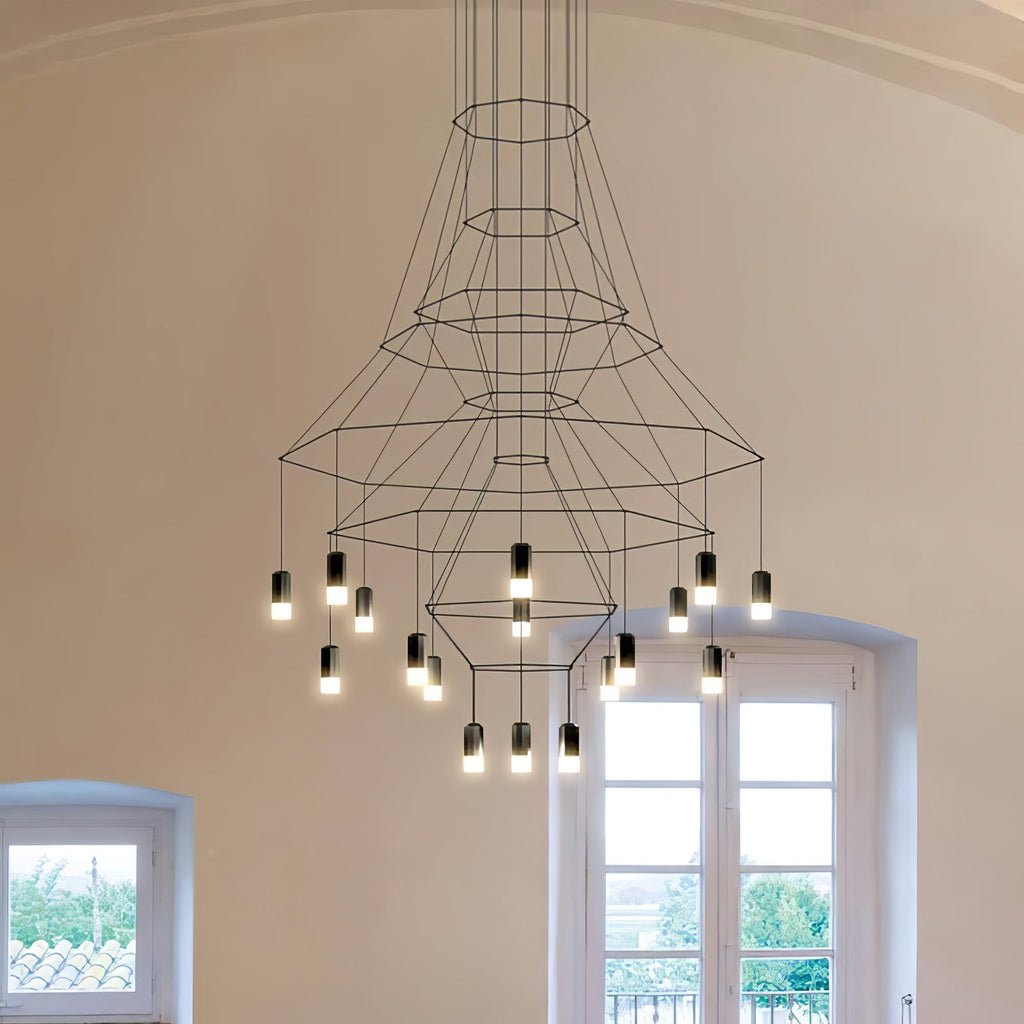

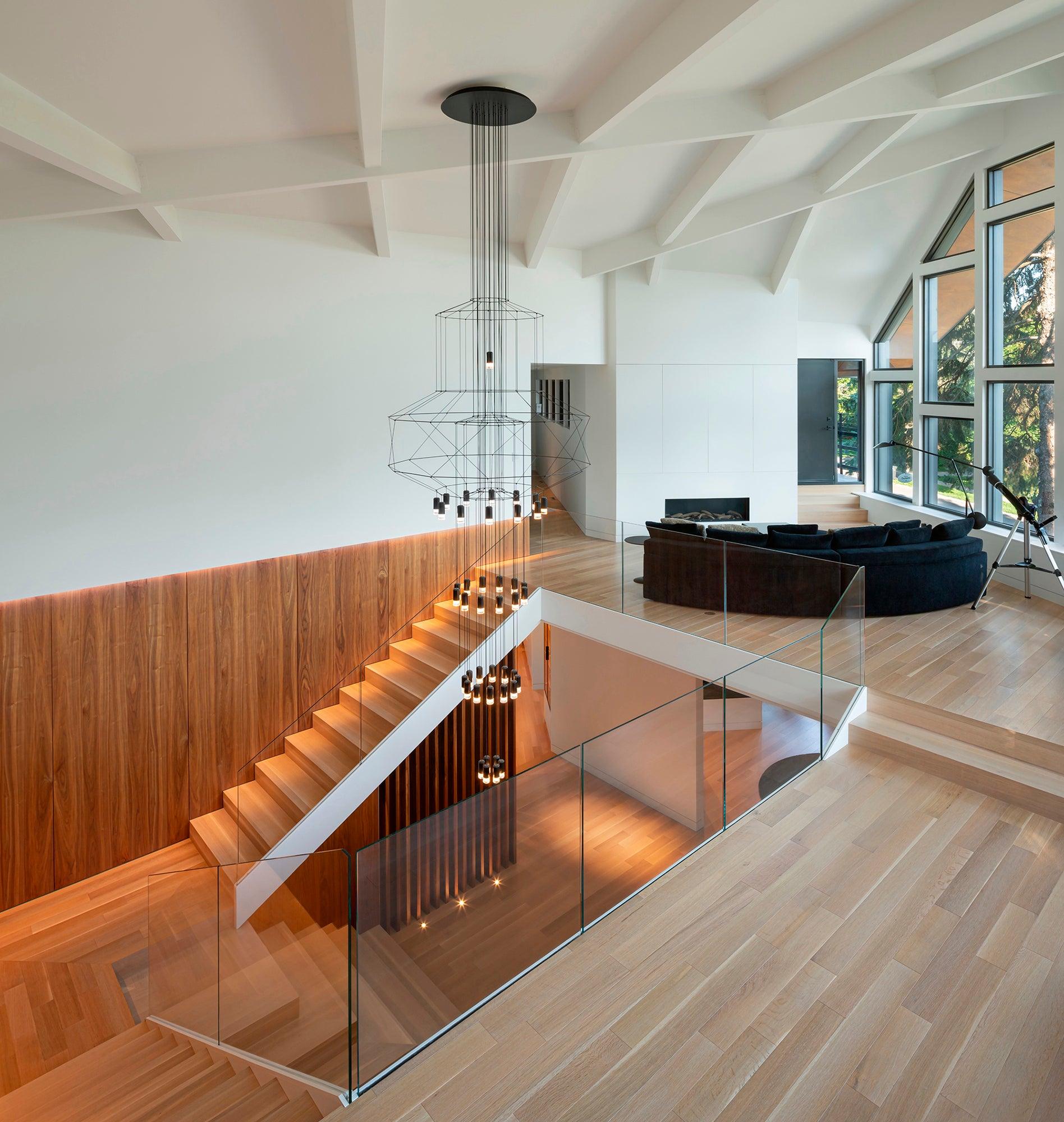

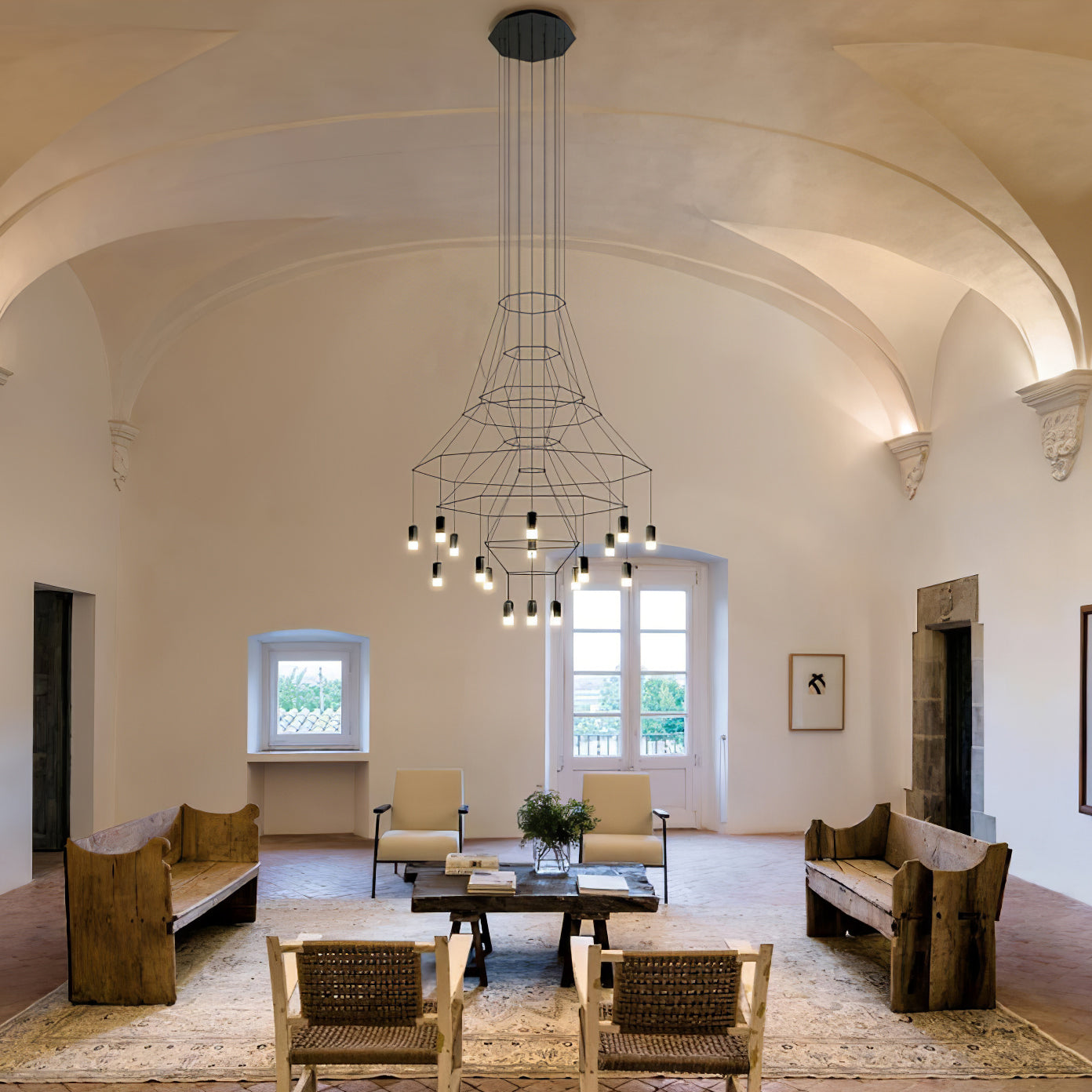

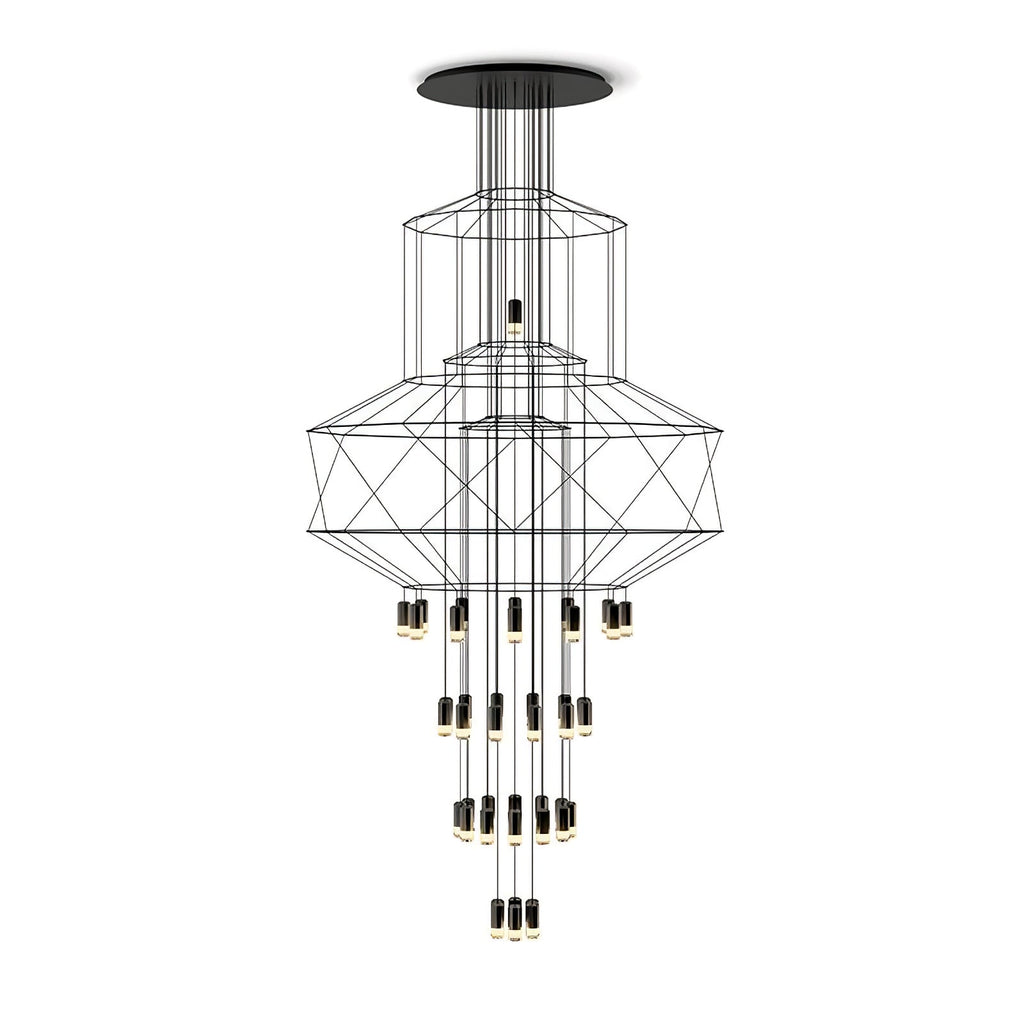

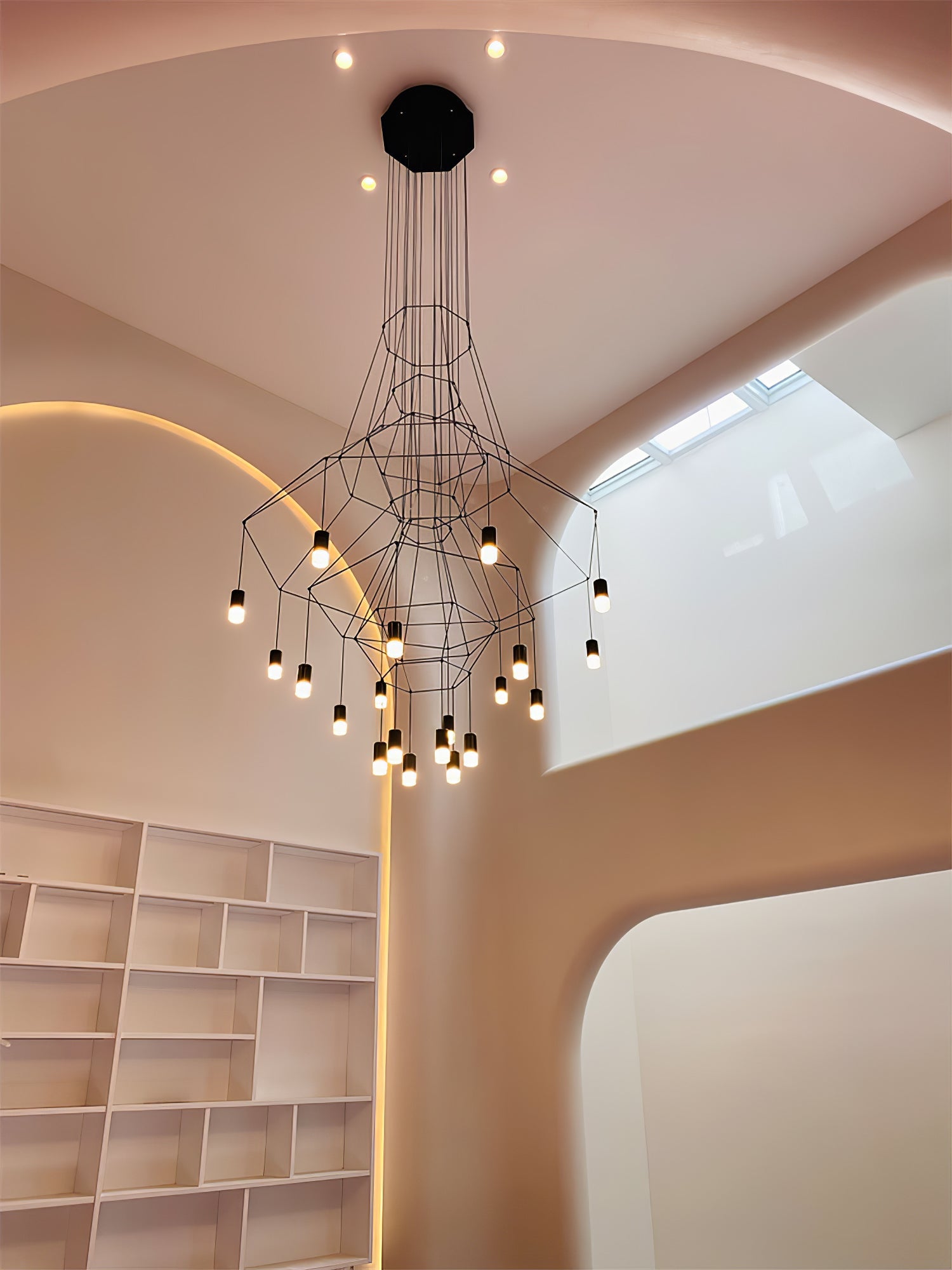

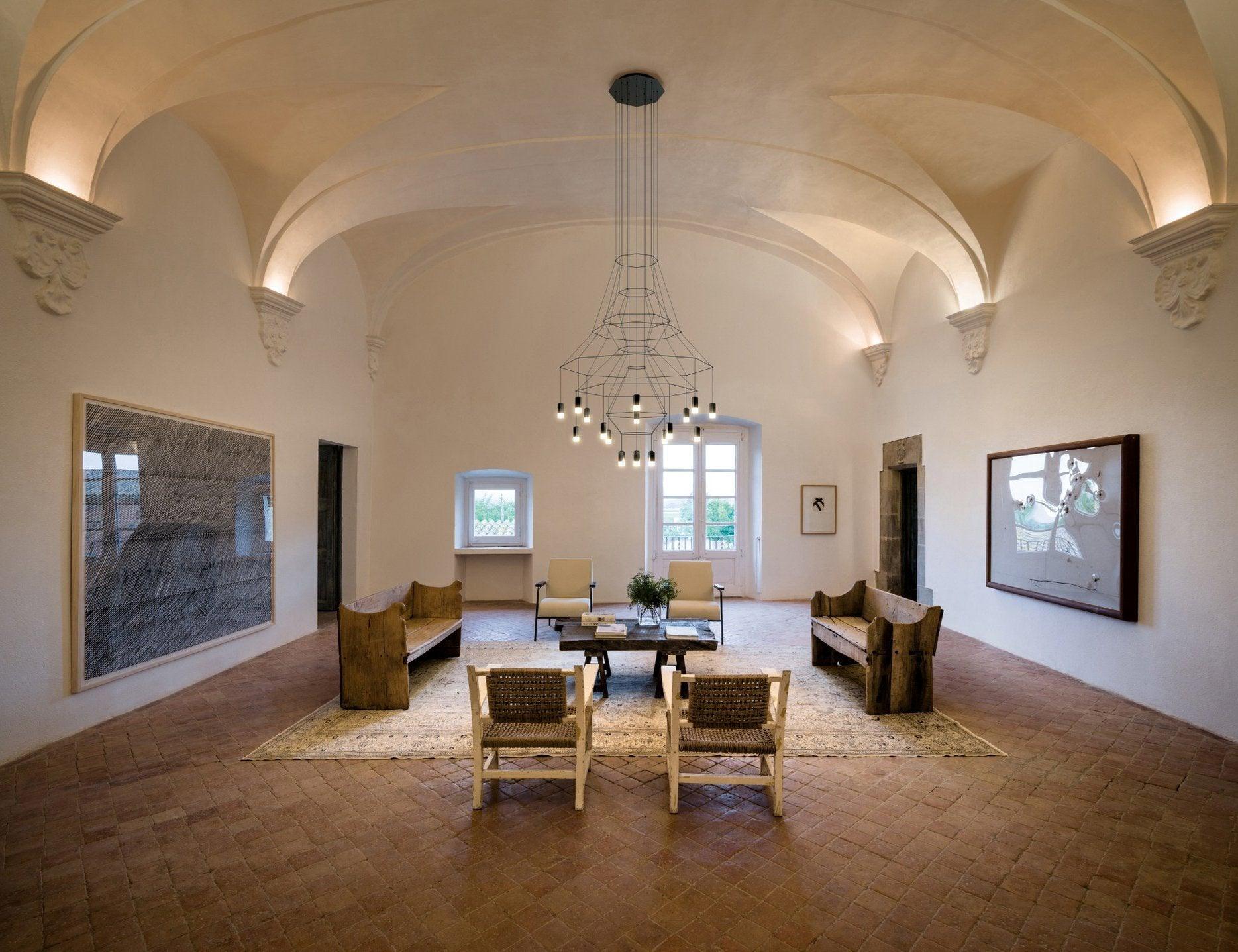

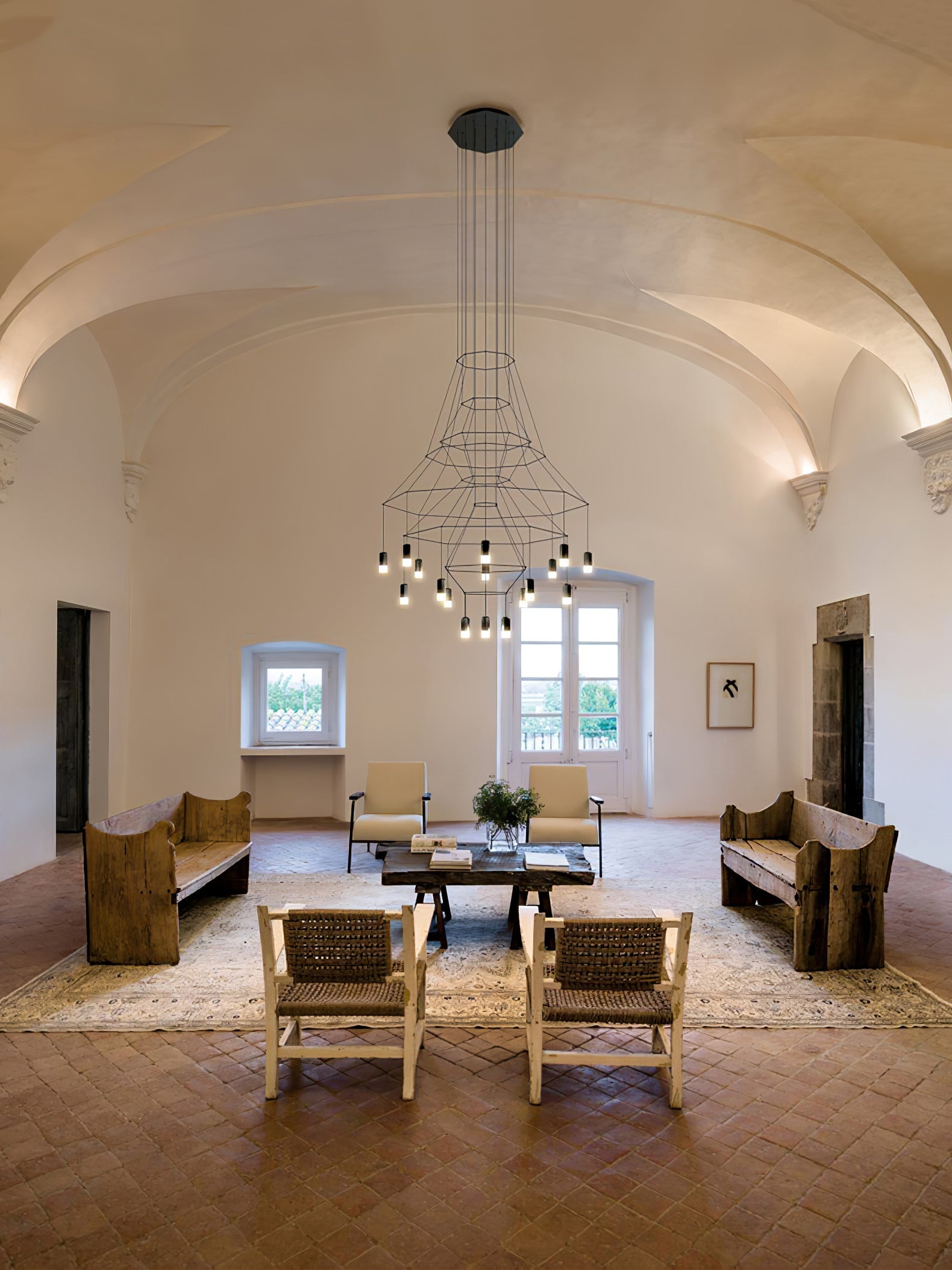

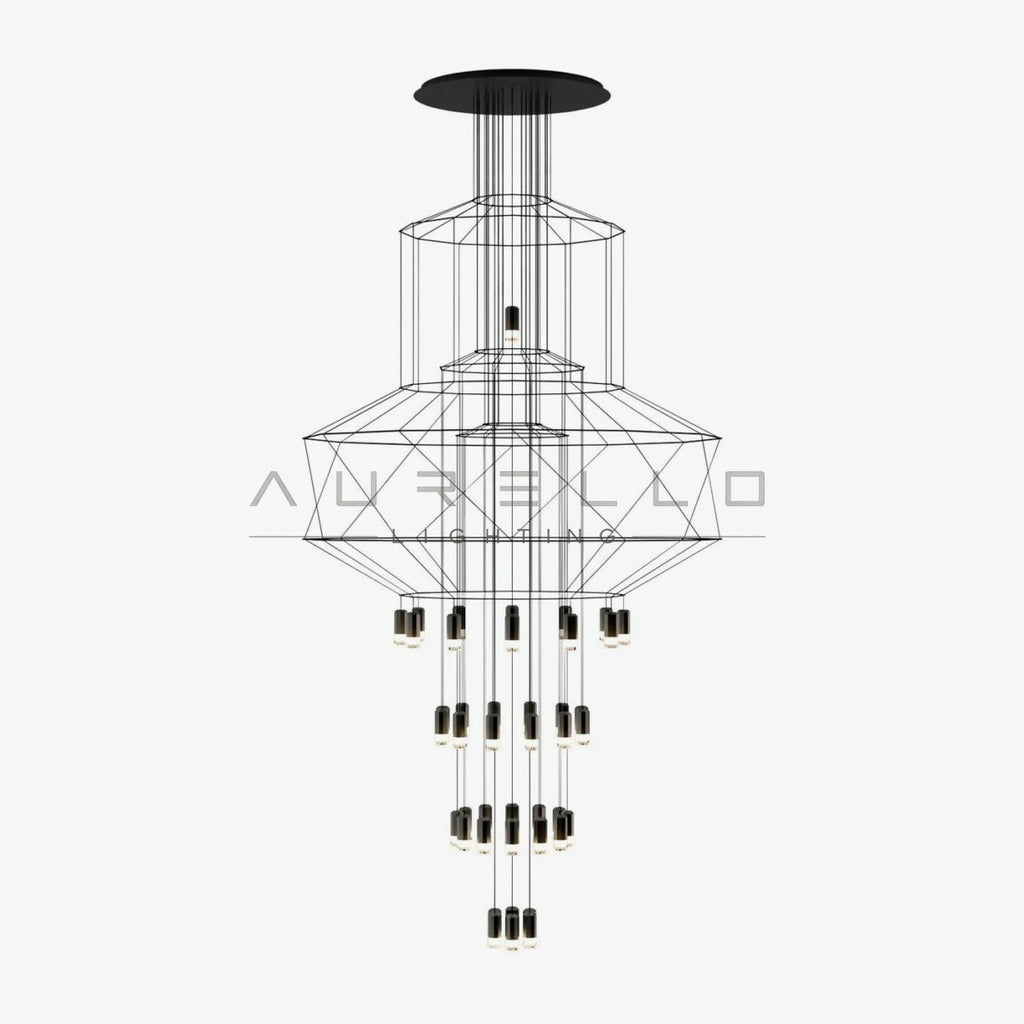

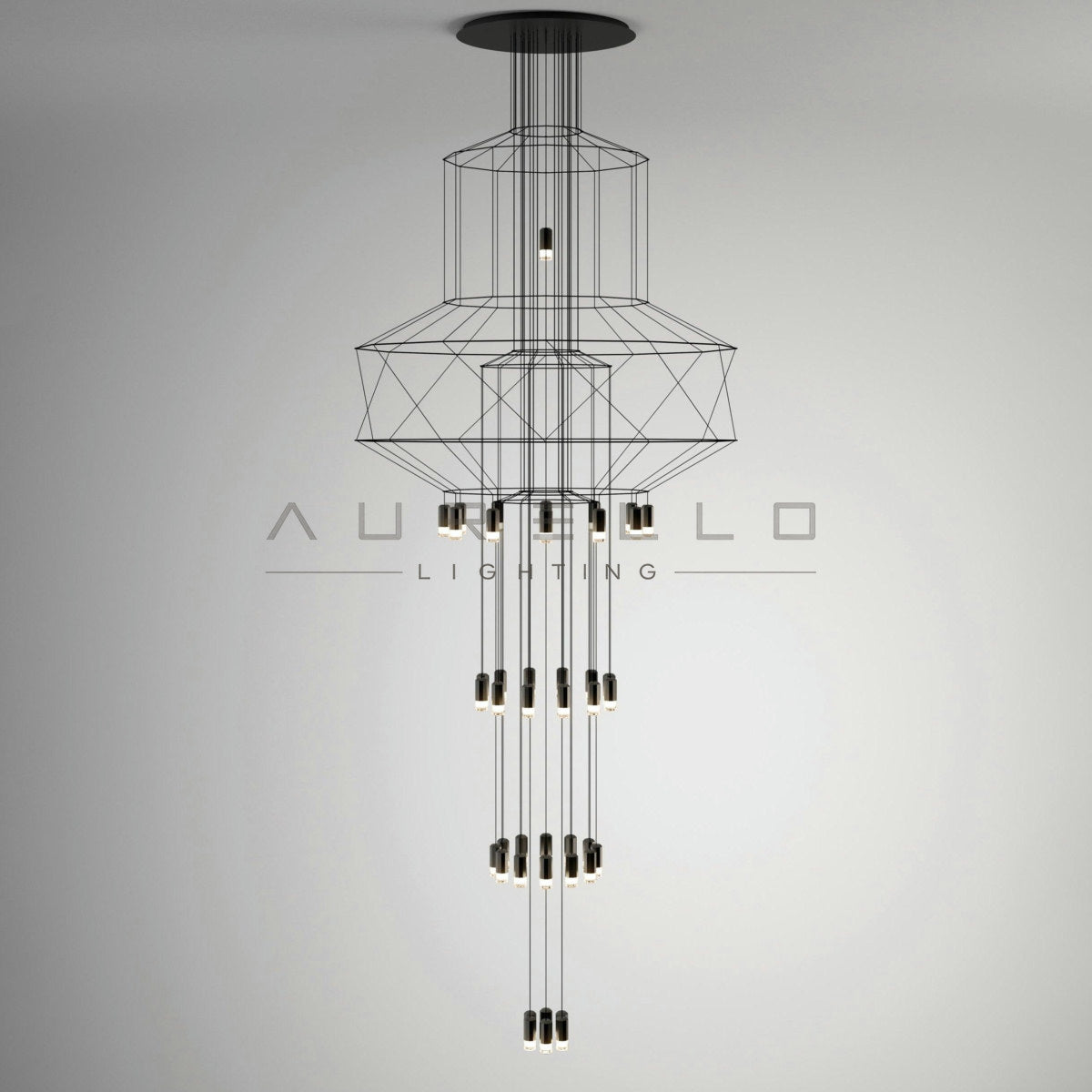

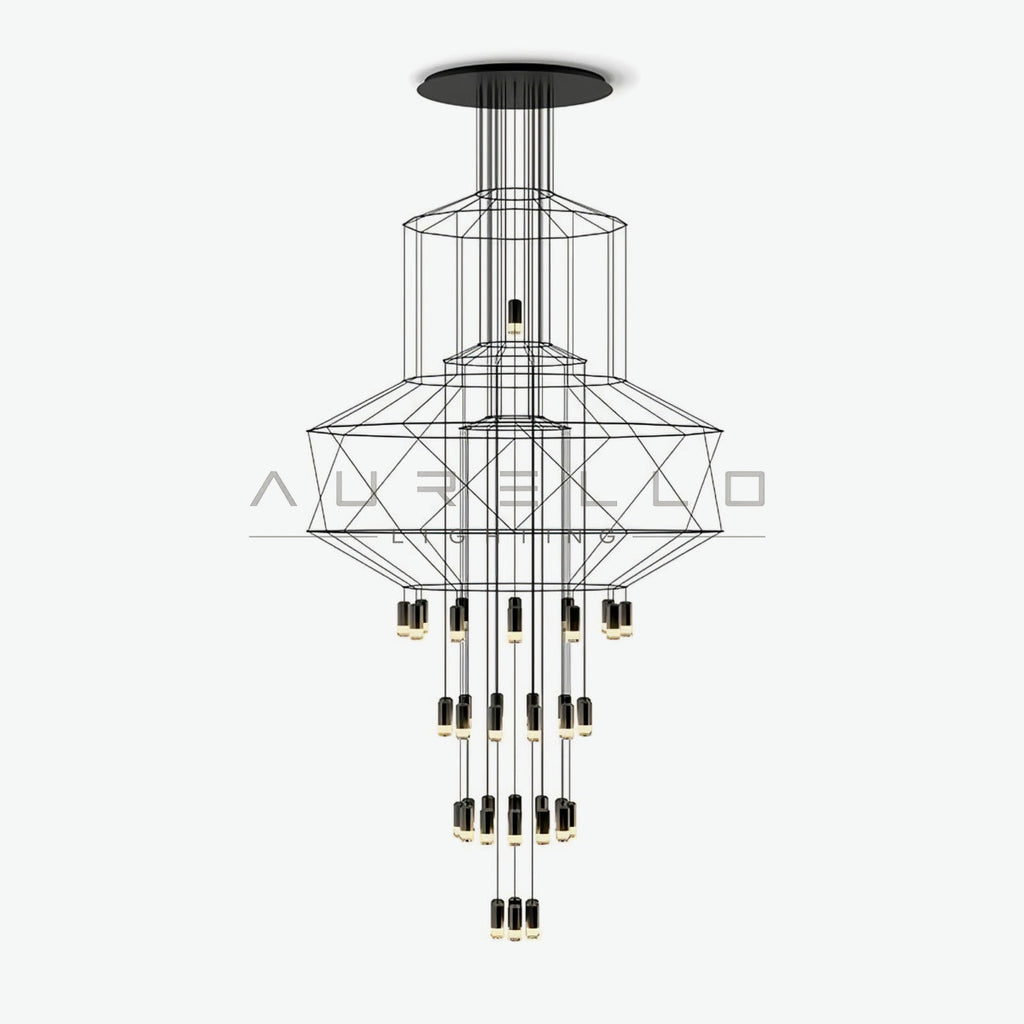

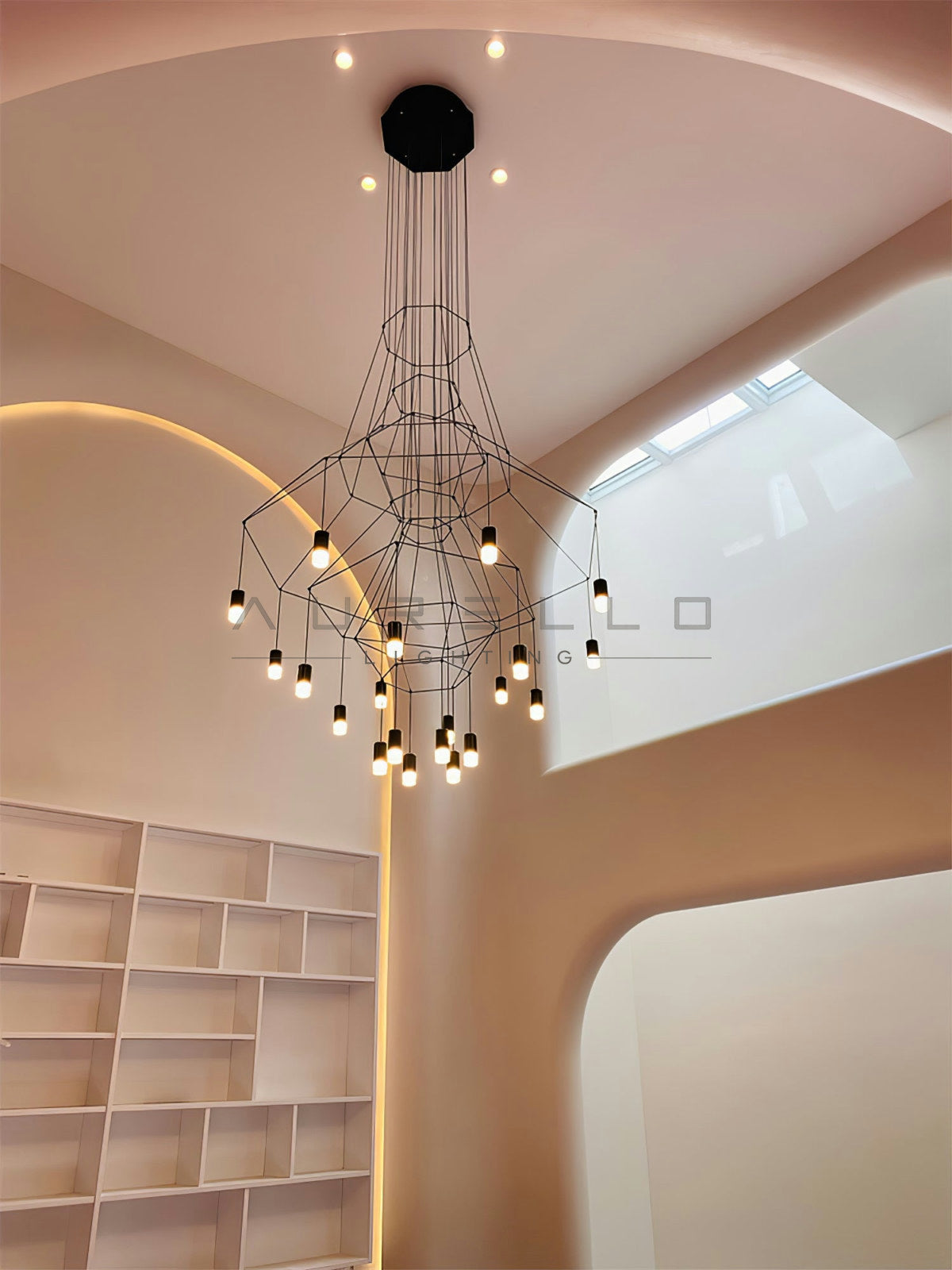

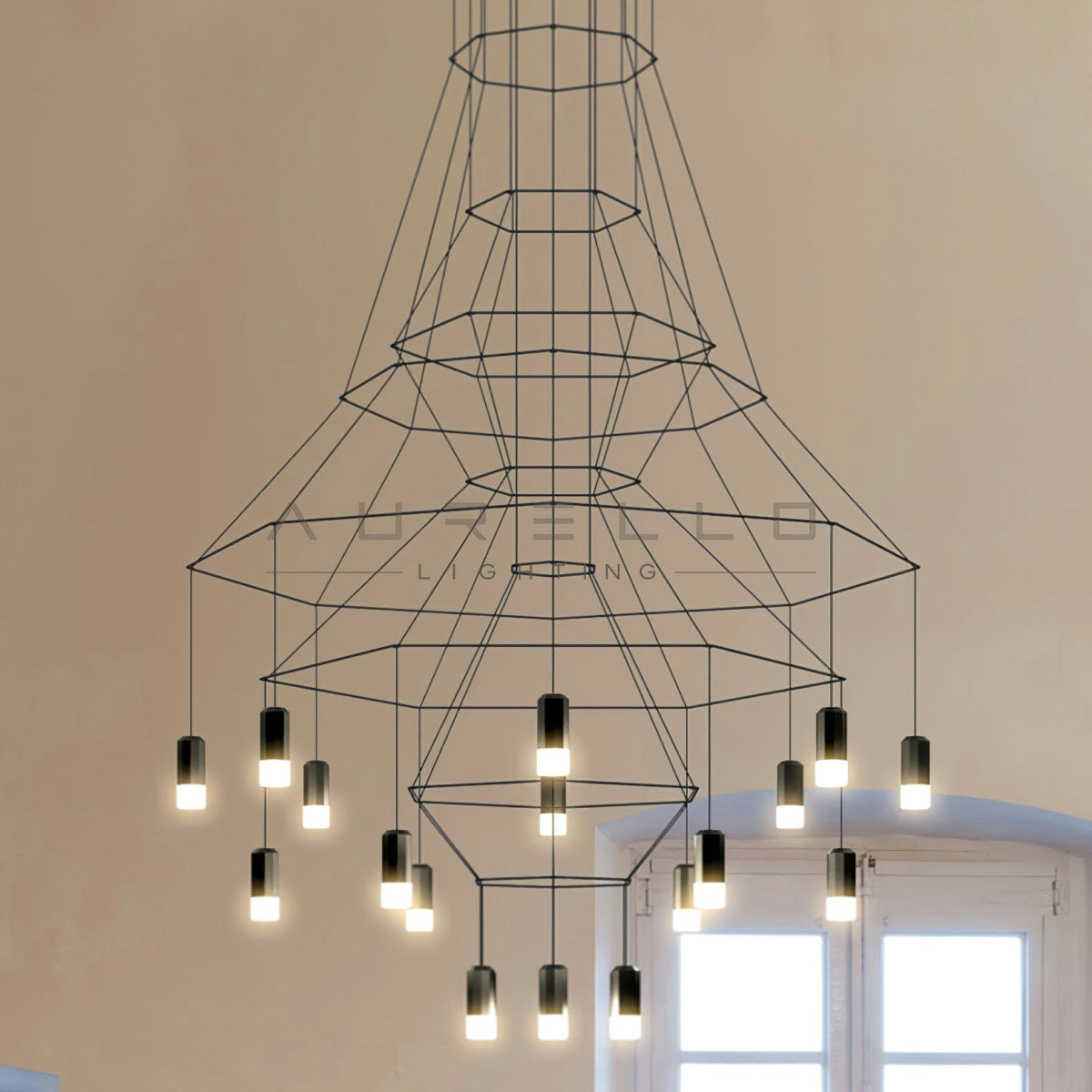

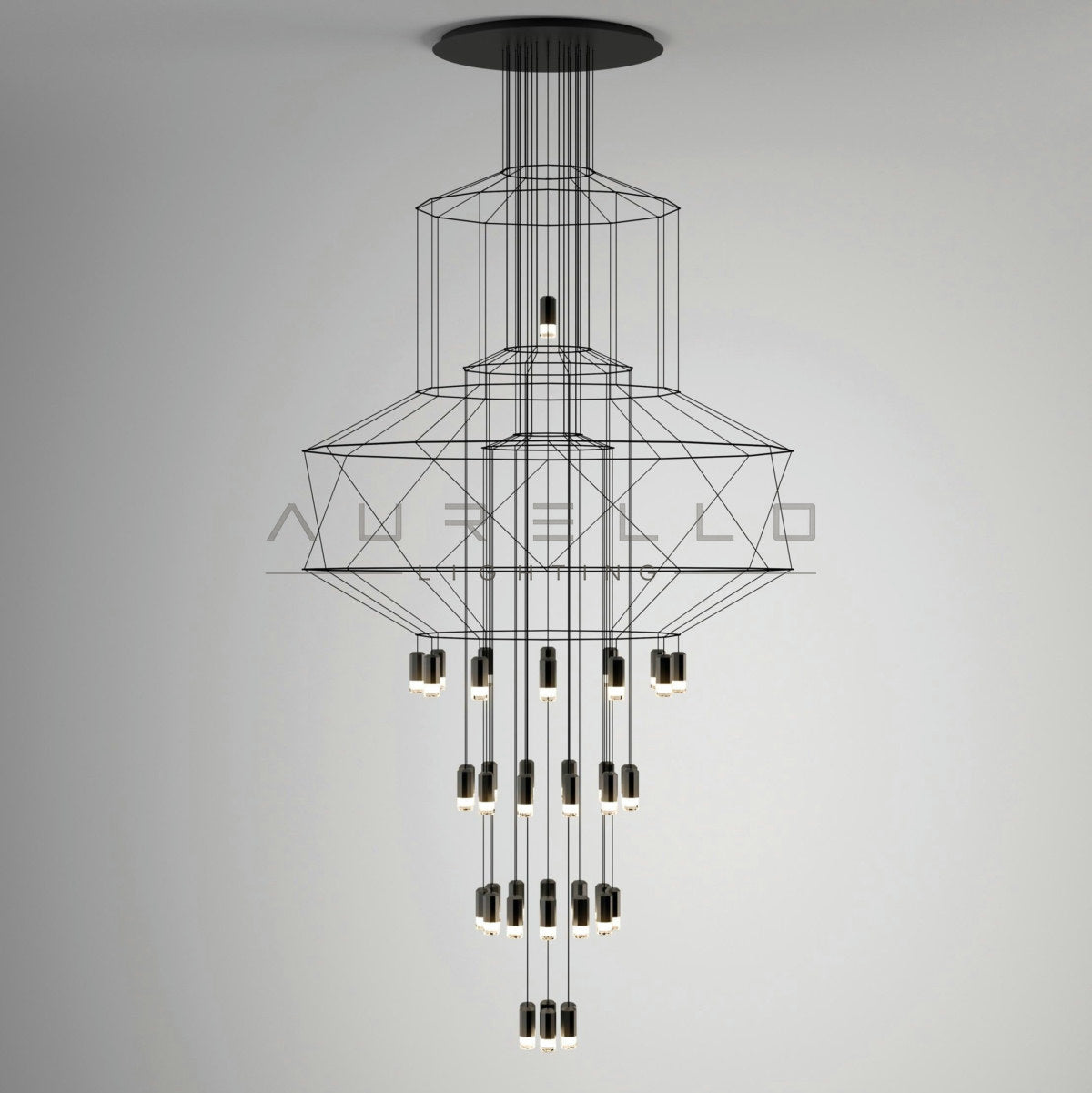

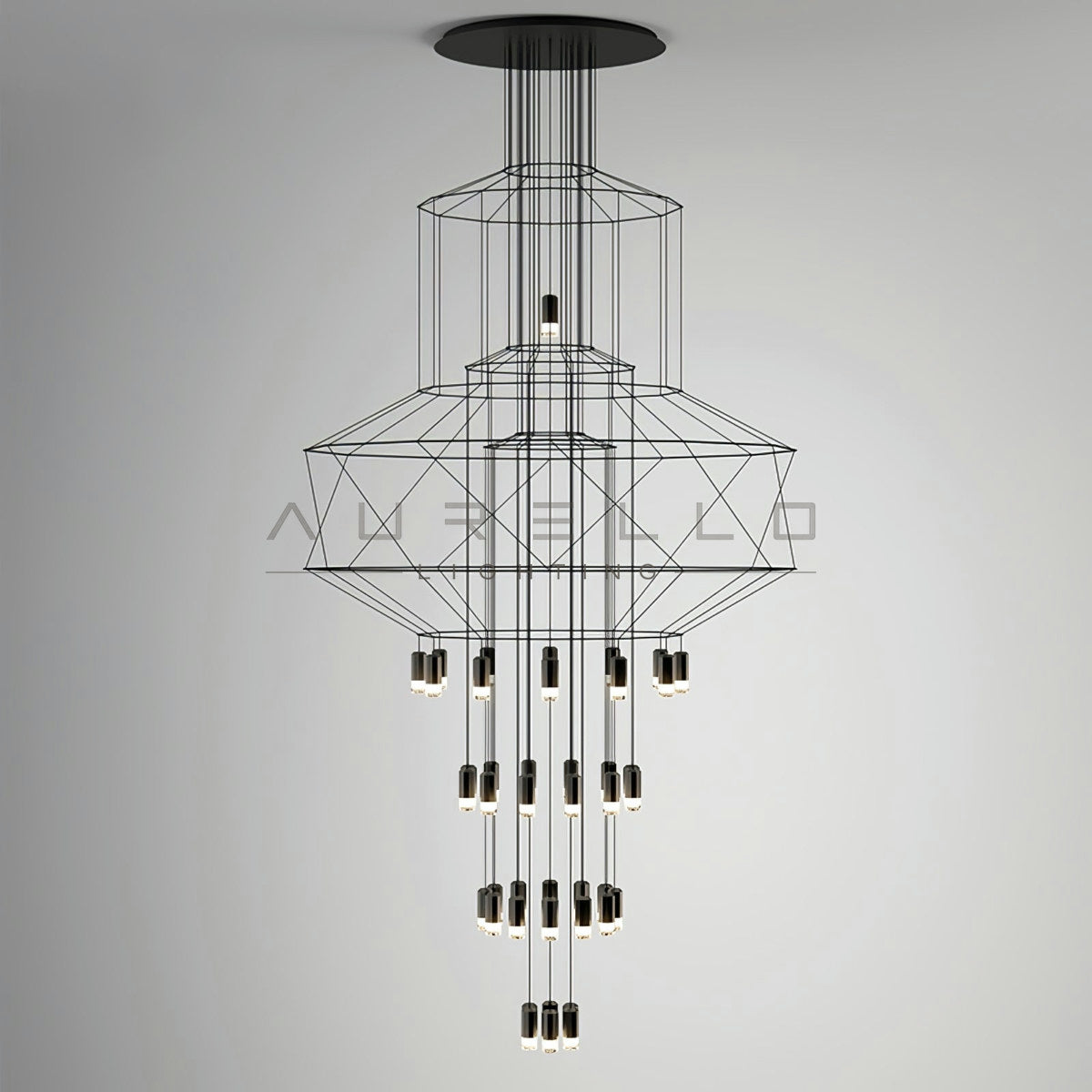

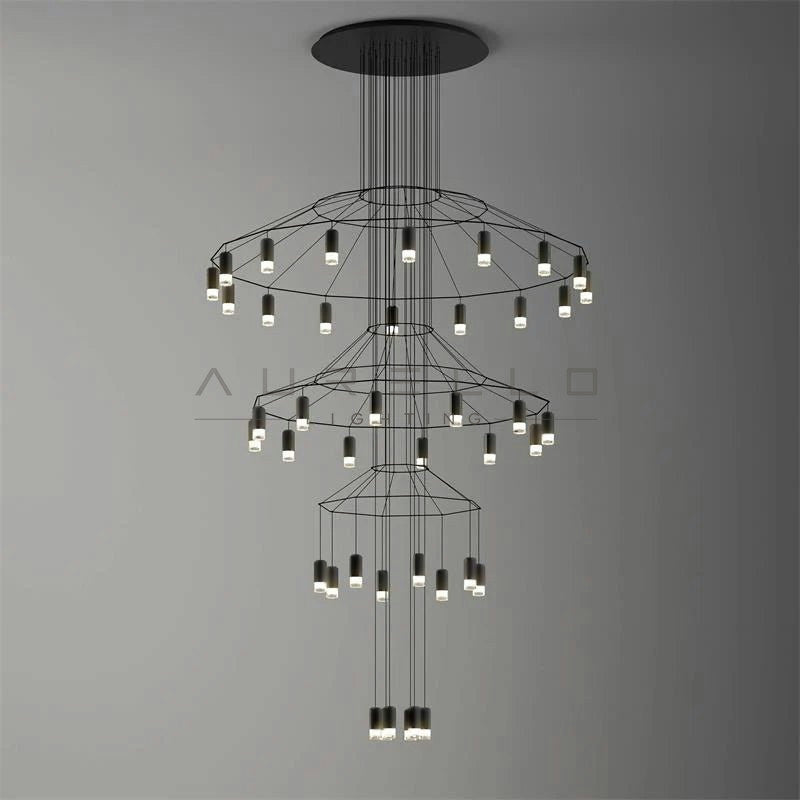

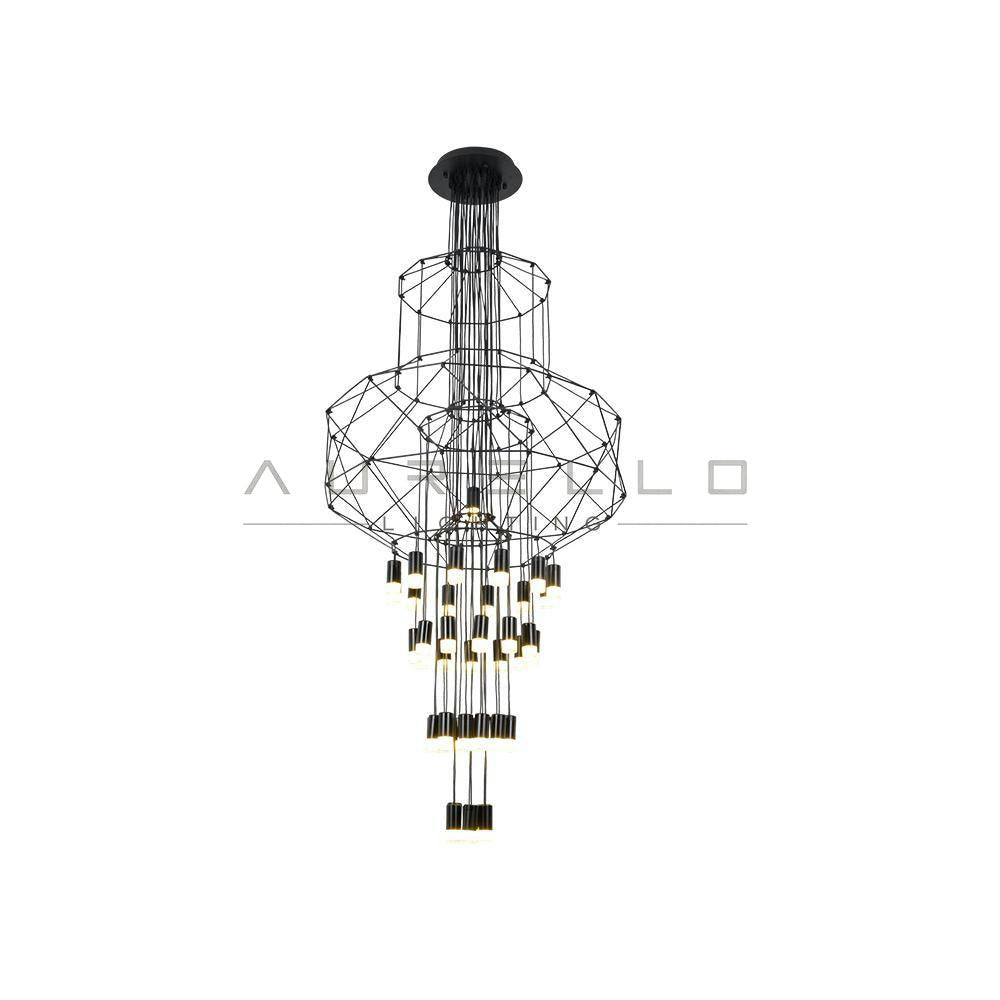

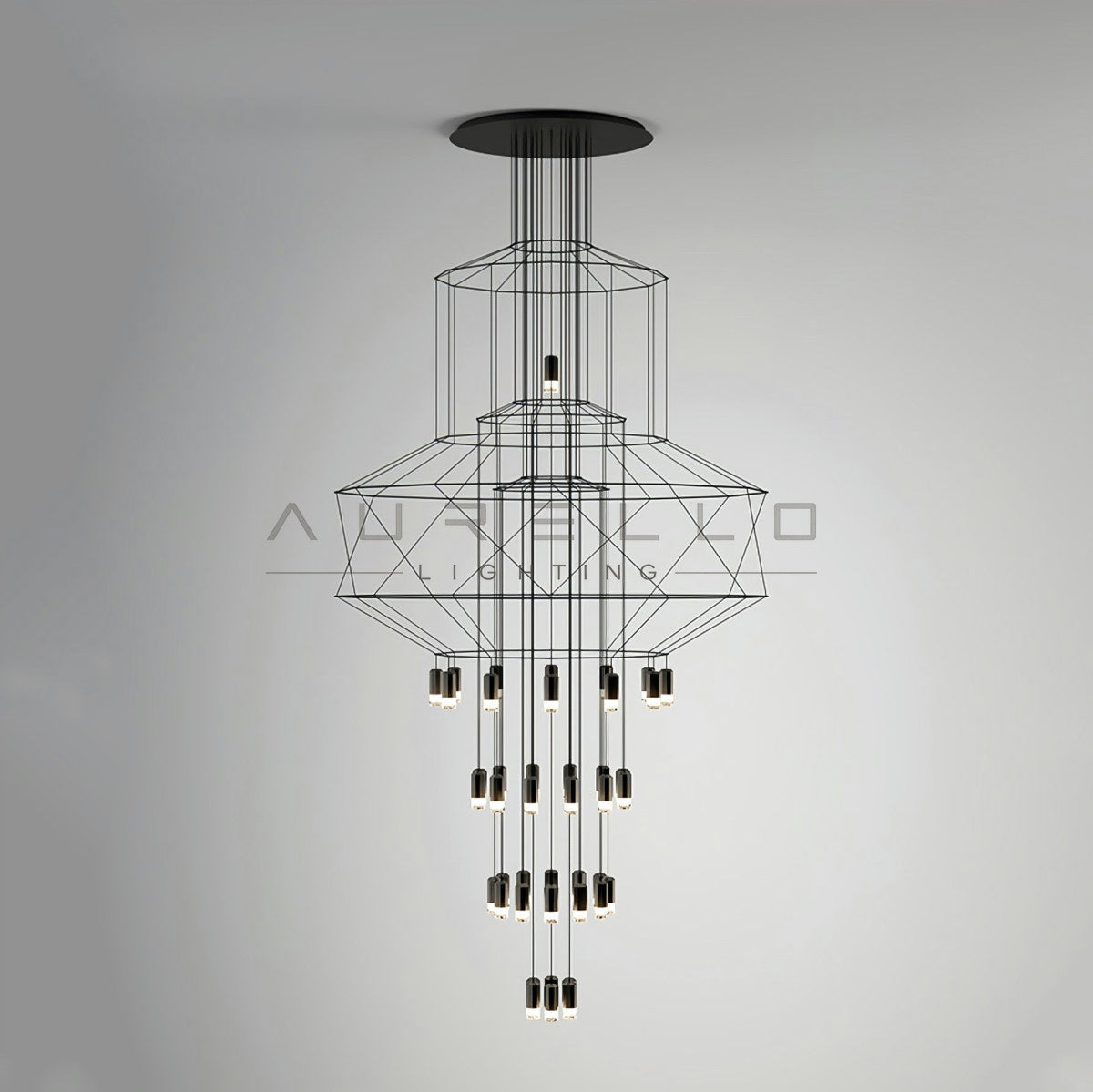

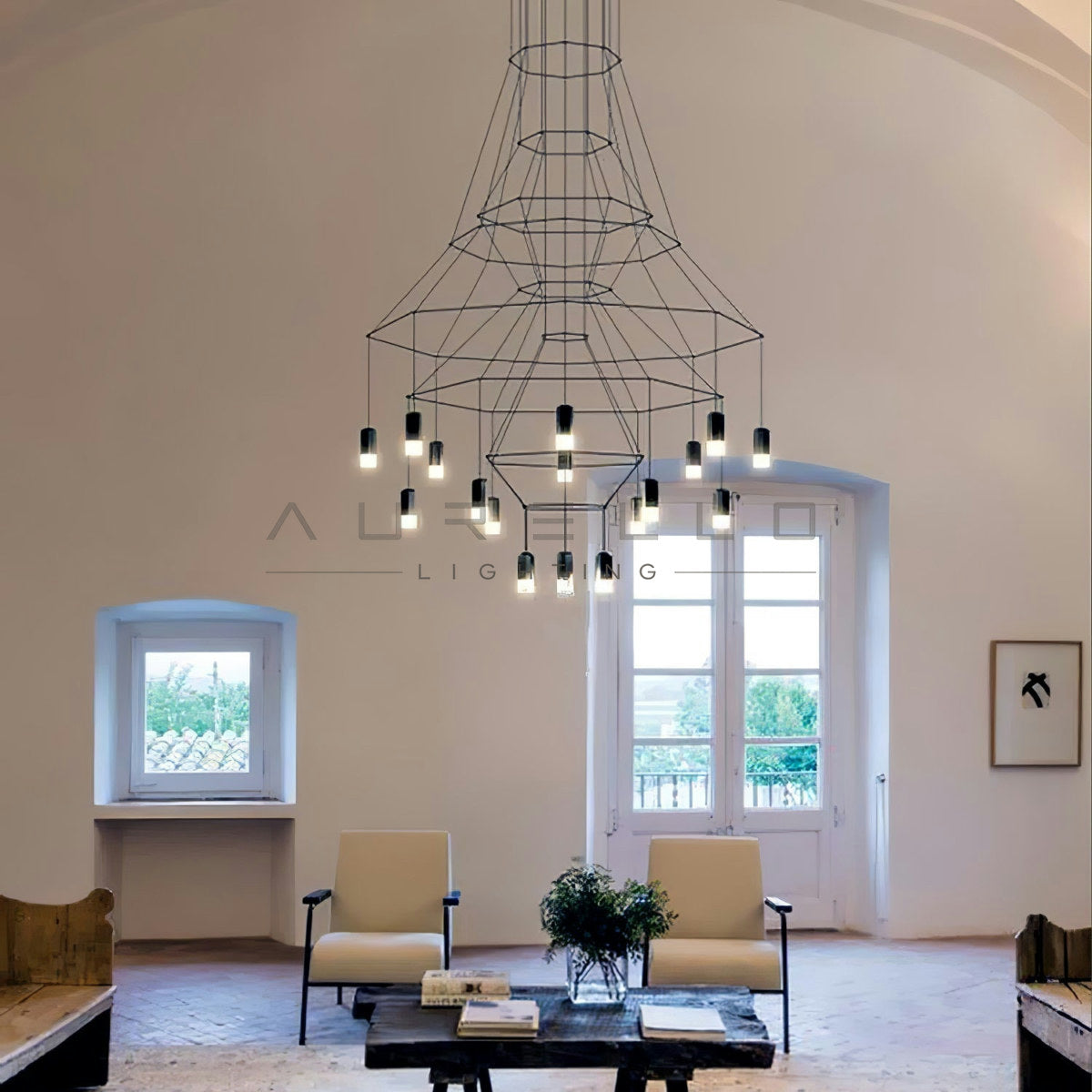

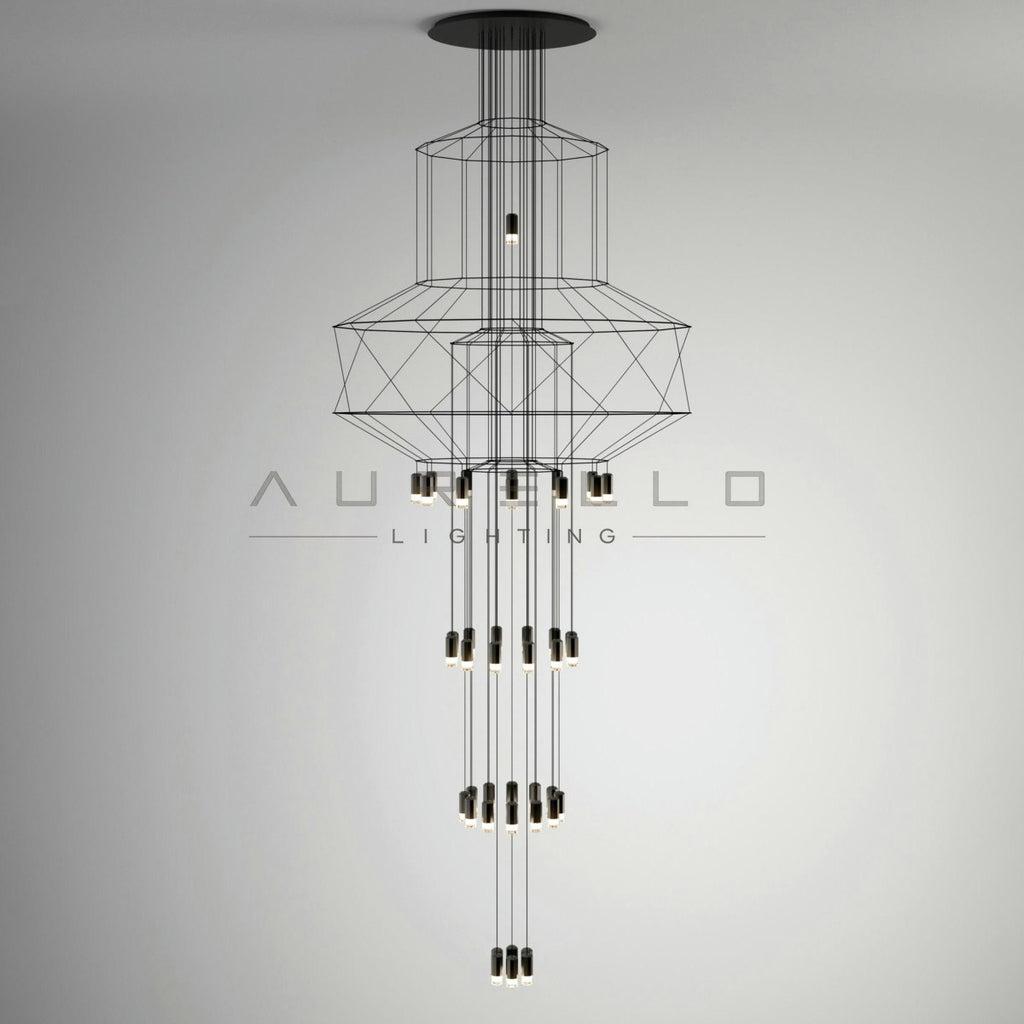

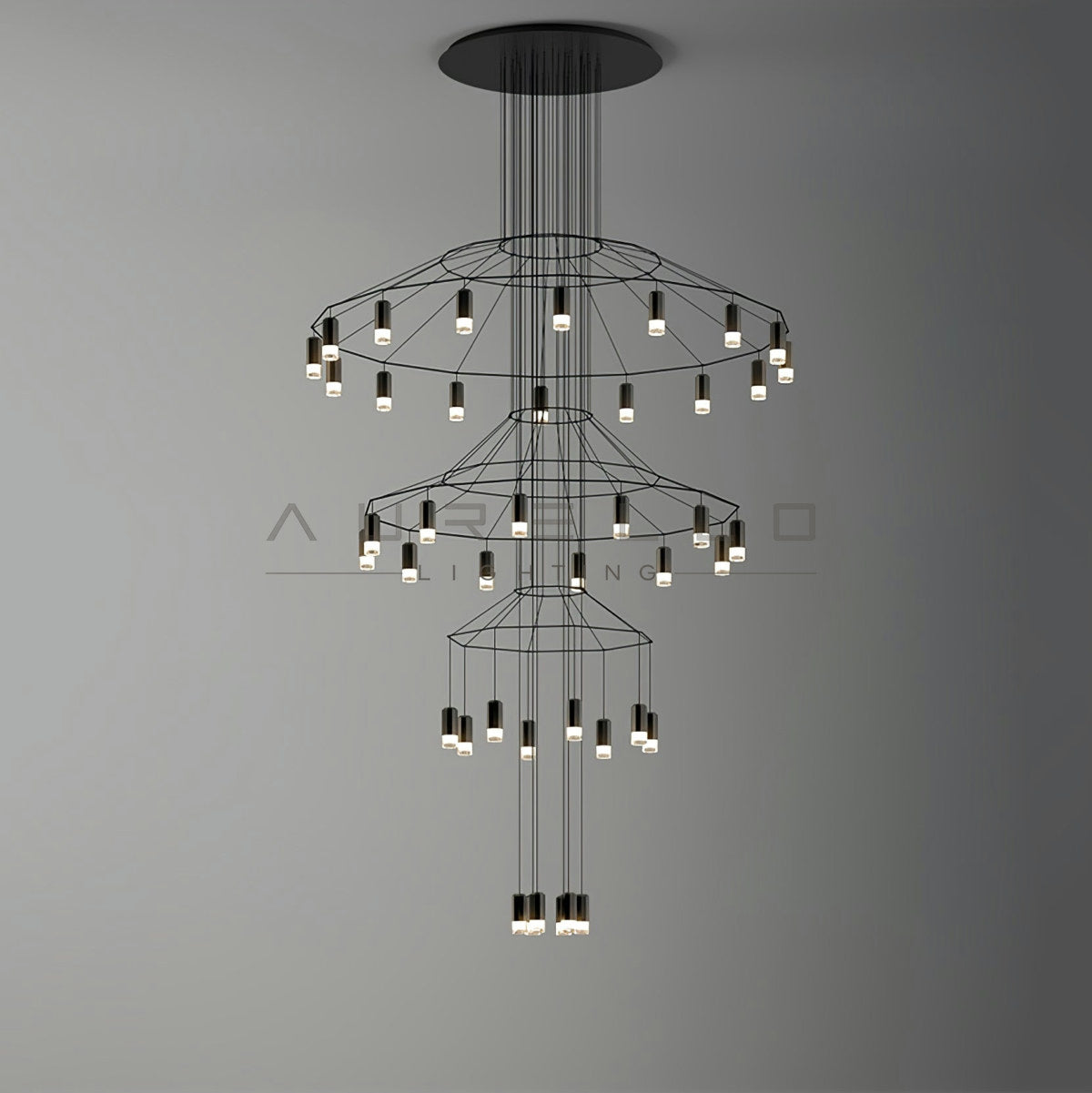

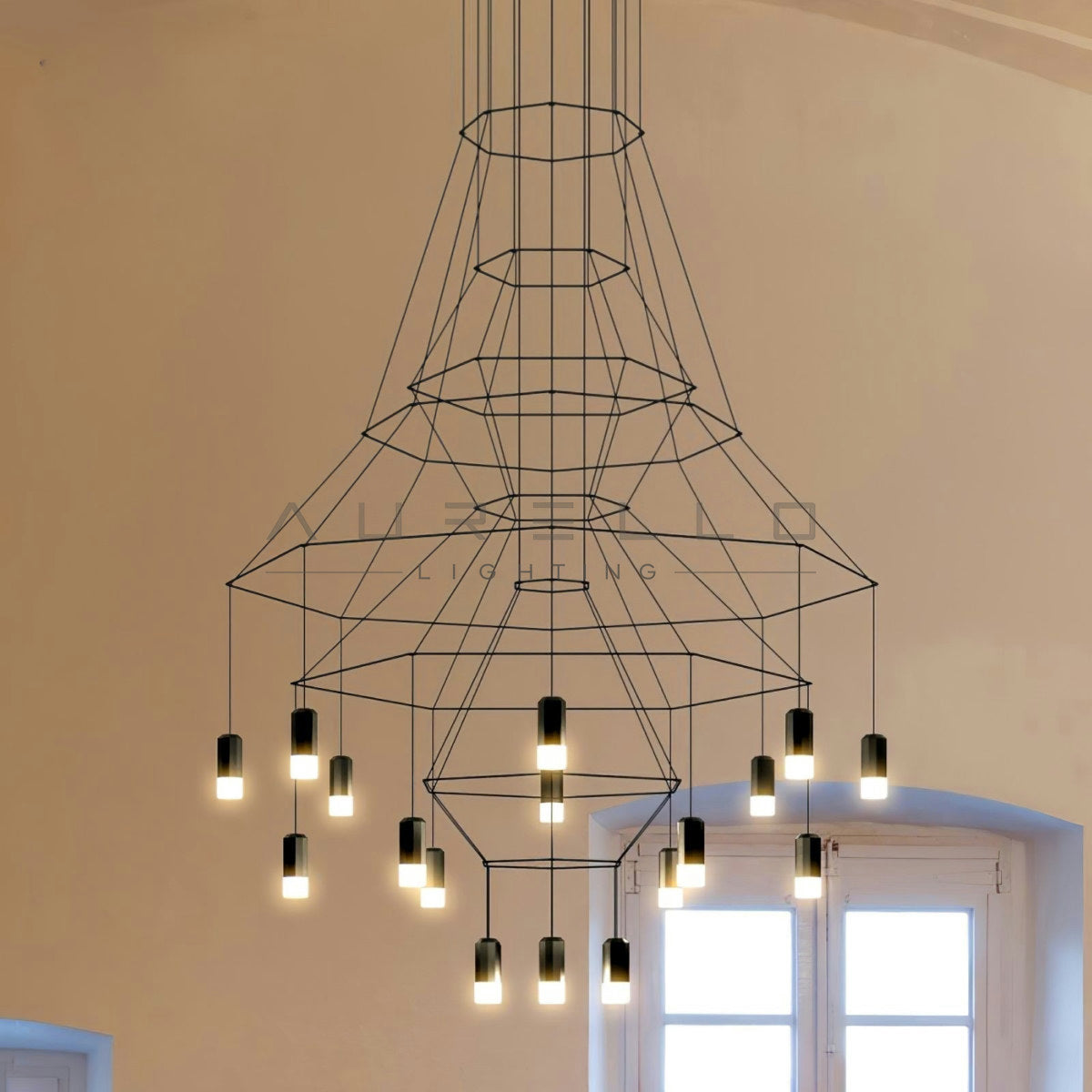

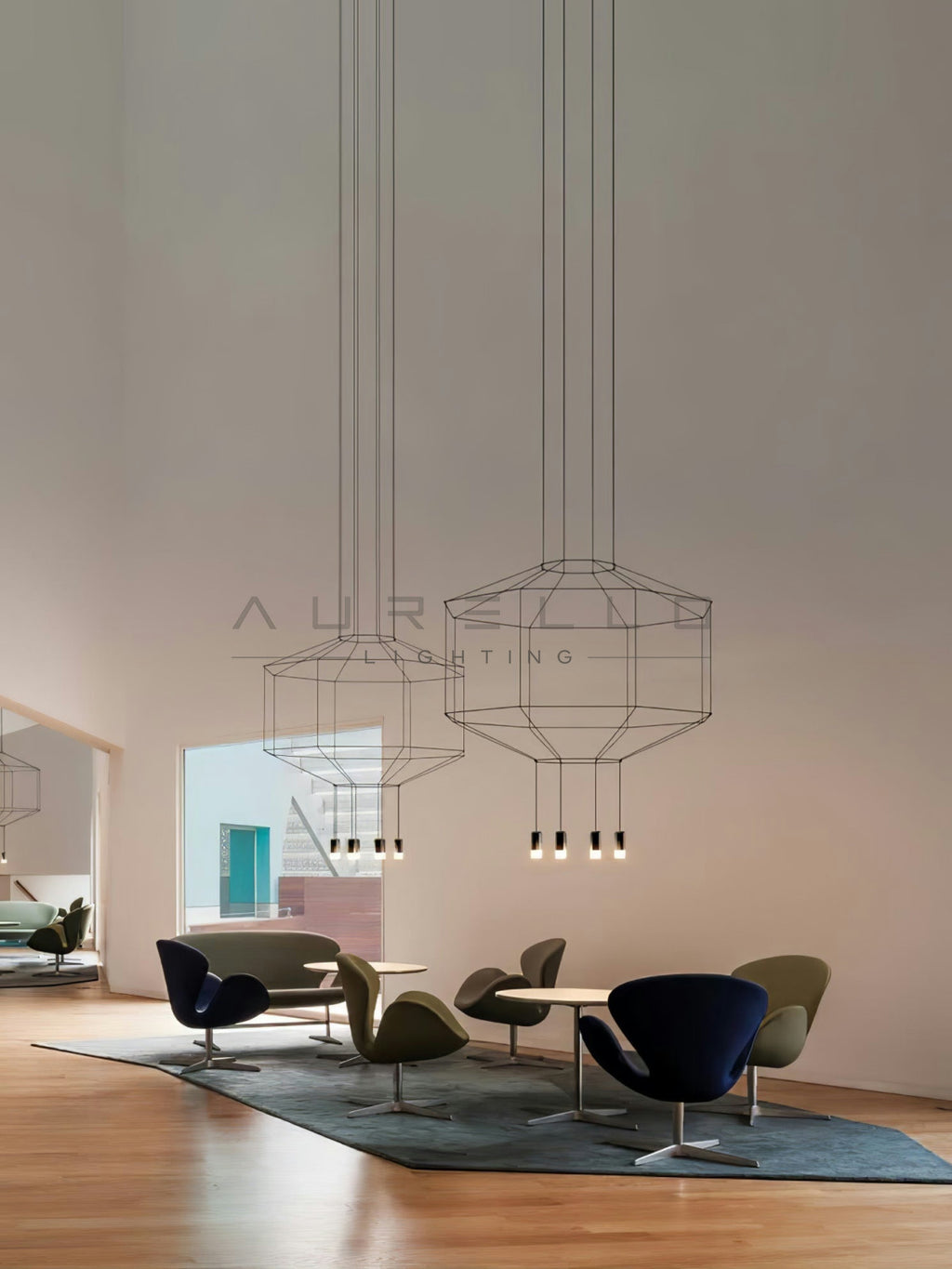

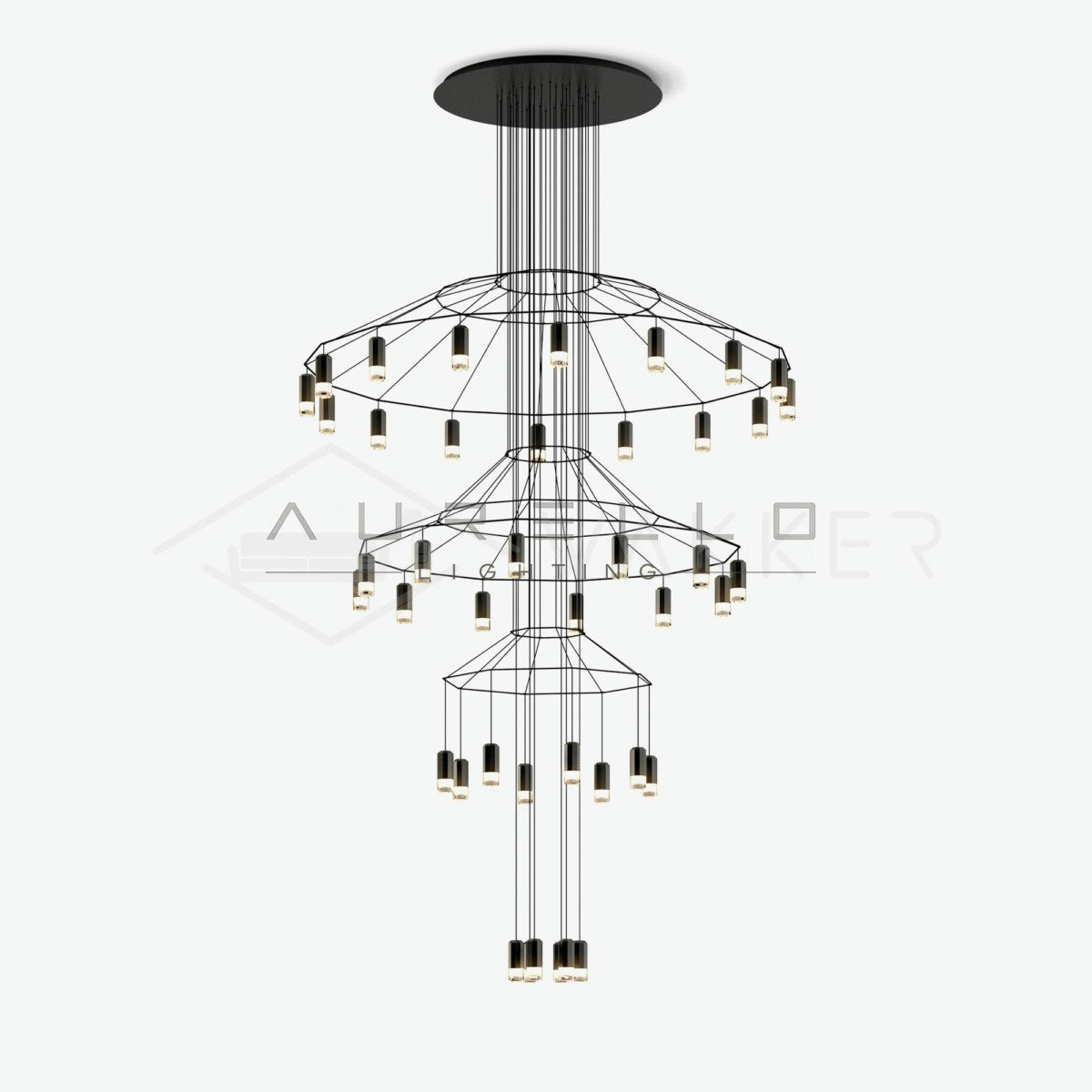

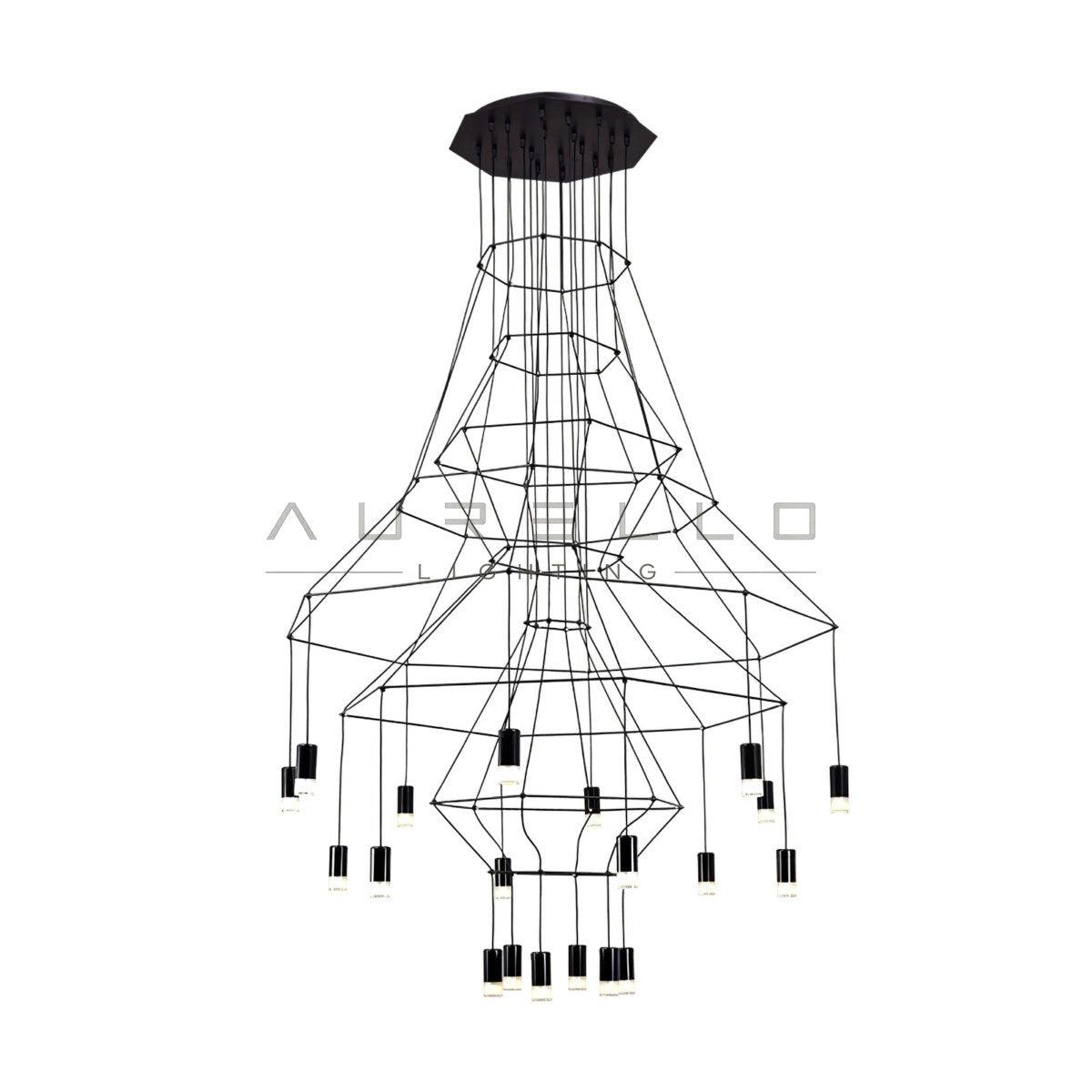

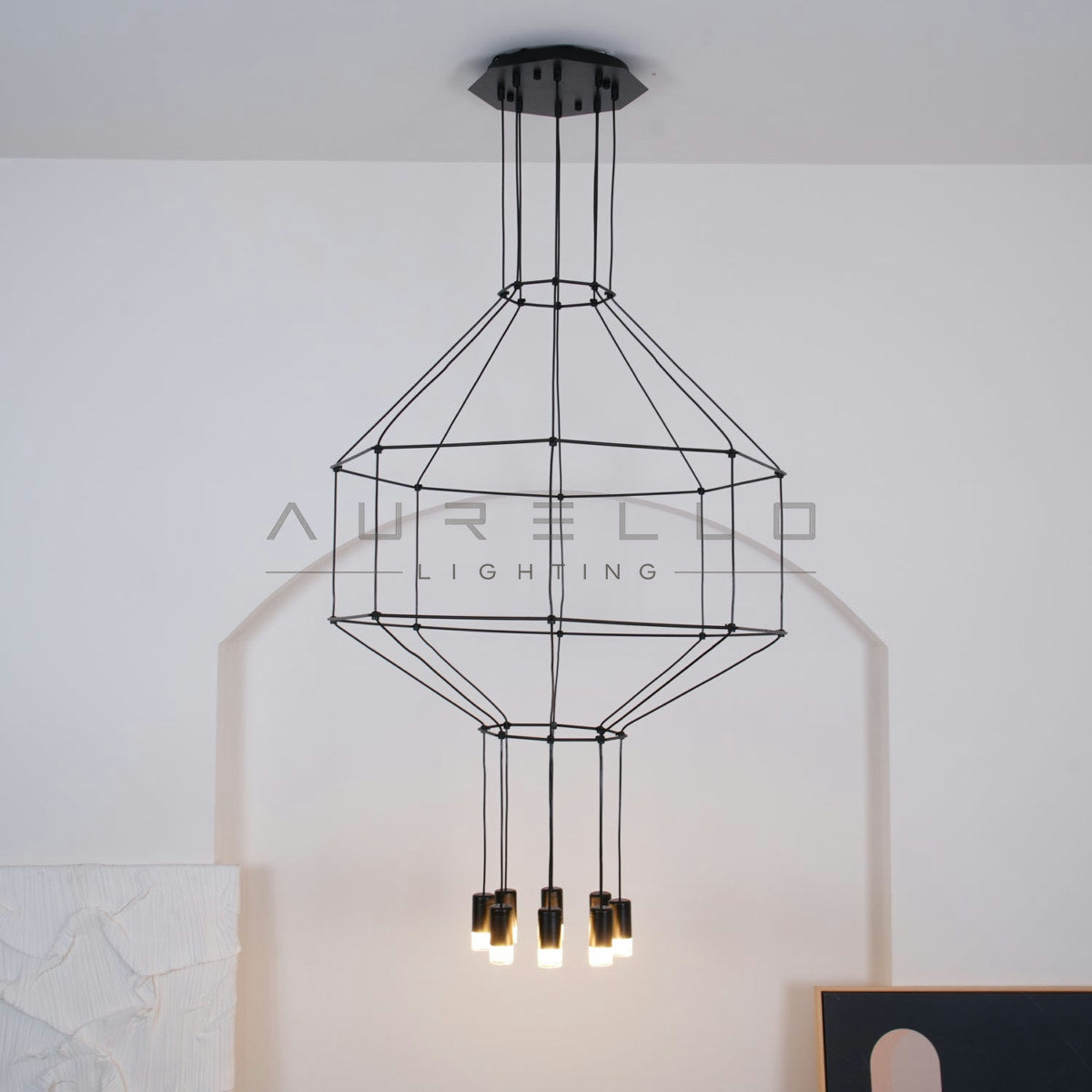

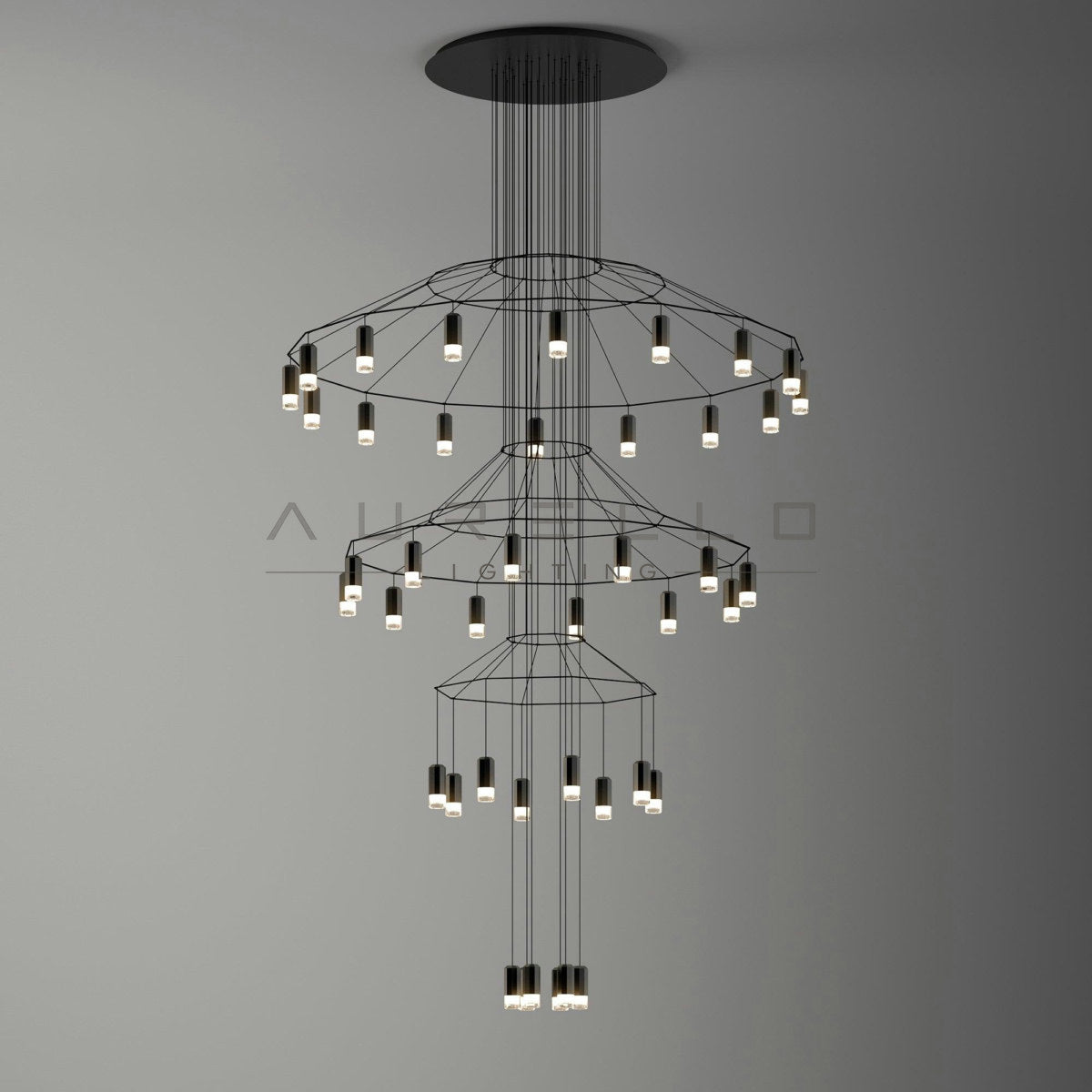

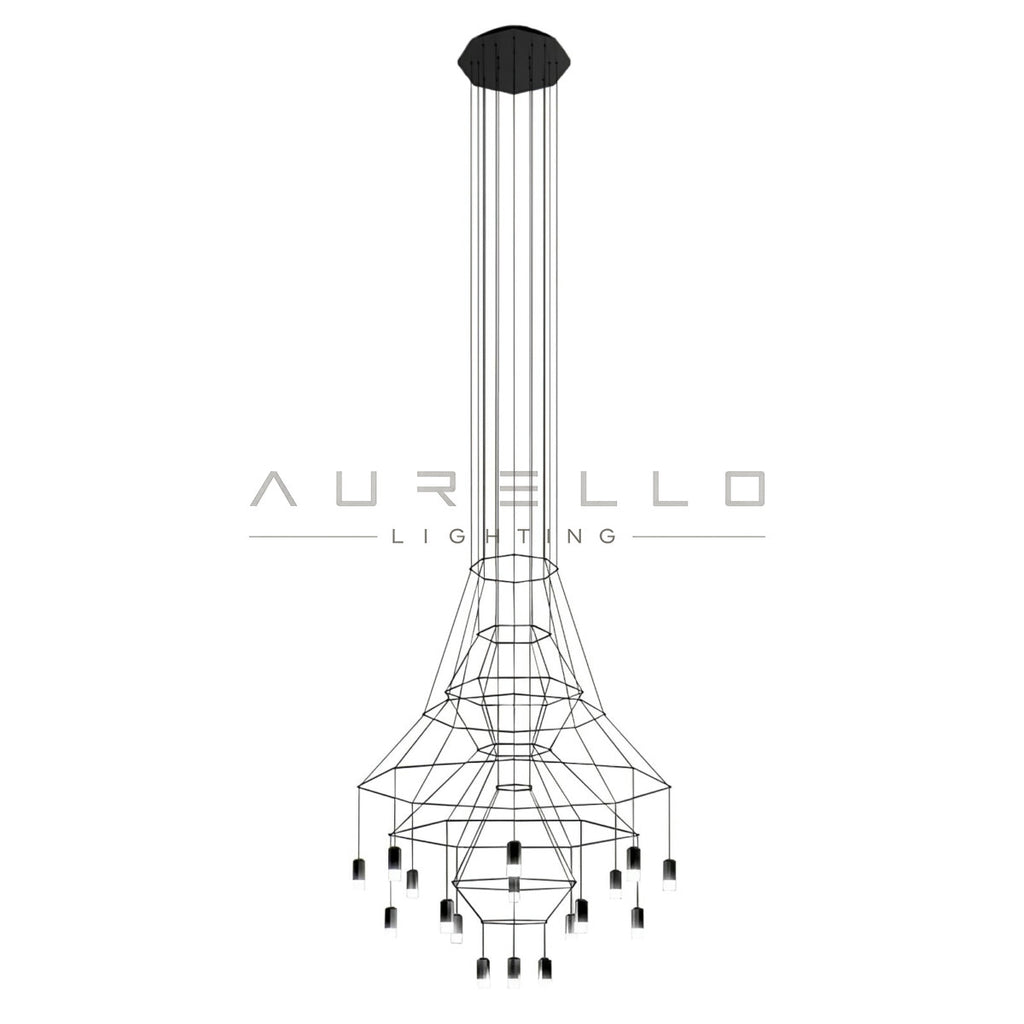

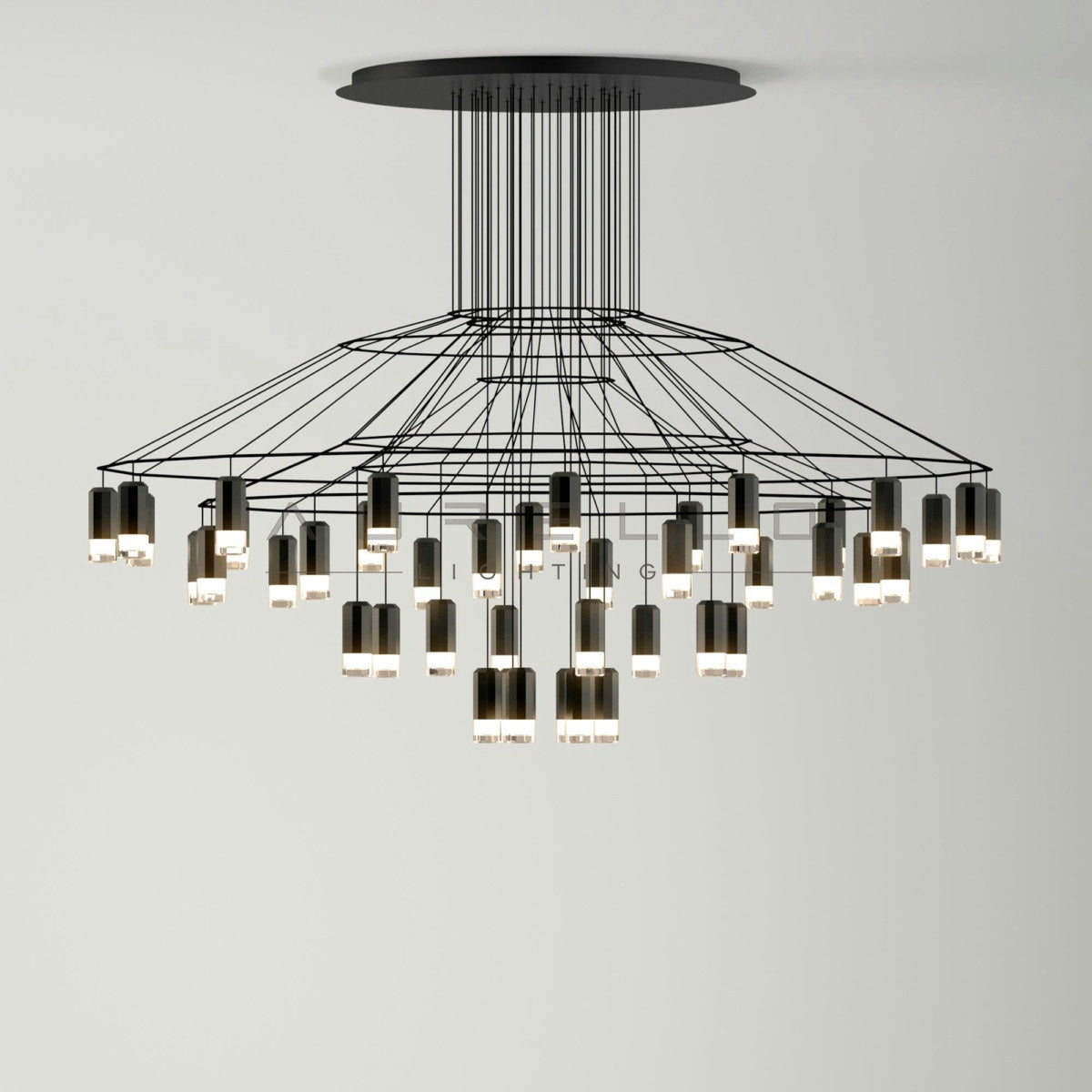

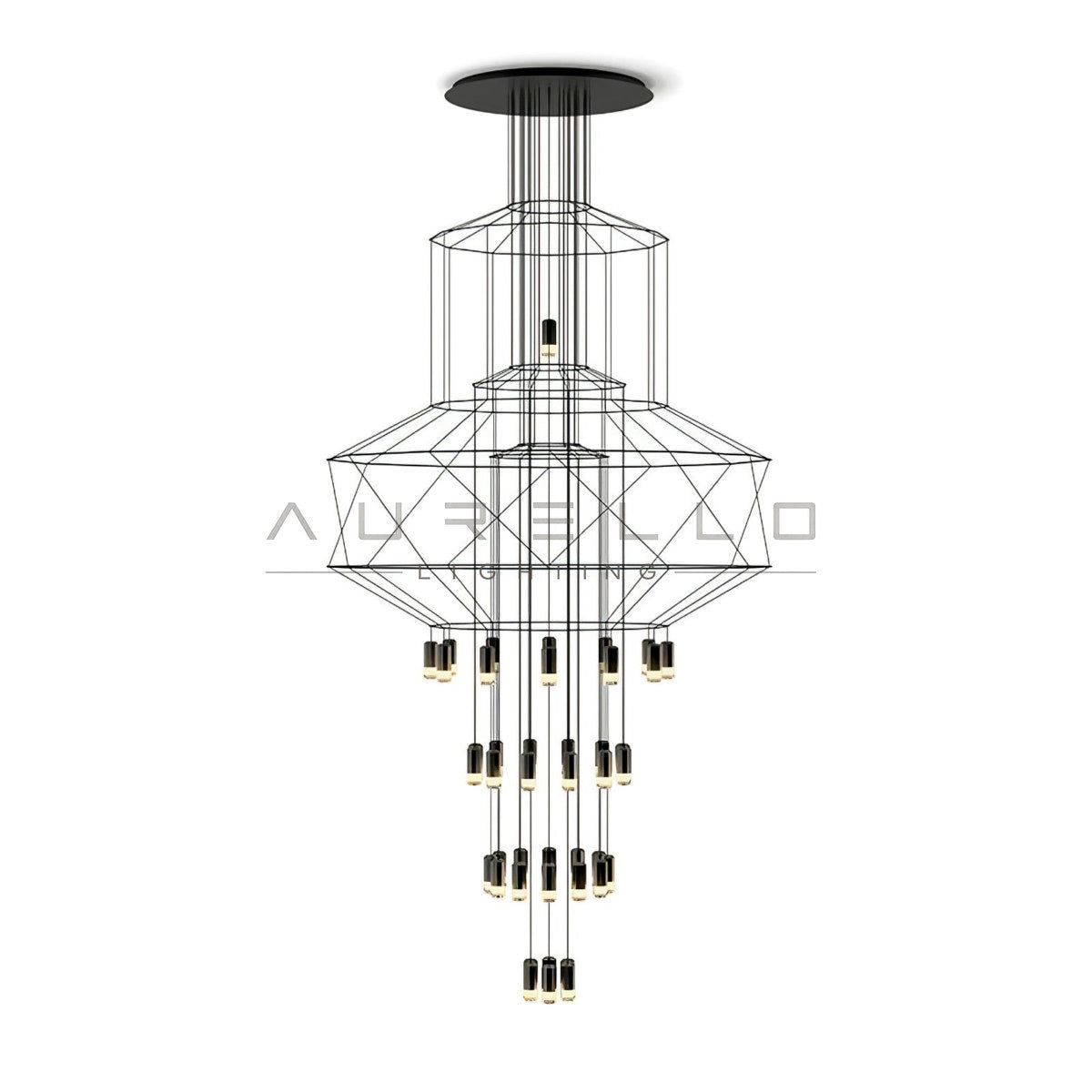

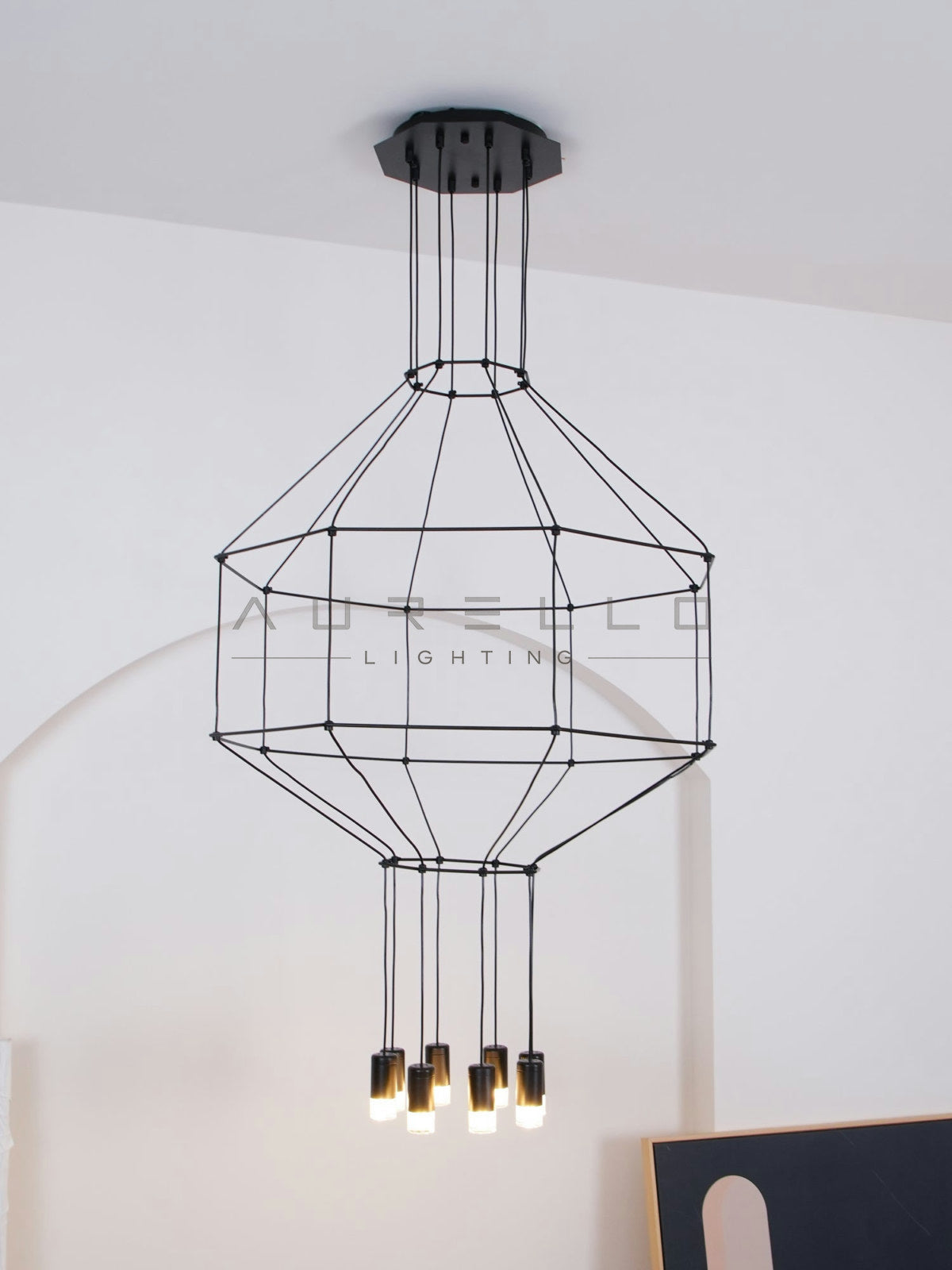

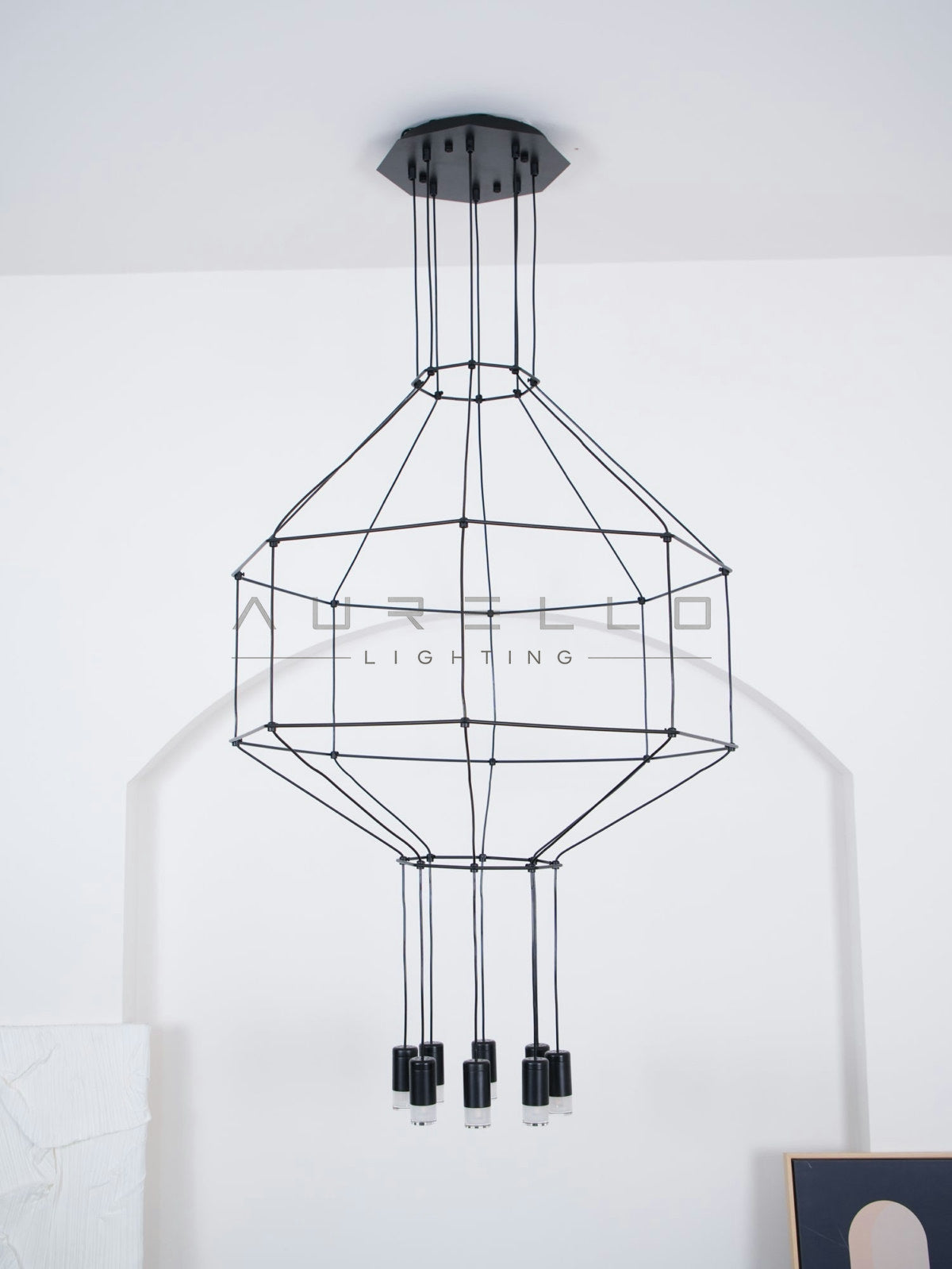

A multi-tier wire-frame chandelier — black metal lines outline 3D polyhedral volumes stacked vertically, with cylindrical 3W LED terminals suspended below the lower tier. Designed for grand-scale architectural spaces: hotel lobbies, two-story atriums, restaurant entrances, gallery halls, and stairwells. Eight size and configuration combinations (20-, 43-, or 46-light arrangements at multiple drops up to 13 ft) to fit ceiling heights from 9 ft to 16+ ft.
⚠ Architectural installation — read before ordering
The Lattice Chandelier is a heavy, complex, large-format fixture. The 46-light configuration weighs ~51 lbs; the largest 43-light drop reaches 13 ft. To ensure safe installation and long-term stability:
- Reinforced ceiling support is mandatory — engineering review recommended for residential ceilings or any drop over 8 ft.
- Licensed electrician with experience in chandelier installation strongly recommended — typical install time is 4–6 hours with two installers.
- Confirm your ceiling height matches the drop height before ordering. The 13 ft drop requires a minimum 14 ft ceiling.

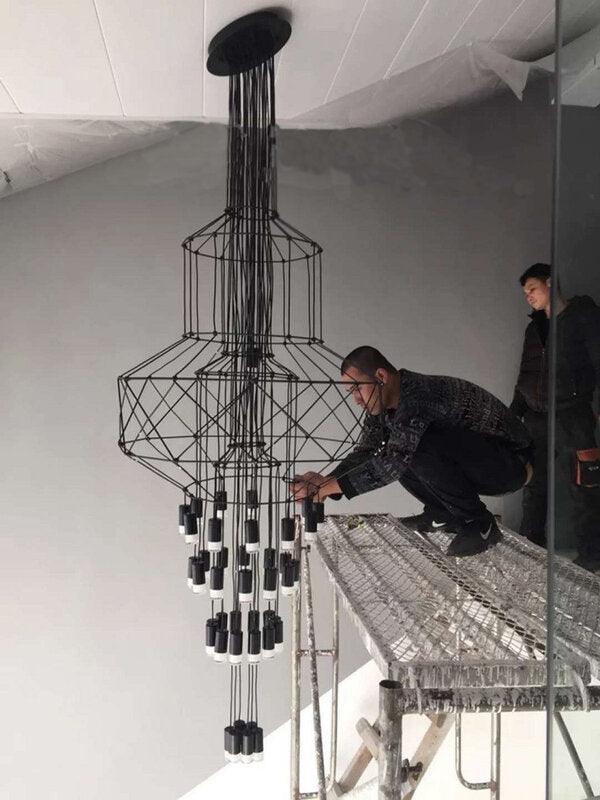

- Pre-installation: a scaffold or lift is typically required, not a step ladder.

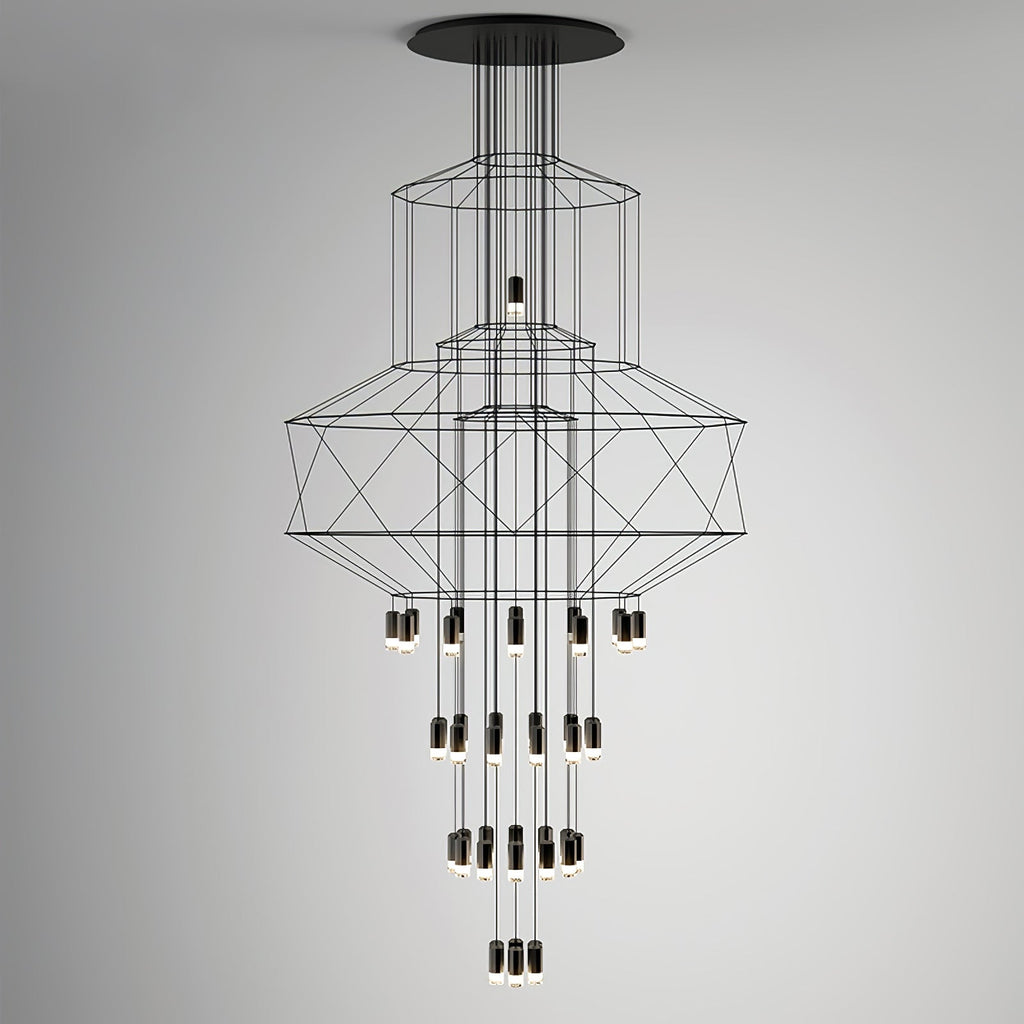

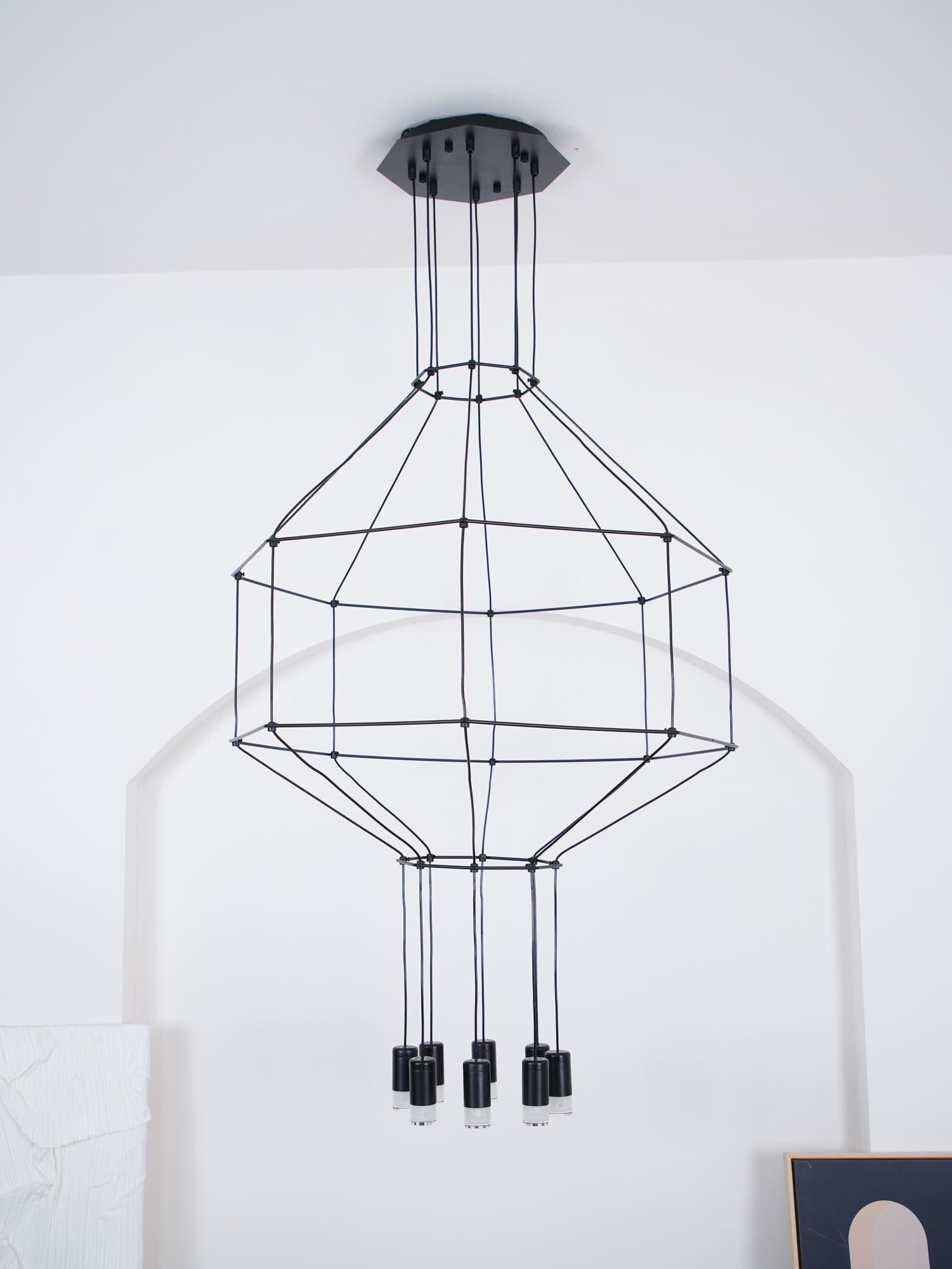

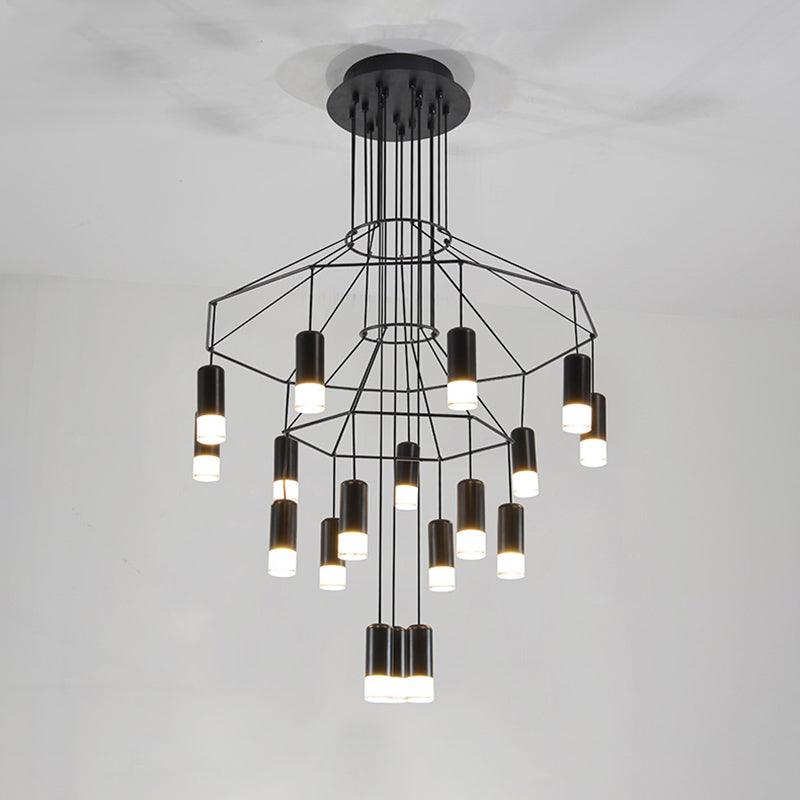

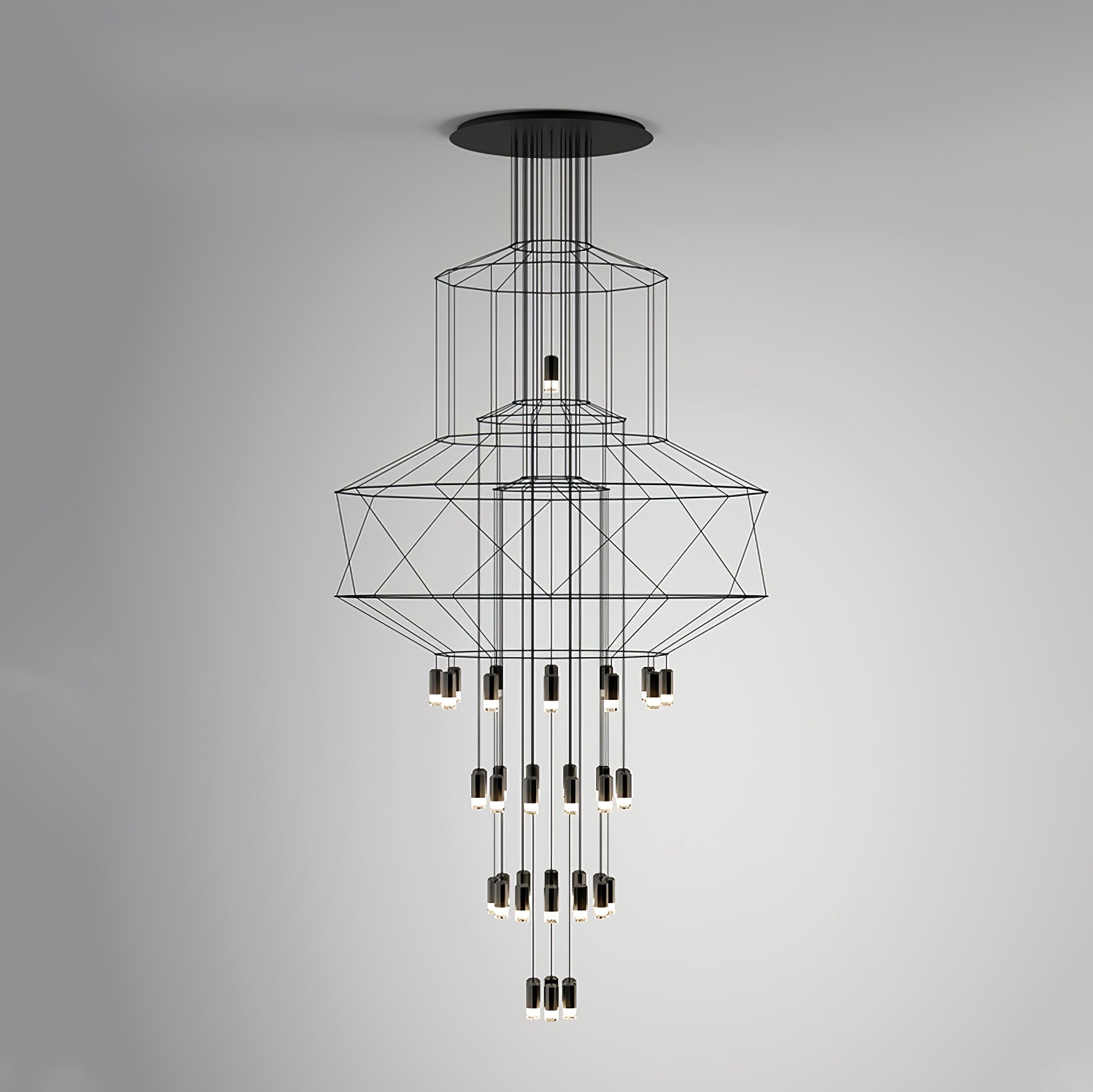

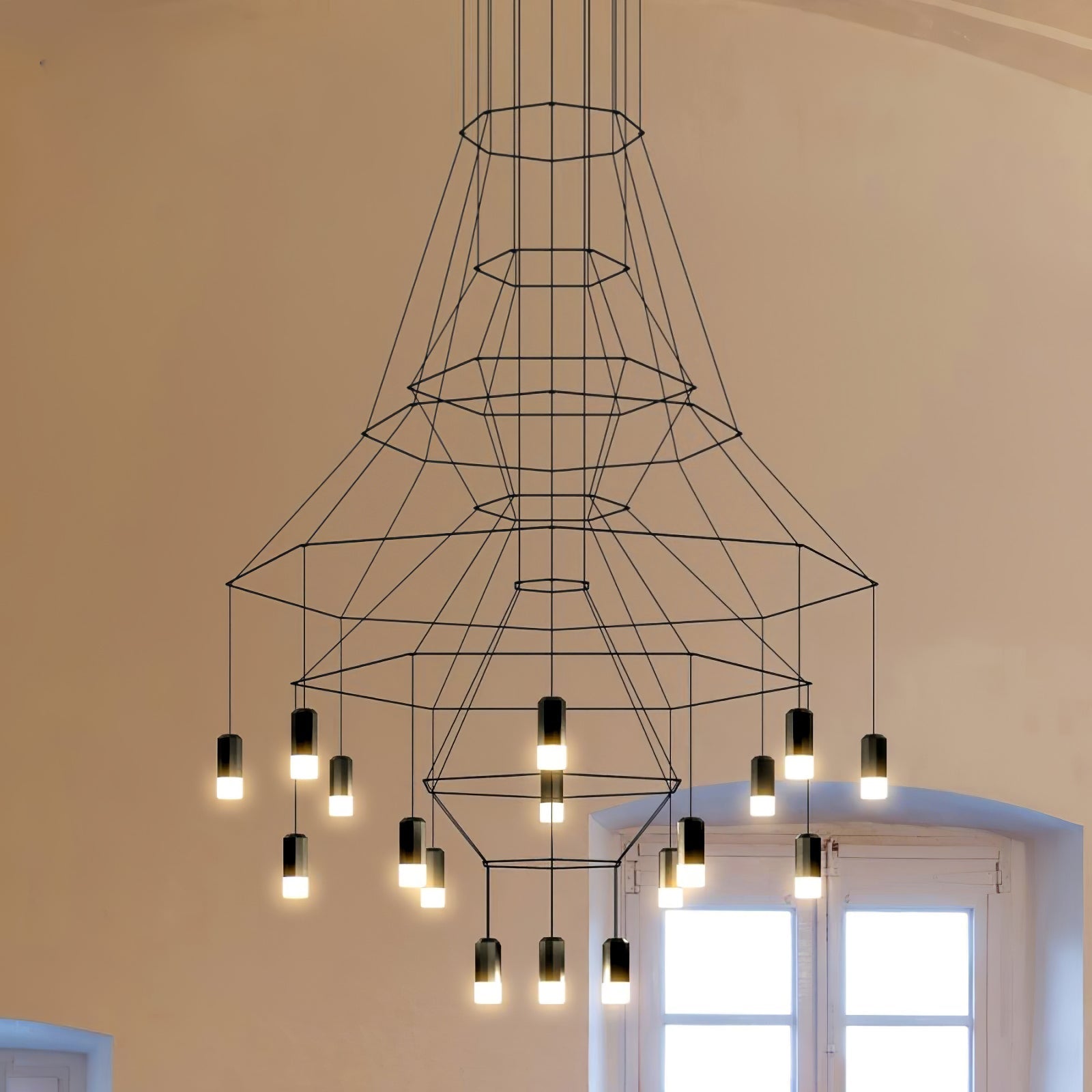

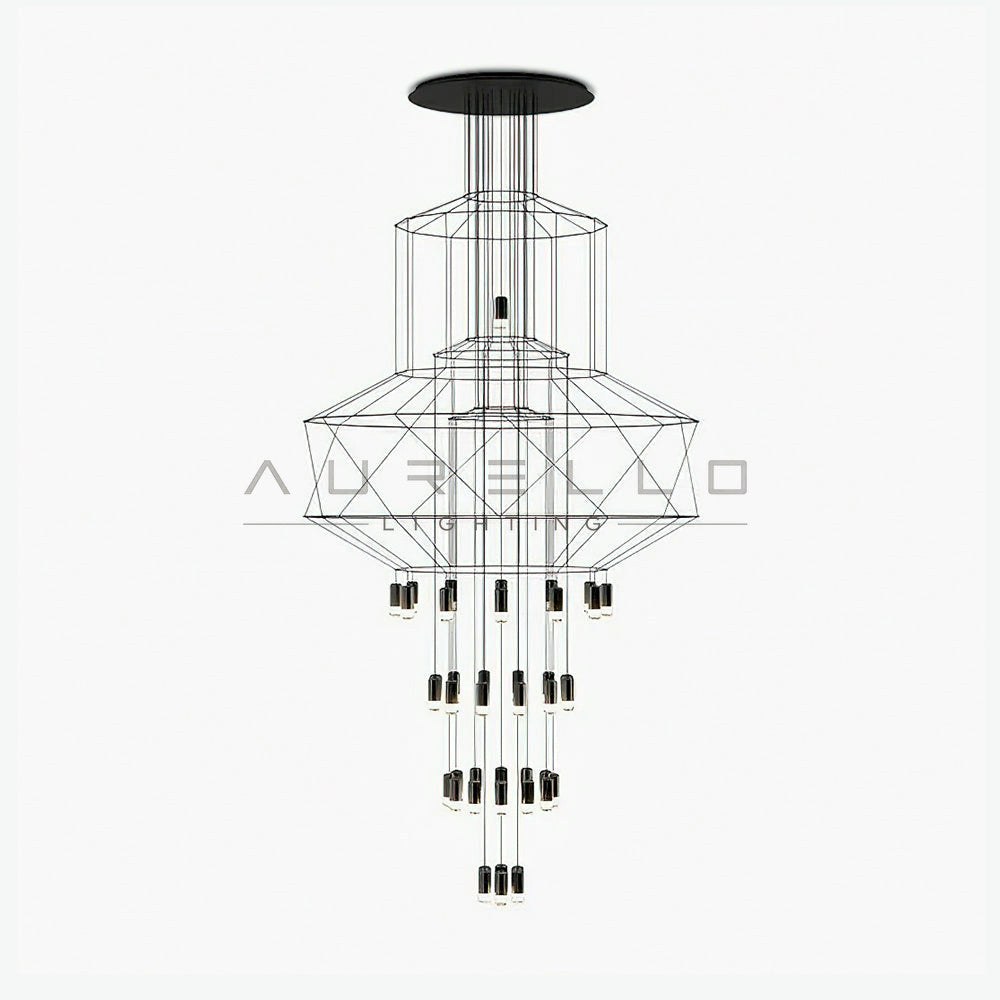

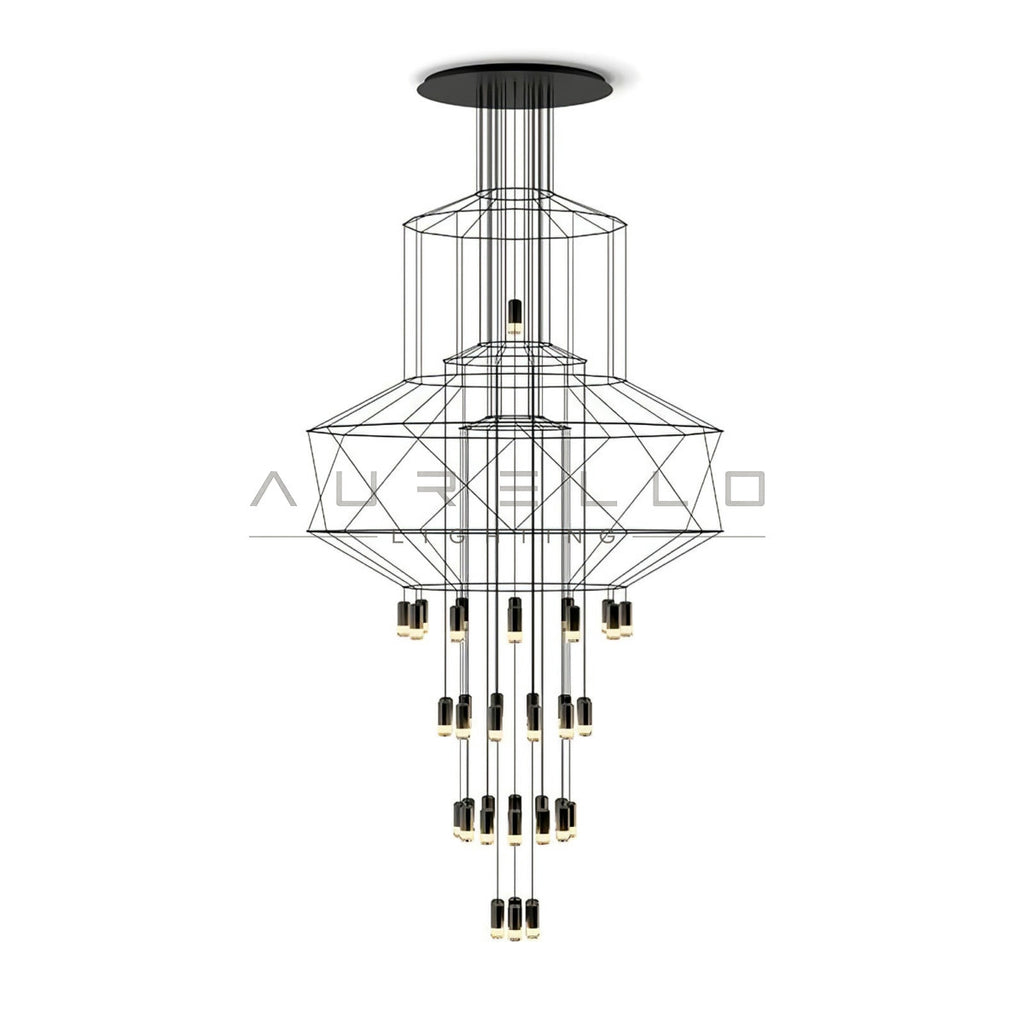

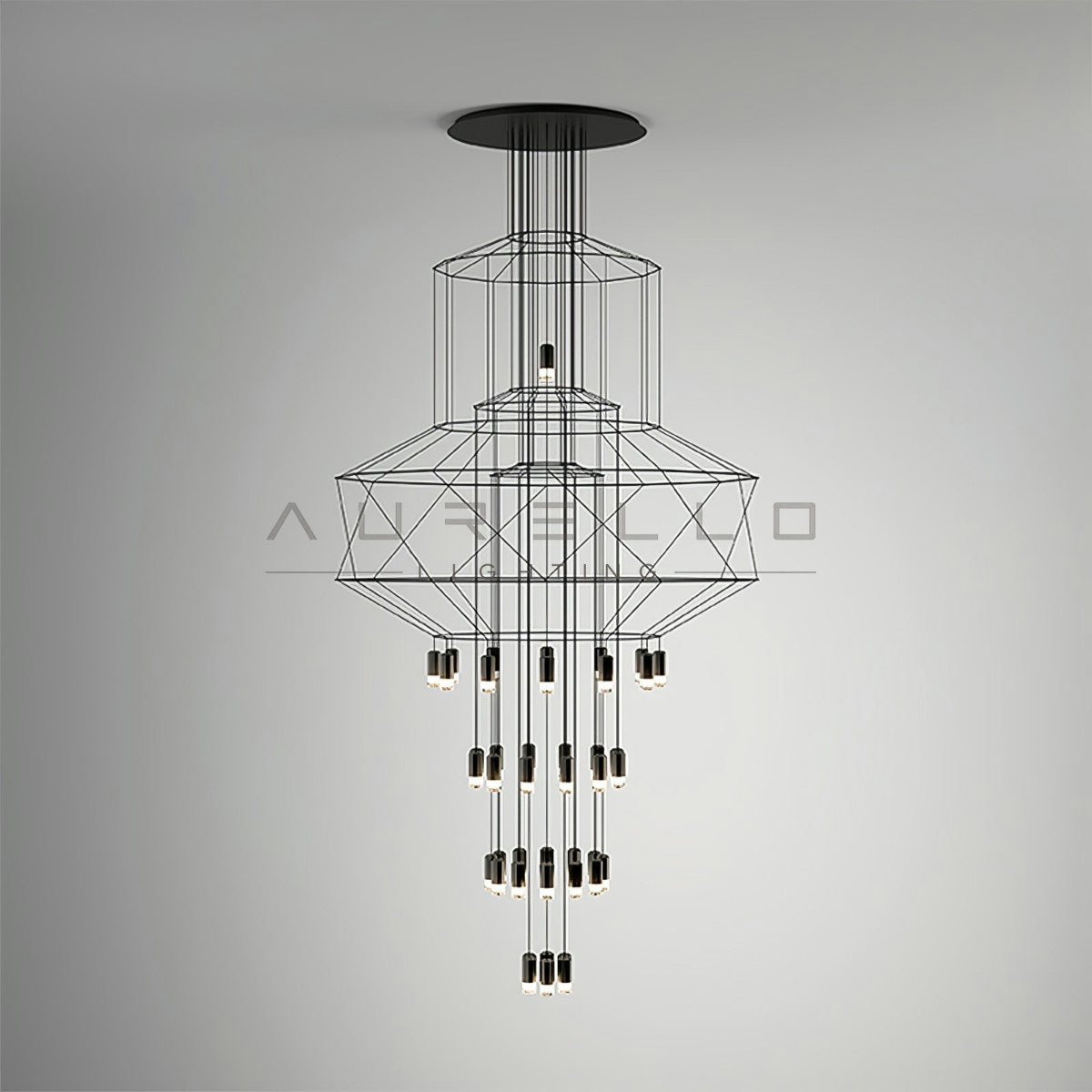

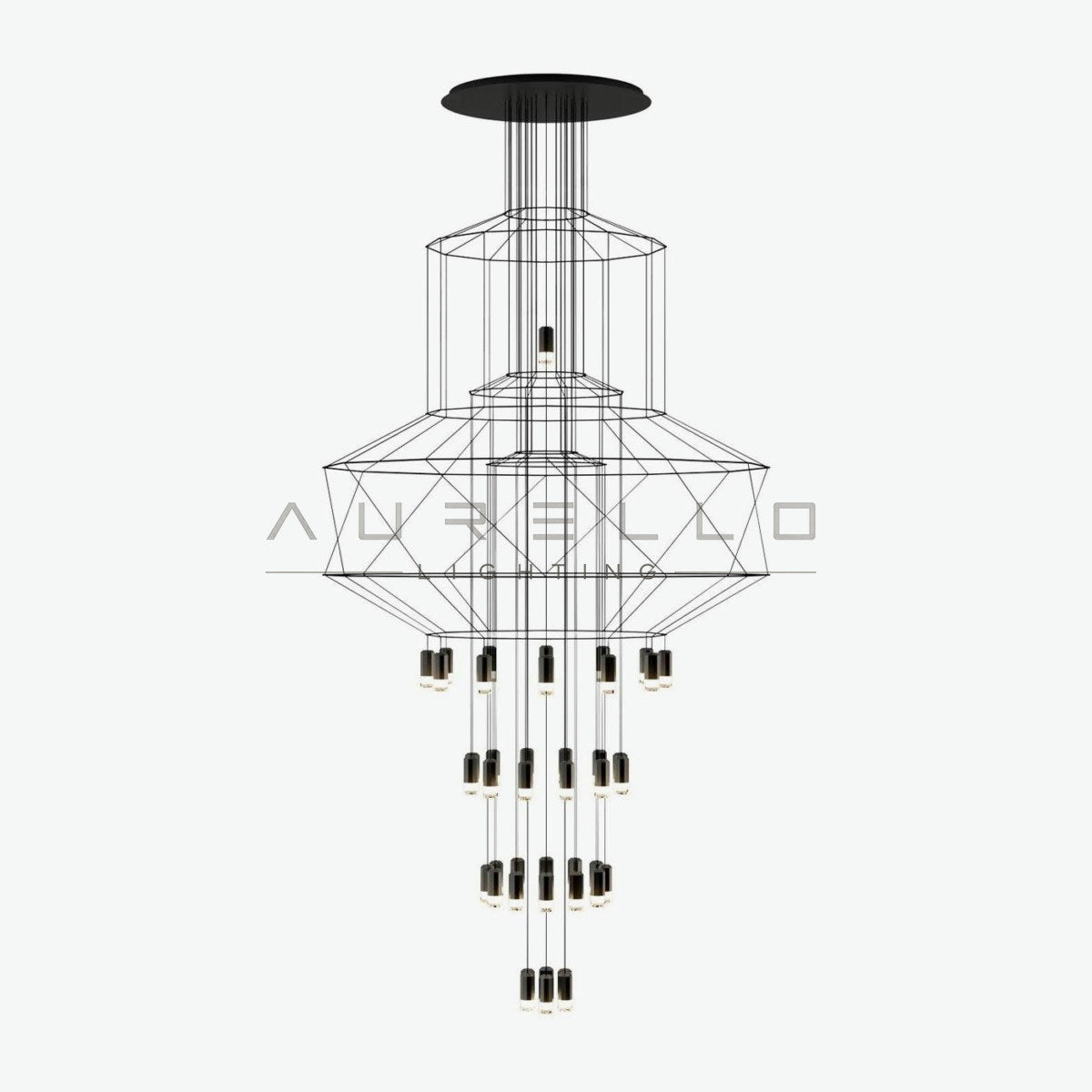

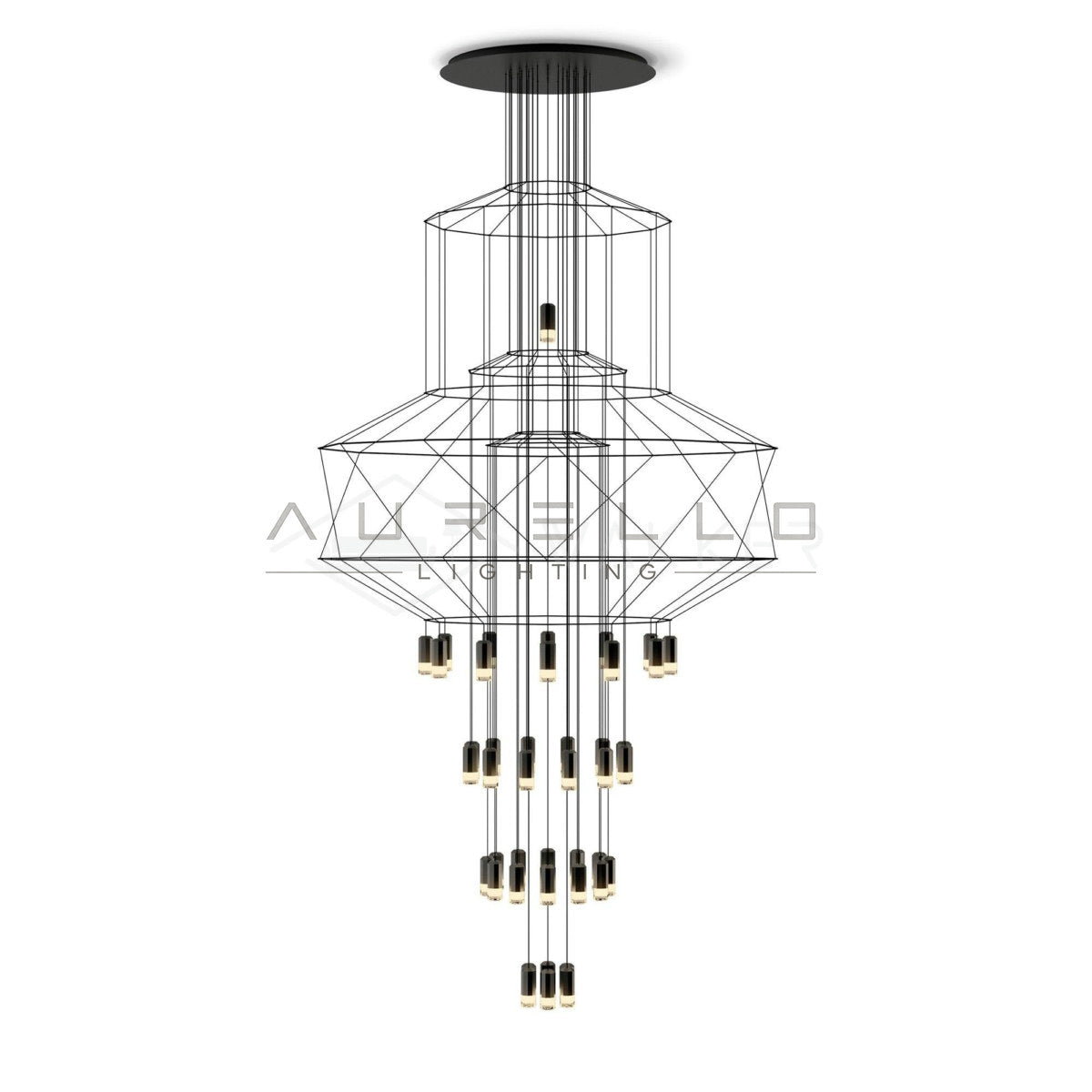

Multi-tier polyhedral frame
Black metal lines outline stacked 3D volumes — reads as architectural drawing brought into the room.

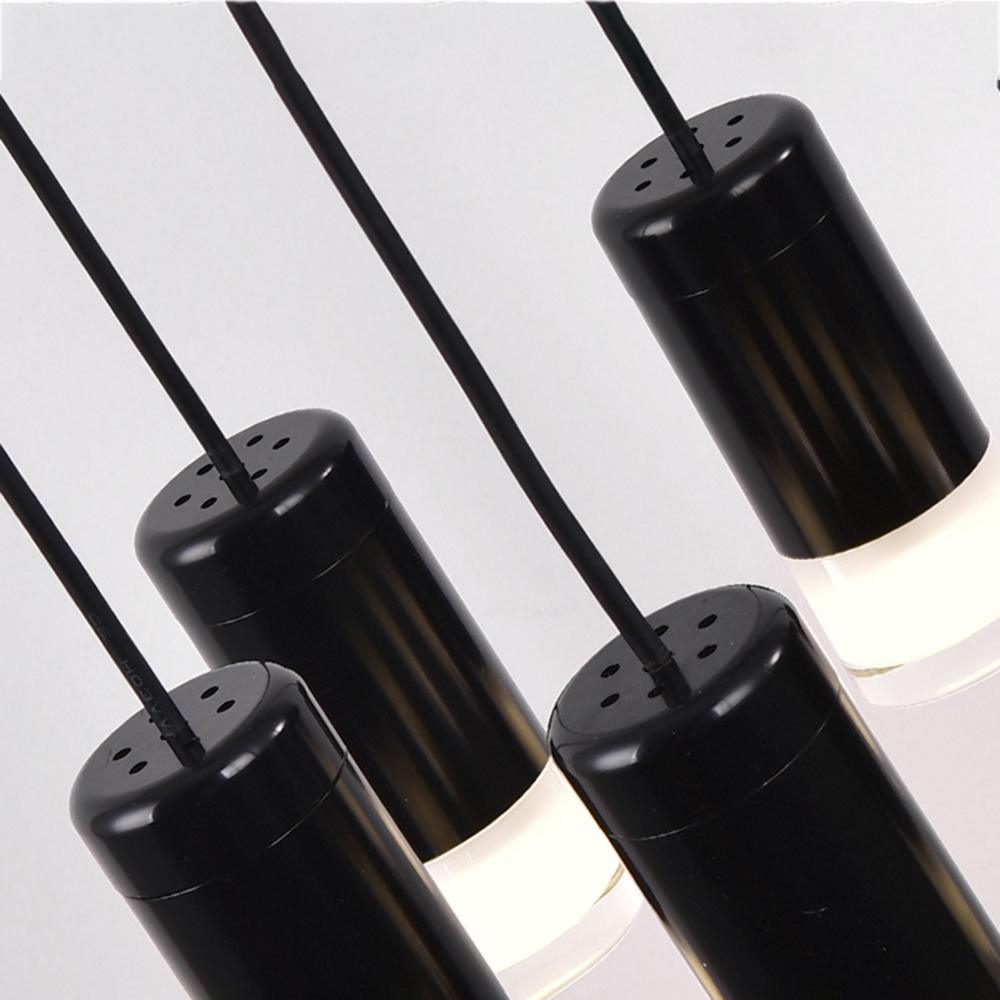

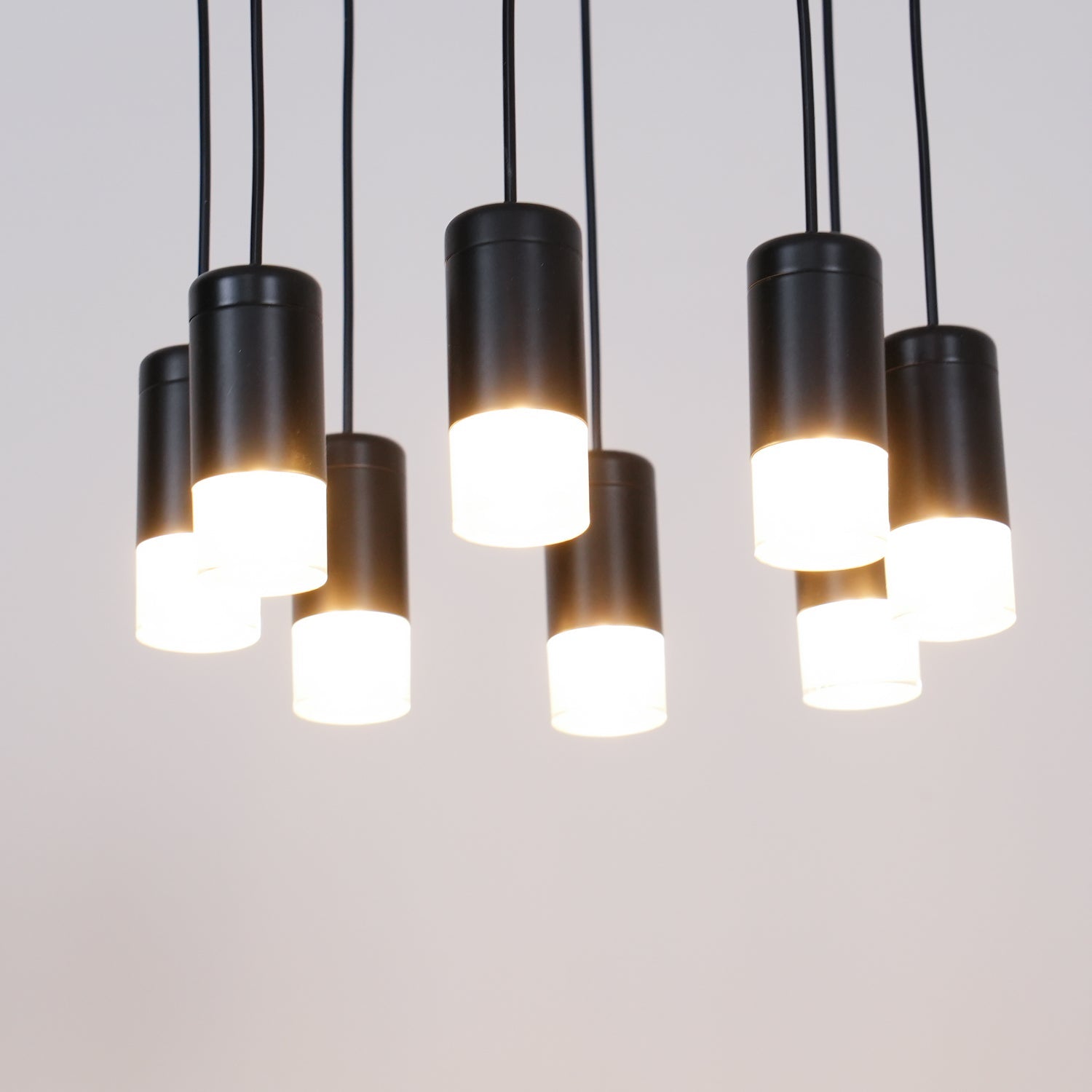

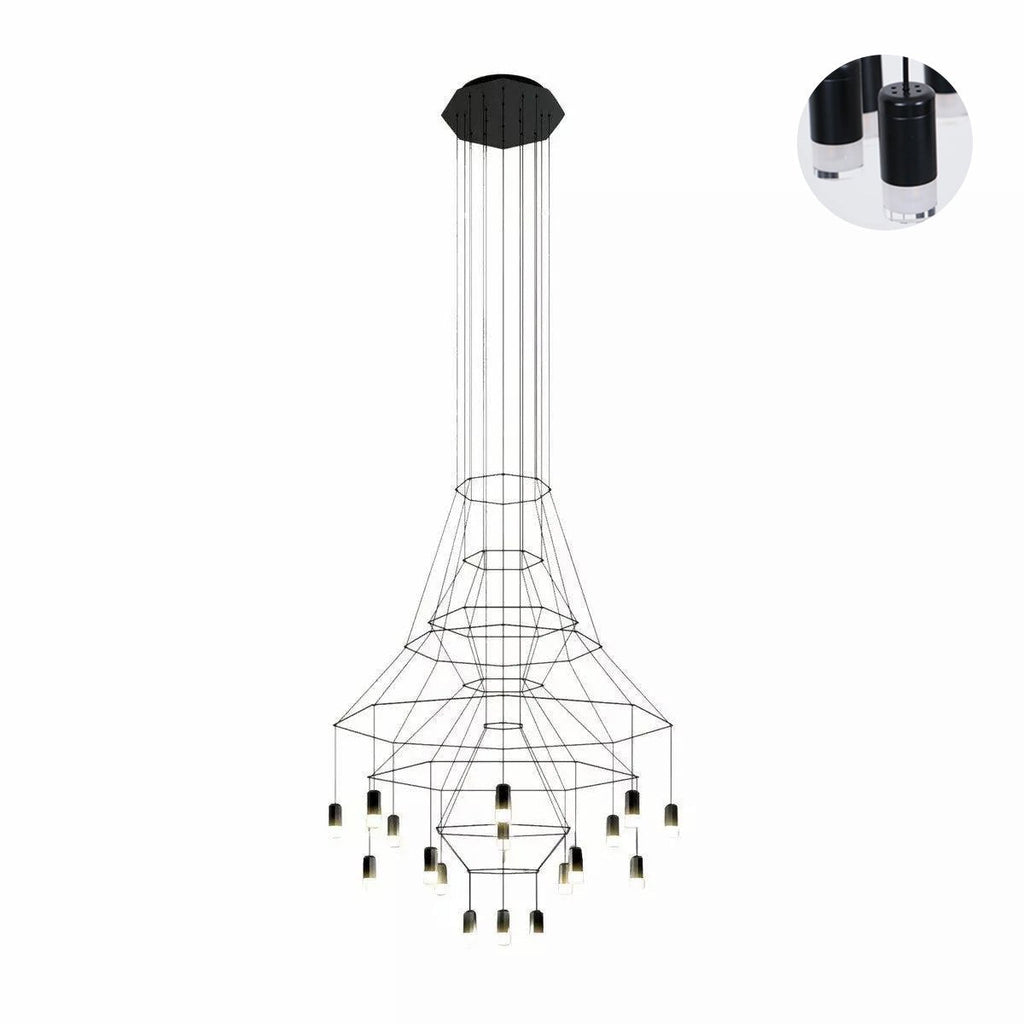

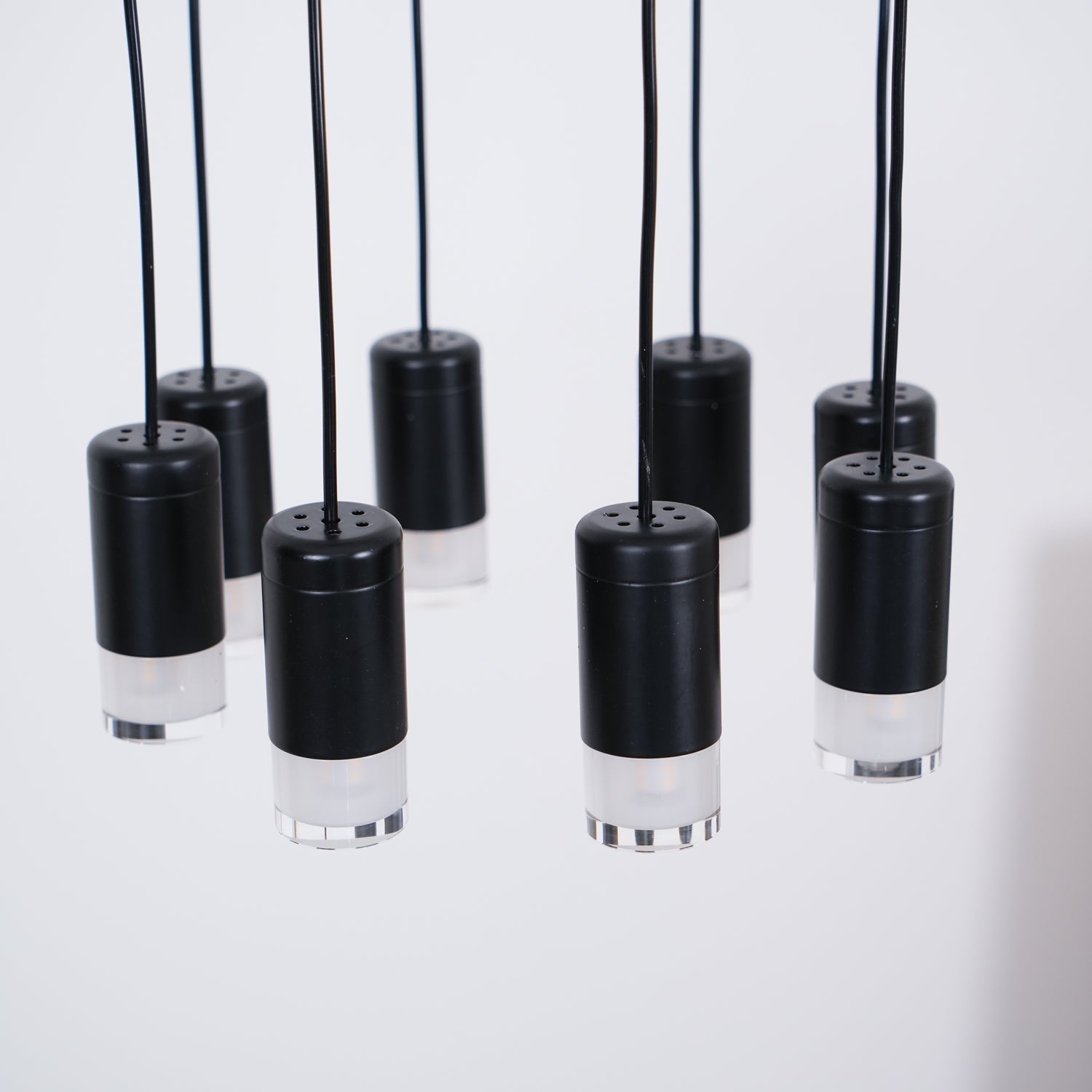

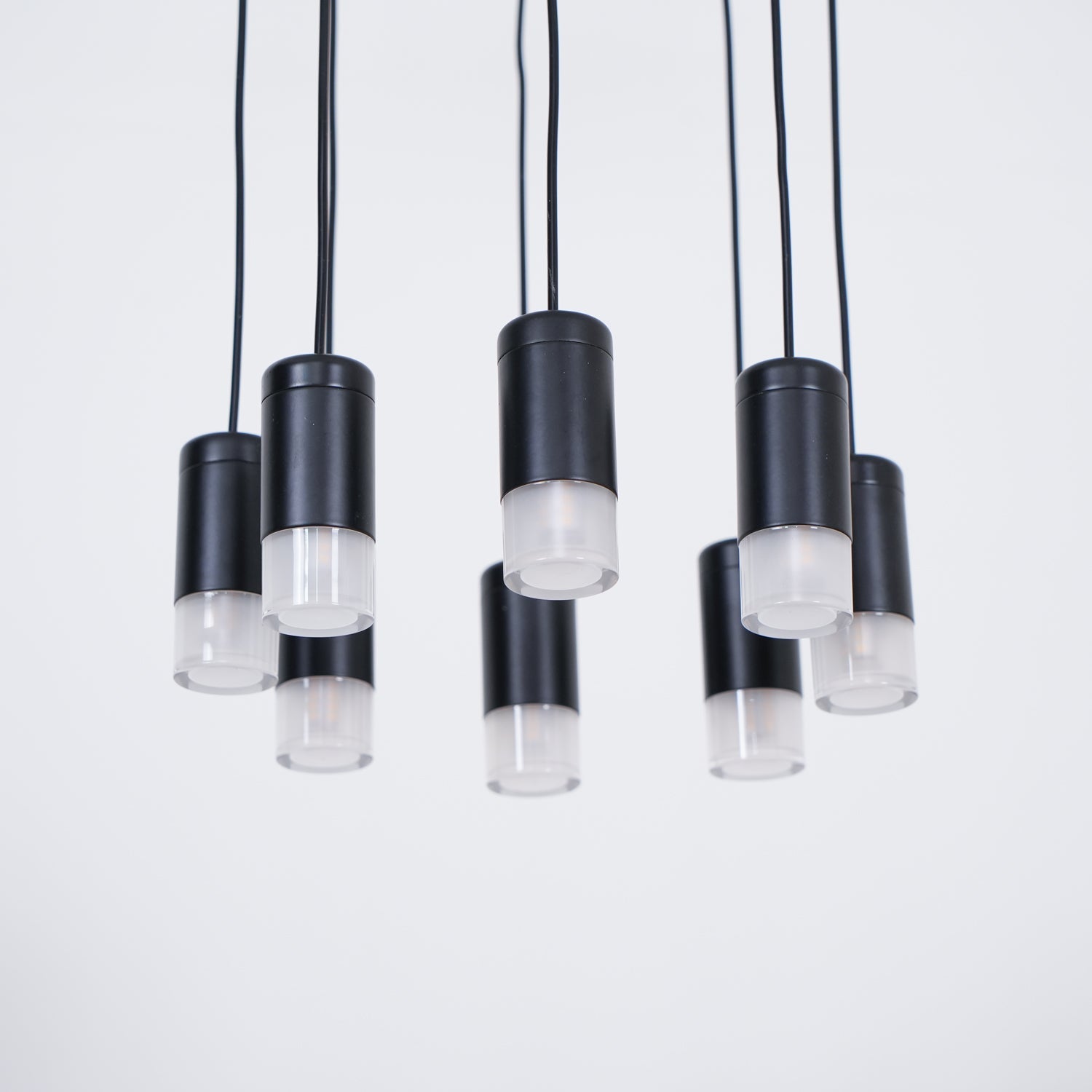

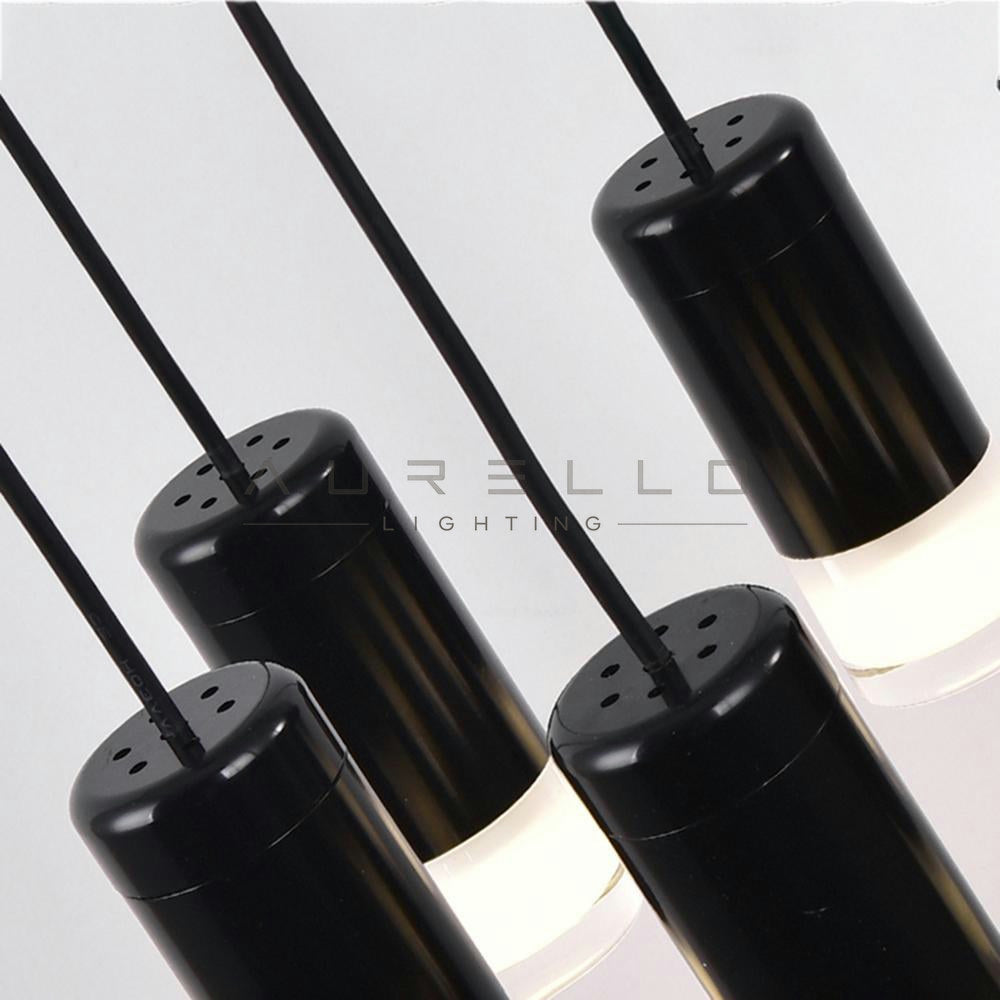

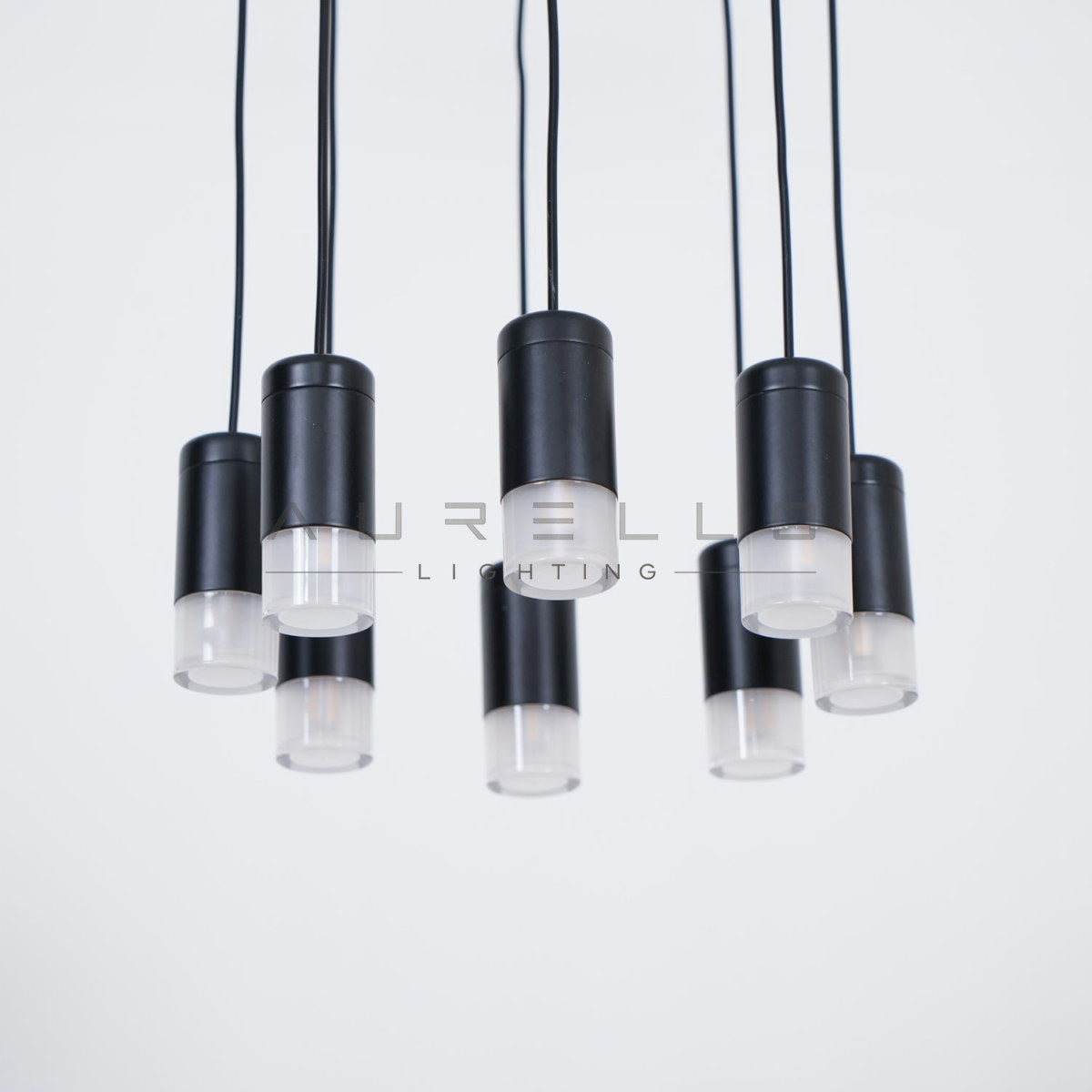

3W integrated LED terminals
Each terminal is a sealed cylindrical LED — no bulbs to source. Total output scales with light count (60W / 129W / 138W).
8 size + drop combinations
20, 43, or 46 lights · drops from 43″ up to 13 ft · sized to fit standard rooms or grand atriums.

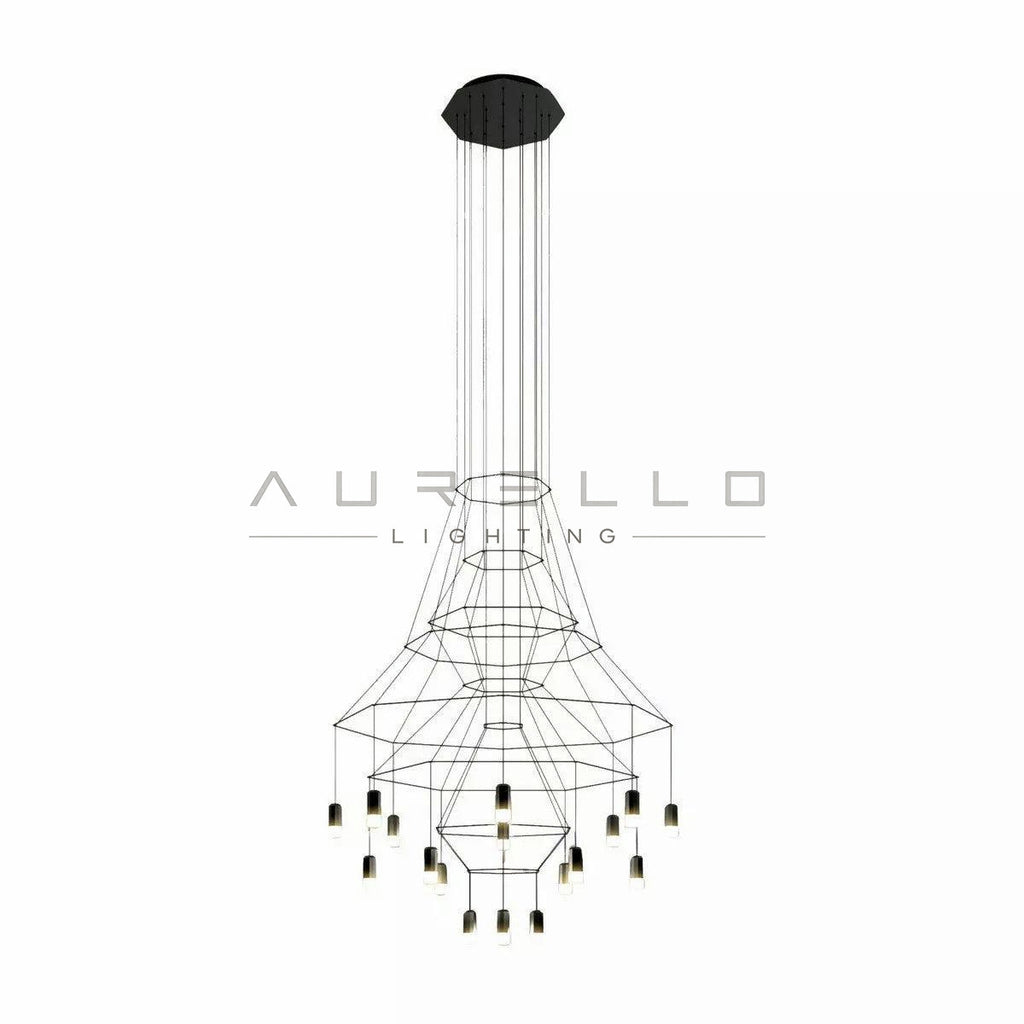

20-Light · for standard ceilings
| Variant | Diameter | Drop | Weight |
|---|---|---|---|
| Standard Drop | Ø47.2″ (120 cm) | 78.7″ (200 cm) | ~13 lbs (6 kg) |
| Long Drop | Ø47.2″ (120 cm) | 110″ (280 cm) | ~13 lbs (6 kg) |

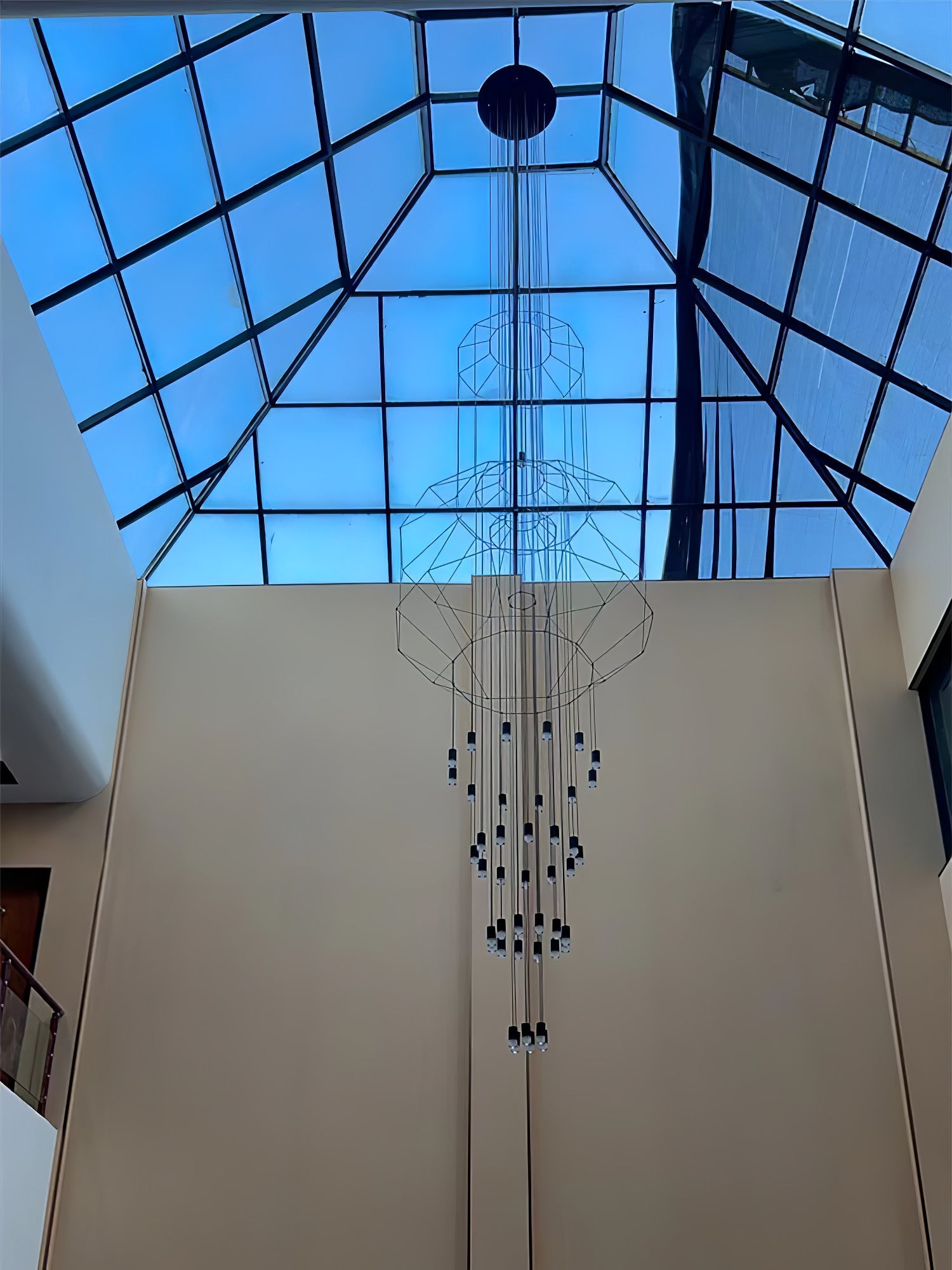

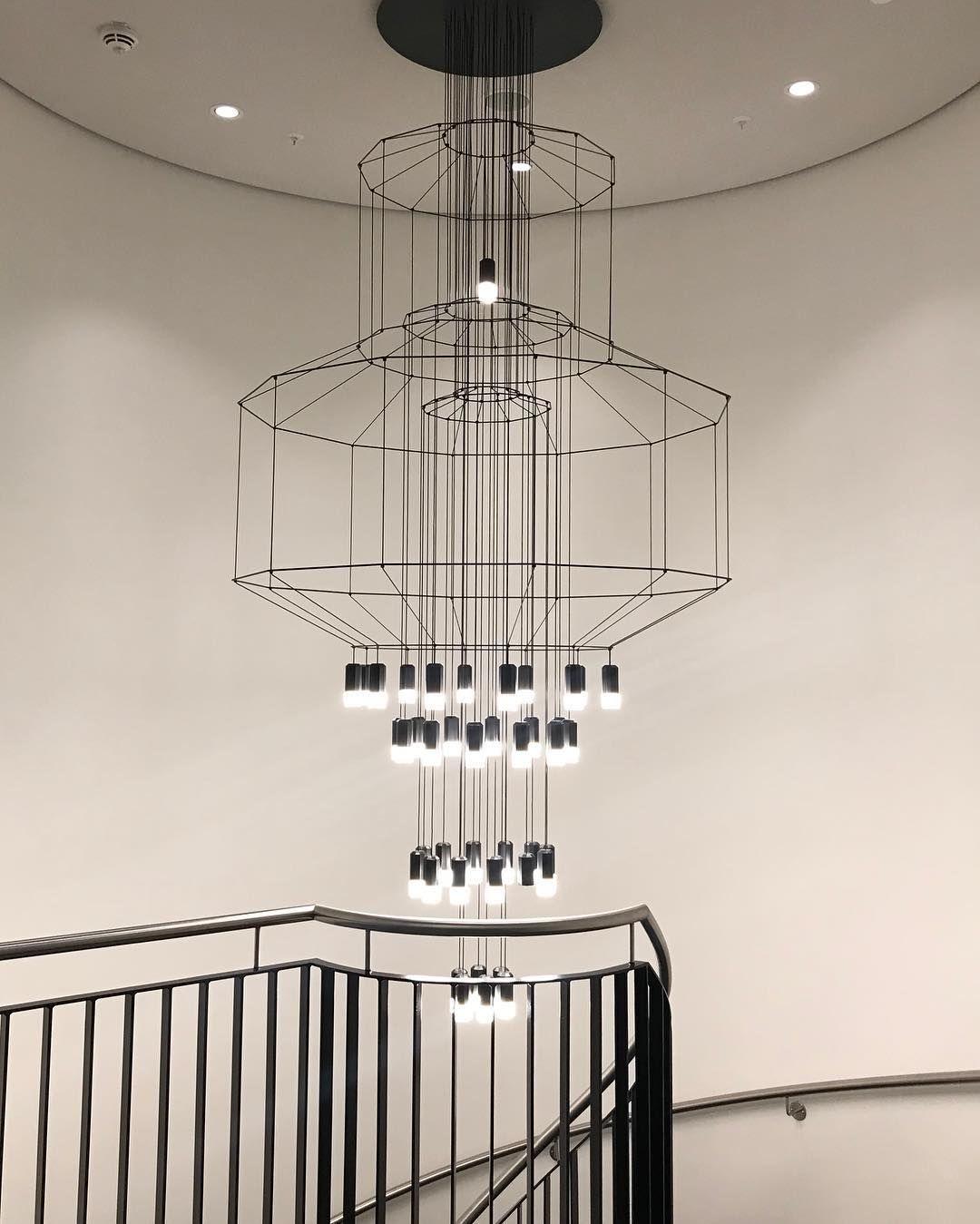

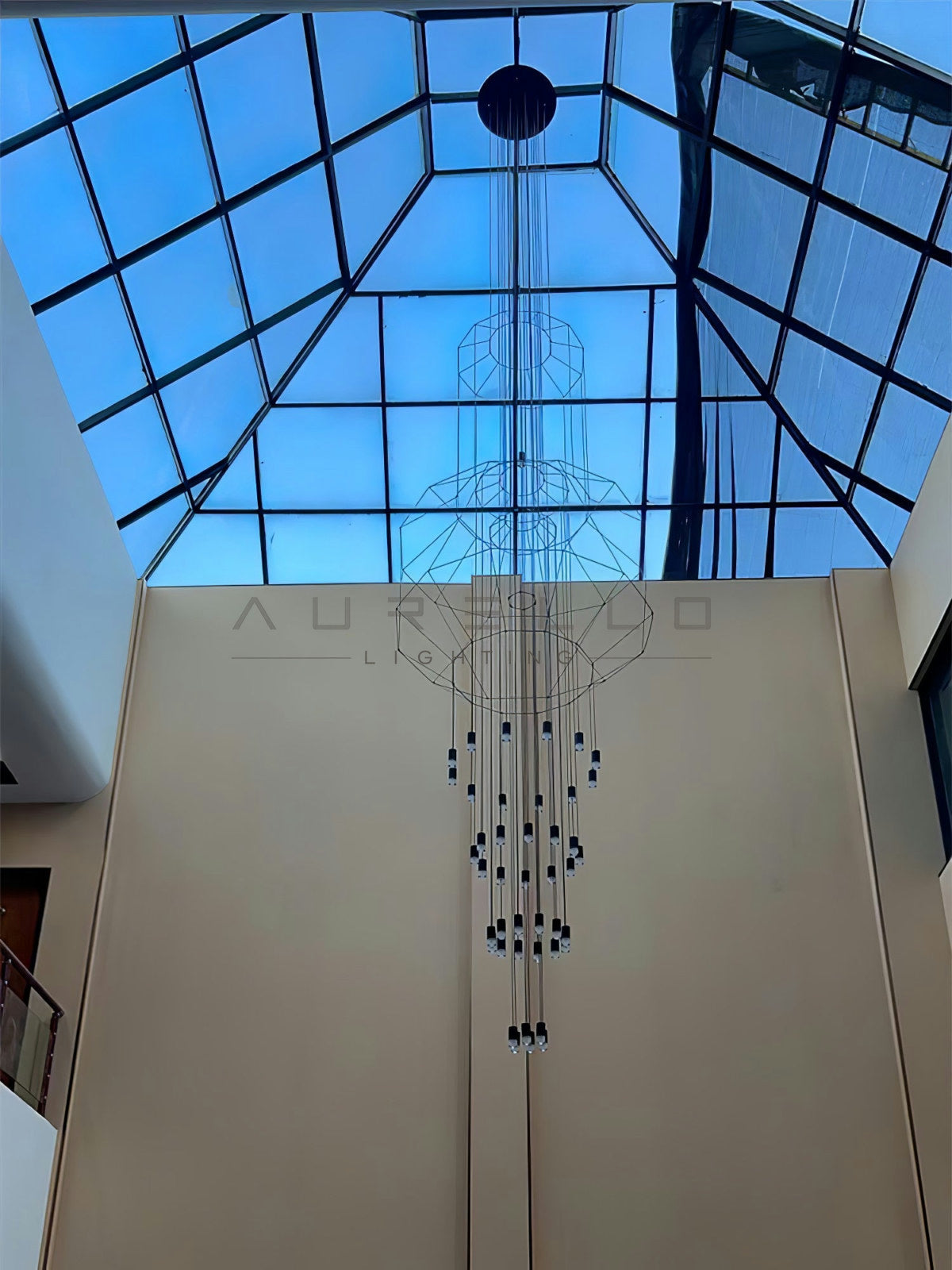

43-Light · for atriums & tall stairwells
| Variant | Diameter | Drop | Weight |
|---|---|---|---|
| Compact 9.8 ft | Ø35.4″ (90 cm) | 118″ (300 cm) | ~42 lbs (19 kg) |
| Tall 13 ft | Ø35.4″ (90 cm) | 157.5″ (400 cm) | ~42 lbs (19 kg) |
| Wide-Tall 13 ft | Ø59″ (150 cm) | 157.5″ (400 cm) | ~42 lbs (19 kg) |

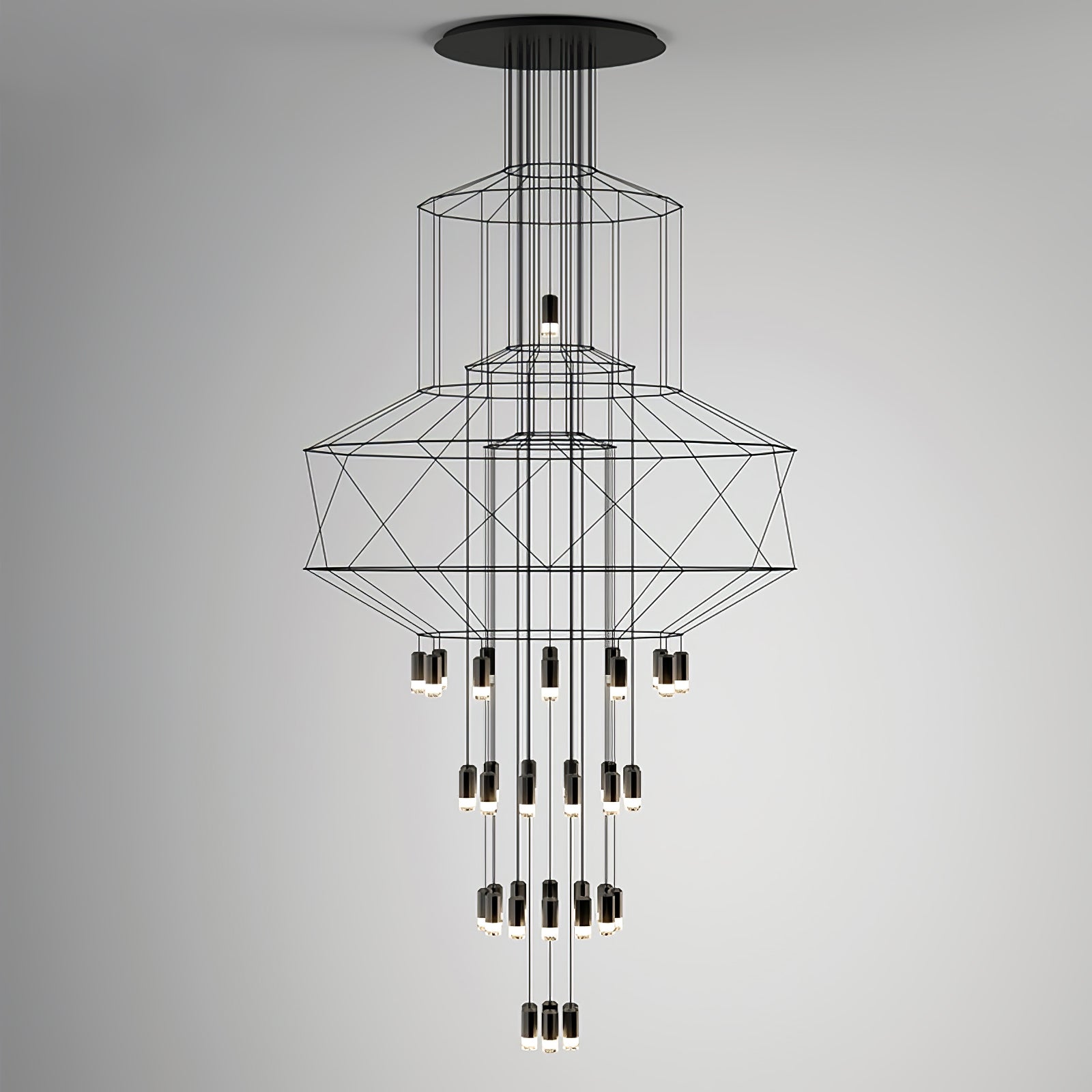

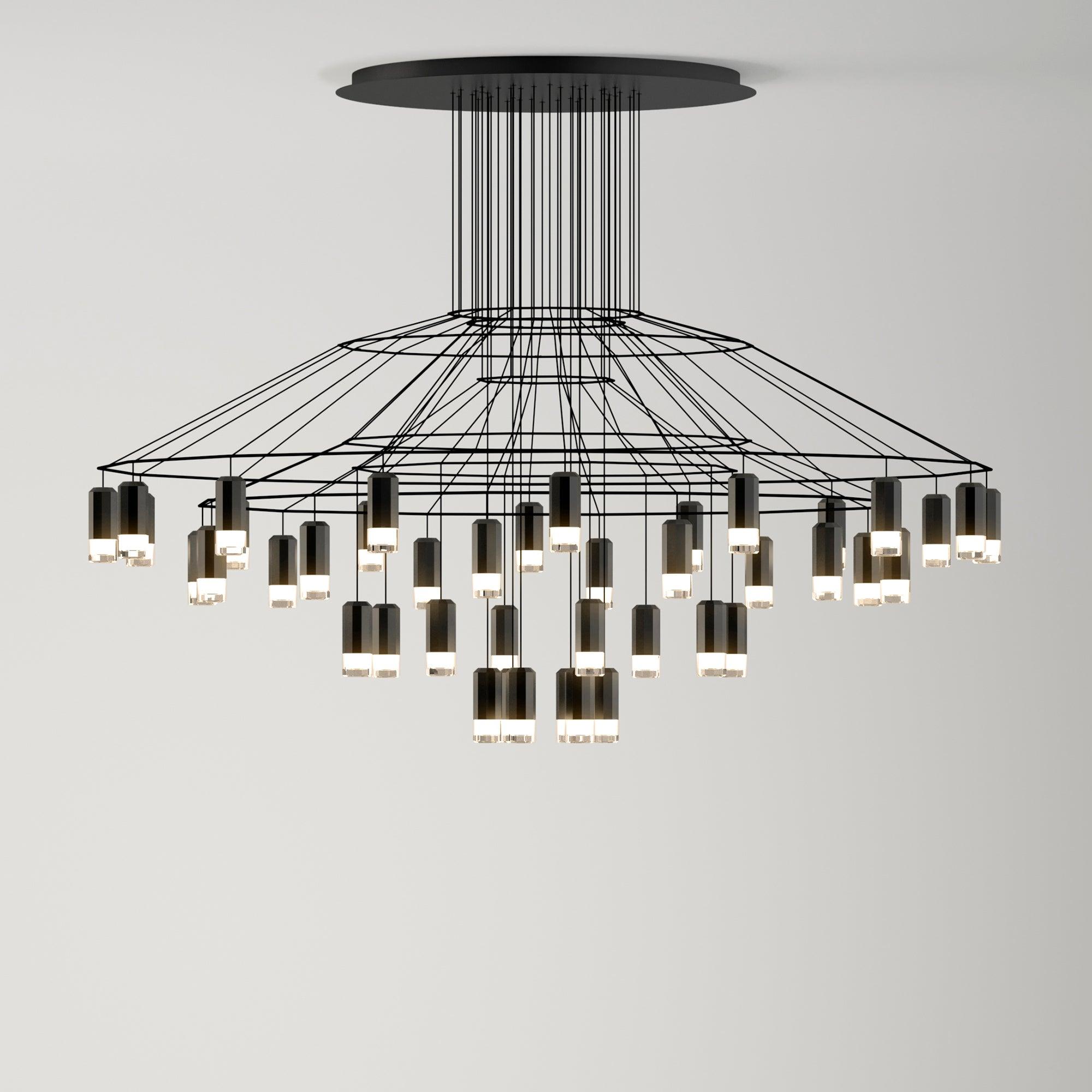

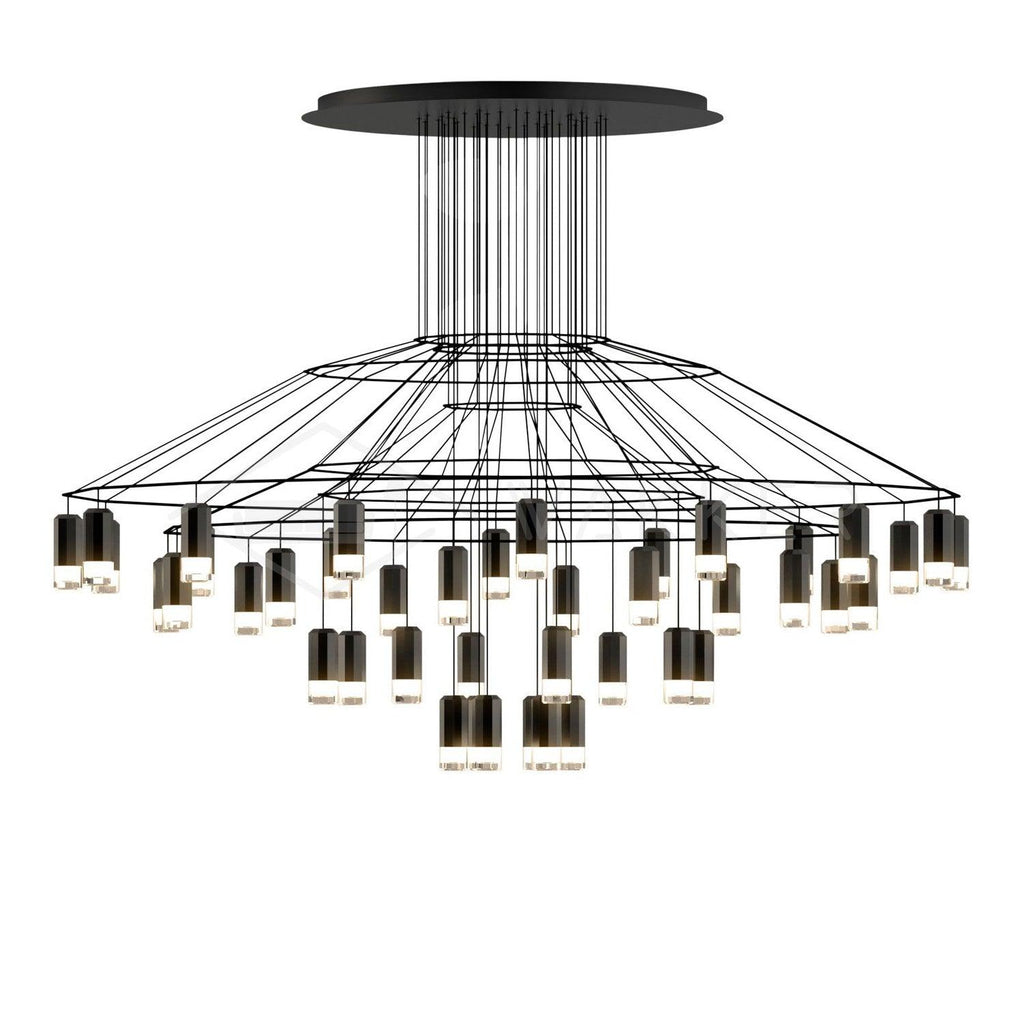

46-Light · for grand halls & commercial
| Variant | Diameter | Drop | Weight |
|---|---|---|---|
| Compact 3.6 ft | Ø35.4″ (90 cm) | 43.3″ (110 cm) | ~51 lbs (23 kg) |
| Medium 6.6 ft | Ø35.4″ (90 cm) | 78.7″ (200 cm) | ~51 lbs (23 kg) |
| Tall 9.2 ft | Ø35.4″ (90 cm) | 110.2″ (280 cm) | ~51 lbs (23 kg) |
| Material | Powder-coated metal wire frame · plastic LED terminal housings · clear acrylic lenses |
| Light source | Integrated 3W LED per terminal — no bulb replacement (G9 base internal) |
| Total wattage | 20-light: 60W · 43-light: 129W · 46-light: 138W |
| LED lifespan | 30,000+ hours |
| Voltage | AC 110–240V (universal) |
| Mounting | Hardwired ceiling mount with reinforced canopy (Ø19.7″) |
| Frame finish | Matte black powder-coated |
| Cable length | 118″ (300 cm) on the longest standard variant; longer drops on request |
| Control | Compatible with TRIAC dimmers and standard wall switches (not included) |
| Certification | Certified for North America, EU, Australia, and Saudi Arabia |
| Warranty | 3 years on LED terminals · 2 years on frame and wiring |
- Required: reinforced ceiling support (concrete beam, steel structural member, or engineered residential reinforcement). Drywall alone will not hold the 46-light at 51 lbs over its lifetime.
- Required: licensed electrician + scaffold or lift. Two-installer minimum. Plan 4–6 hours for the install of medium and large configurations.

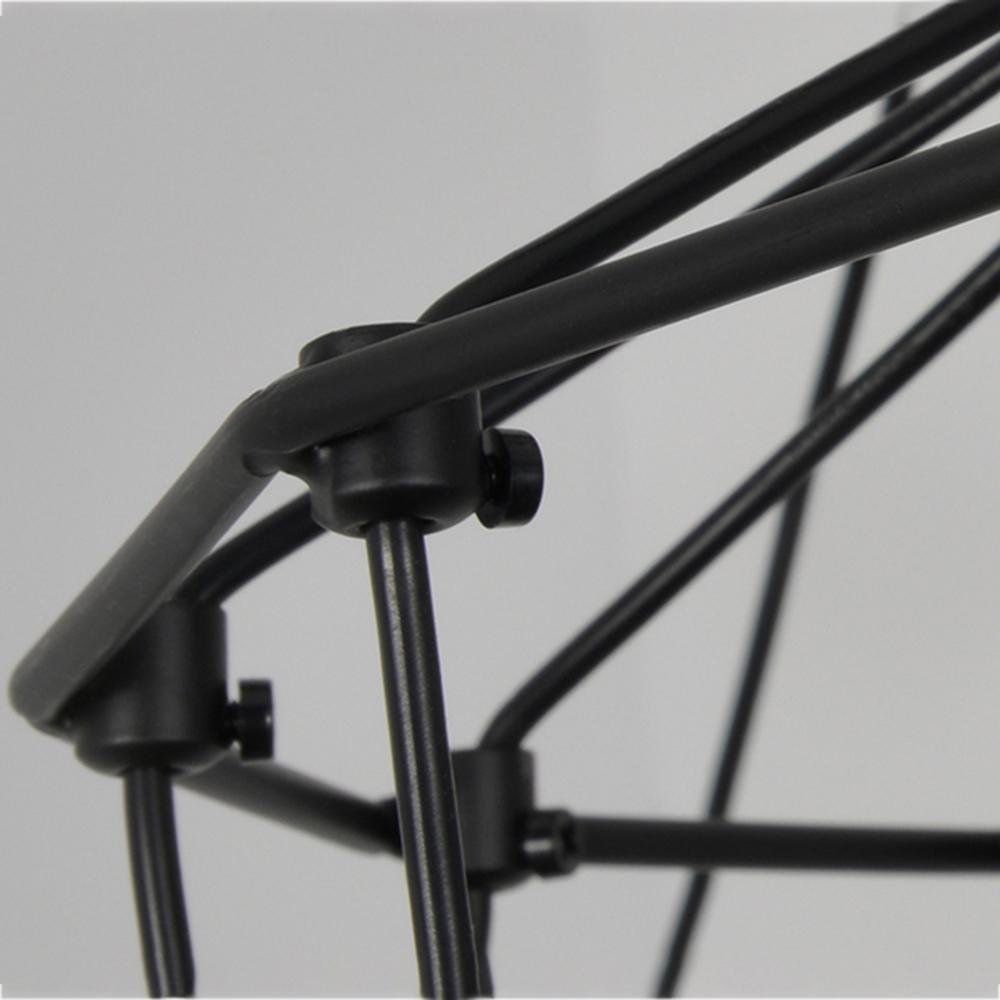

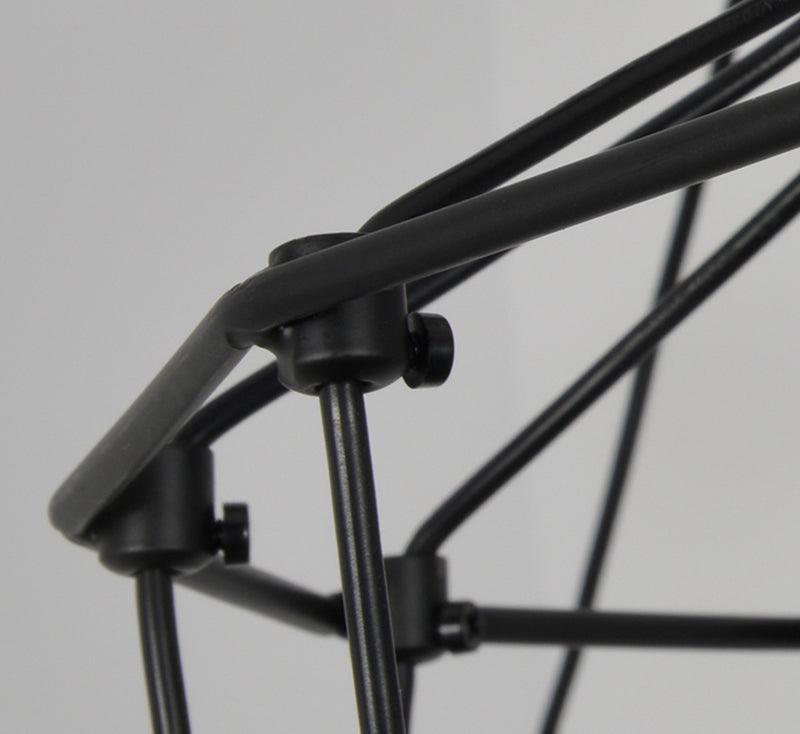

- The wire frame ships in segments and assembles on-site — a step-by-step installation guide is provided. Do not over-tighten frame joints.
- LED terminals are pre-wired into the frame and individually replaceable from below — failed LED terminals can be swapped without removing the whole chandelier.
- Indoor dry locations only — not suitable for outdoor or high-humidity environments.
Which configuration fits my space?

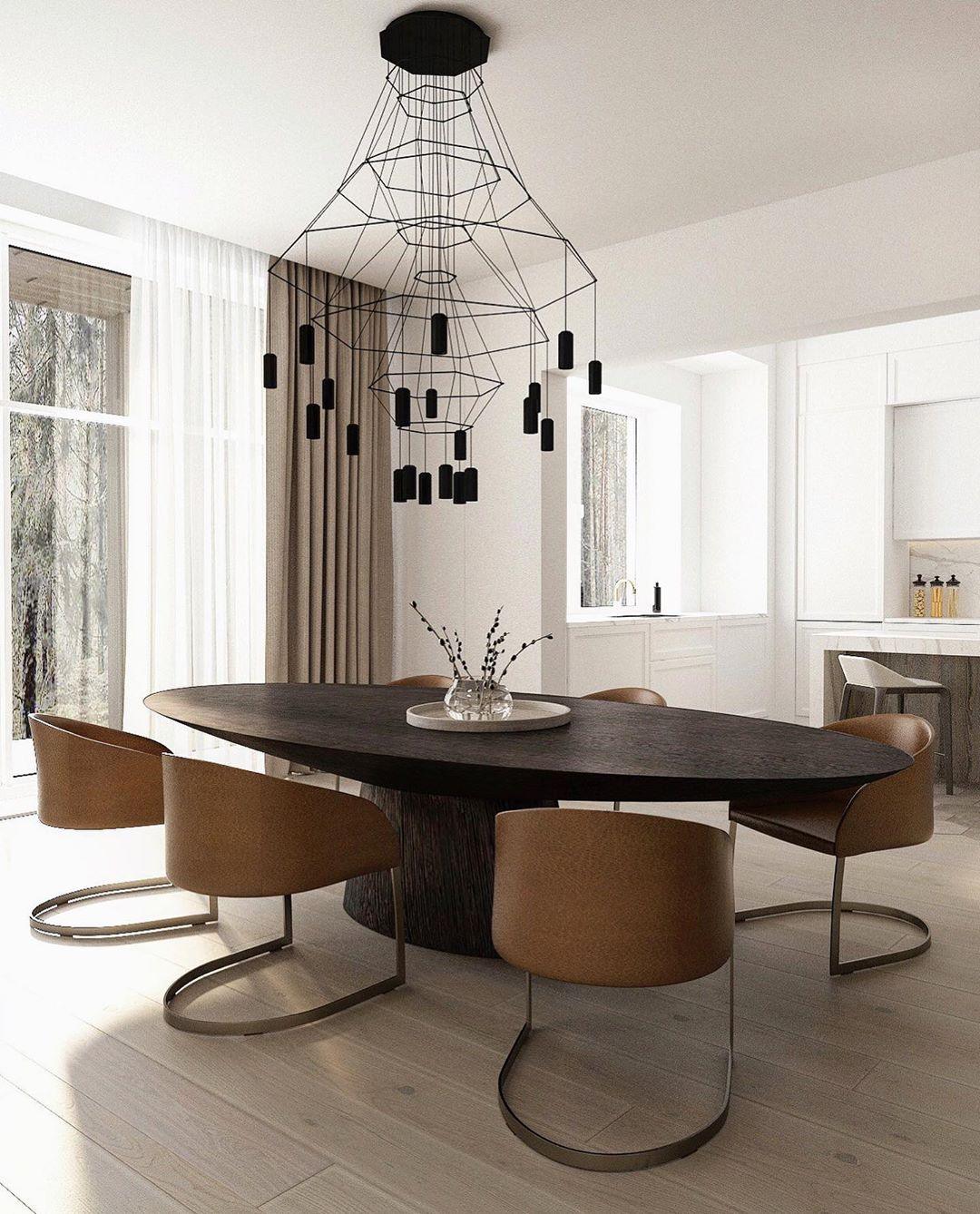

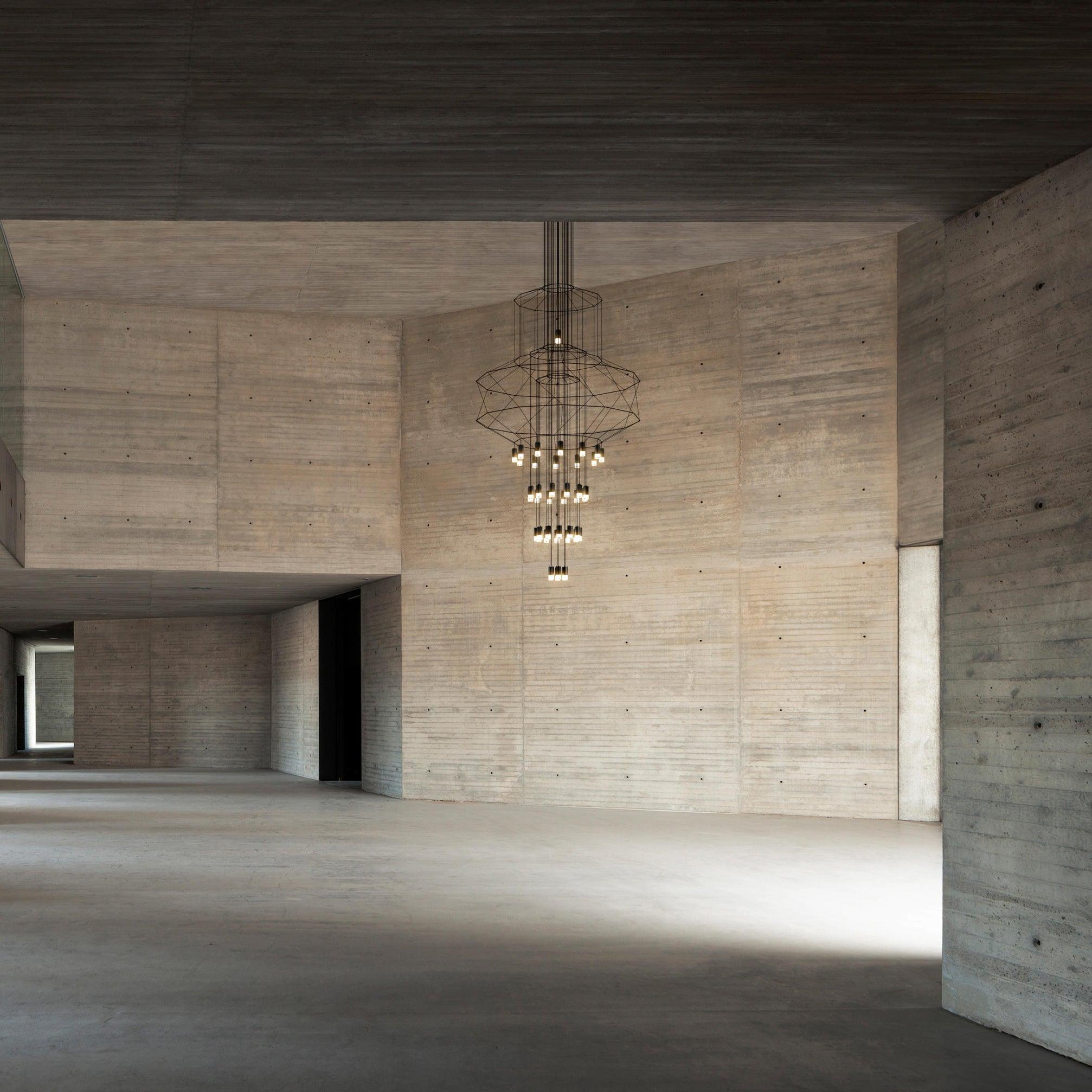

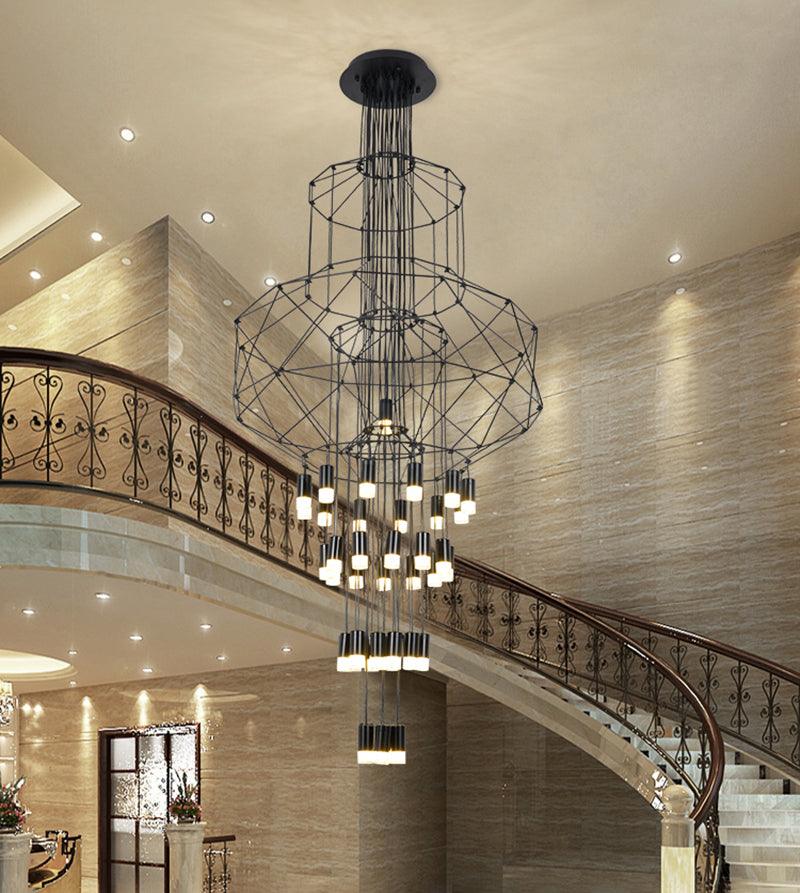

By ceiling height: 9 ft (residential dining) → 20-light Standard or 46-light Compact 3.6 ft. 11–12 ft (foyer, large dining) → 20-light Long Drop or 46-light Medium. 14+ ft atrium / two-story foyer → 43-light Tall or 46-light Tall. 16+ ft commercial atrium → 43-light Wide-Tall (Ø59″). Email info@vakkerlighting.com with your ceiling height and room photos for a recommendation.
Can I install this myself?
We strongly recommend against DIY for the 43-light and 46-light configurations — they weigh 42–51 lbs and require reinforced mounting, structural assessment, and 4–6 hours of two-person assembly with electrical work. The 20-light at 13 lbs is more manageable for a qualified DIYer with electrical experience, but a licensed electrician is still recommended. Improper installation risks fall hazards.
If an LED terminal fails, can I replace just that one?
Yes. Each cylindrical LED terminal connects to the frame via a sealed quick-disconnect — a failed terminal can be swapped from below without removing the chandelier. We keep replacement terminals in stock for 5 years after your order. Within 3-year LED warranty, replacements are free.
How bright is it total?
20-light: 60W LED ≈ 4,800 lumens (equivalent to ~480W incandescent). 43-light: 129W ≈ 10,300 lumens. 46-light: 138W ≈ 11,000 lumens. Use TRIAC dimmer to scale brightness for the room. At full output, the 46-light is appropriate for spaces of 600+ sq ft with 12+ ft ceilings.
What's the warranty?
3-year warranty on the LED terminals (rated 30,000+ hours, ~27 years at 3 hr/day). 2-year warranty on the wire frame, canopy, mounting hardware, and wiring. Replacement LED terminals available paid-service beyond warranty. Email info@vakkerlighting.com with photos for any claim.
